NEMA FR4 Sheet: High-Performance Insulation for Electronics and Industry

J&Q New Composite Materials Company is a leading manufacturer and supplier of NEMA FR4 sheets, offering superior quality and reliability for your electrical insulation needs. Our items are designed to meet the most elevated industry guidelines, giving fabulous fire resistance, electrical separator, and mechanical quality. With state-of-the-art generation offices and over 20 a long time of encounter, we convey top-tier items to meet the requesting prerequisites of gadgets, aviation, and mechanical applications around the world.

Product Description

Our products are premium-grade, glass-reinforced epoxy laminates designed for exceptional performance in electrical and electronic applications. These versatile sheets offer:

• Outstanding electrical insulation properties
• High heat resistance and dimensional stability
• Excellent mechanical strength and durability
• Low moisture absorption
• Superior machinability for precision fabrication

Technical Specifications

• Material: Glass fabric reinforced epoxy resin
• Standard Thickness: 0.2mm to 100mm
• Standard Sheet Size: 1000mm x 2000mm, 1220mm x 2440mm (custom sizes available)

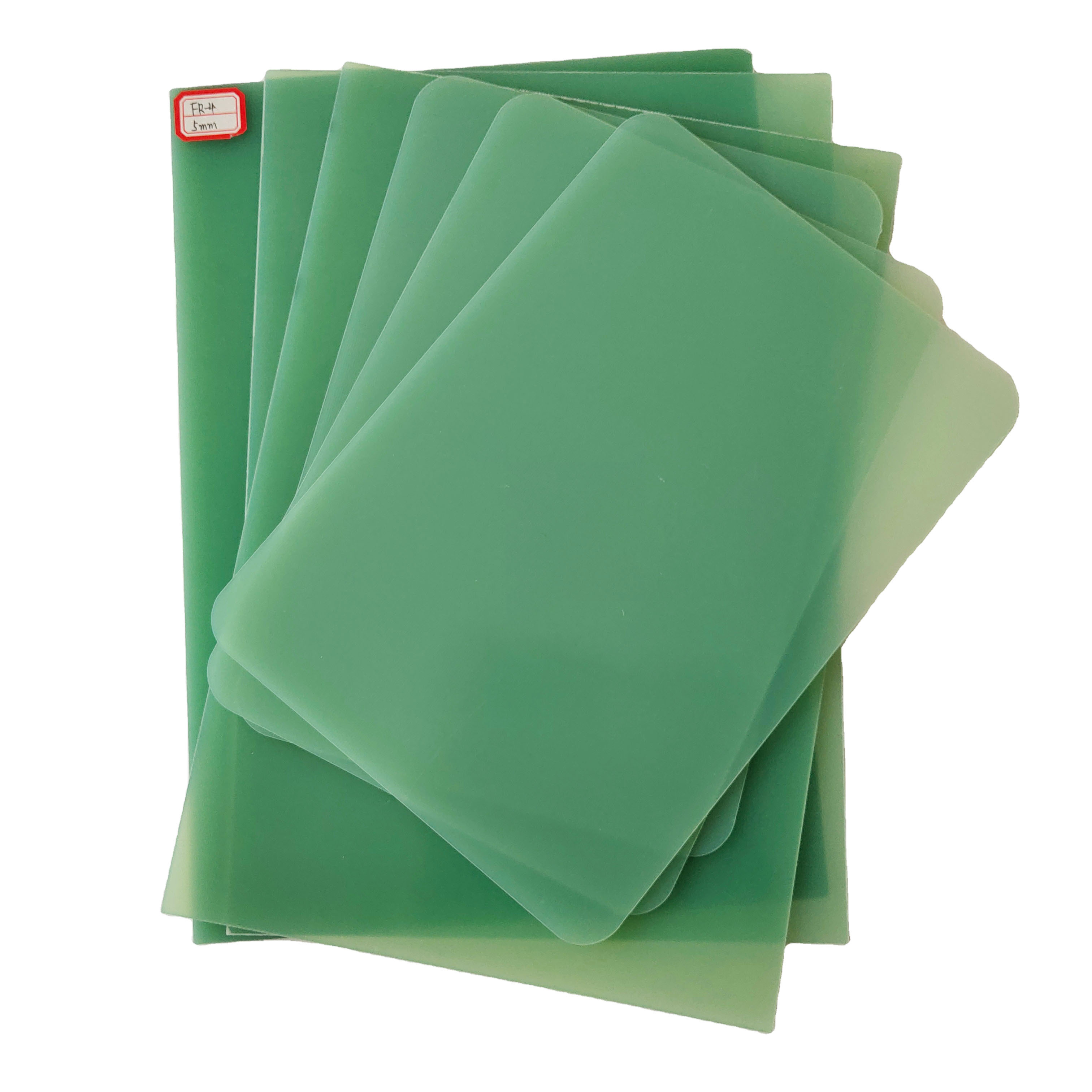

• Color: Light green (natural)
• Flame Retardancy: UL94 V-0
• Glass Transition Temperature (Tg): 130°C - 180°C
• Dielectric Constant (1MHz): 4.8
• Dielectric Strength: >40 kV/mm
• Water Absorption: < 0.1%
• Flexural Strength: > 480 MPa
• Tensile Strength: > 310 MPa

Available Colors

While our standard products come in light green, we offer custom color options to meet your specific requirements. Please contact our sales team for more information on available colors and minimum order quantities.

Applications

NEMA FR4 sheets are widely used in various industries due to their exceptional properties:

1. Electronics:
   • Printed Circuit Boards (PCBs)
   • Terminal boards
   • Insulating washers and spacers
2. Electrical:
   • Transformer and motor insulation
   • Switch gear components
   • Electrical enclosures
3. Aerospace:
   • Aircraft interior panels
   • Structural components
   • Radomes
4. Industrial:
   • Machine guards and shields
   • Gaskets and seals
   • Wear plates
5. Automotive:
   • Electrical connectors
   • Sensor housings
   • Underhood components

How to Use?

1. Cutting: The products can be easily cut using standard woodworking tools, such as circular saws or routers. Always use sharp, carbide-tipped blades for clean cuts.
2. Drilling: Use high-speed steel or carbide-tipped drill bits. Maintain moderate pressure and speed to prevent overheating.
3. Machining: FR4 can be milled, turned, and shaped using standard metalworking equipment. Use coolants to prevent heat buildup during machining.
4. Bonding: For assembly, use epoxy adhesives compatible with FR4 material. Ensure surfaces are clean and properly prepared before bonding.
5. Finishing: Sand edges smooth if needed. FR4 can be painted or silk-screened for labeling or aesthetic purposes.

Always follow proper safety precautions, including wearing appropriate personal protective equipment when working with the products.

Why Choose Us?

1. Quality Assurance: Our products are manufactured in ISO 9001 certified facilities, ensuring consistent high quality and reliability.
2. Expertise: With over two decades of experience in insulation materials, we offer unparalleled knowledge and support.
3. Customization: We can tailor our products to meet your specific requirements, including custom sizes, thicknesses, and properties.
4. Competitive Pricing: Our efficient production processes allow us to offer competitive prices without compromising on quality.
5. Global Reach: We export to numerous countries, including Russia, Southeast Asia, the United States, and Europe, backed by our own logistics company for seamless delivery.
6. Technical Support: Our team of experts is always ready to assist you with material selection and application guidance.

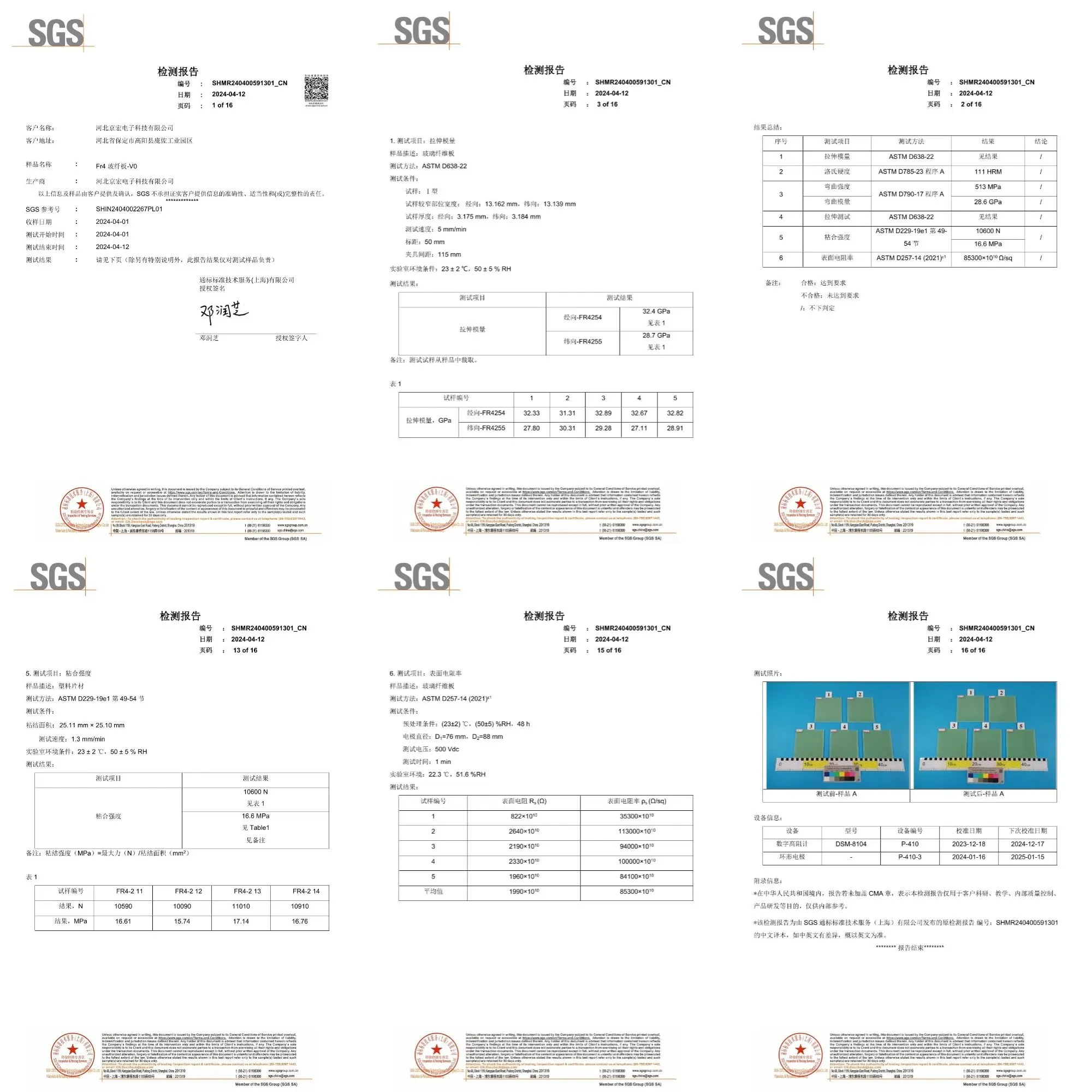

Qualification Certification

​​​​​​​

Transaction Feedback

"J&Q's products have consistently met our stringent quality requirements. Their responsive customer service and on-time delivery make them a valued supplier for our PCB production." - John D., Procurement Manager, Electronics Manufacturer

"We've been using J&Q's FR4 sheets for our aerospace components for over five years. The material performance and reliability have been exceptional." - Sarah L., Materials Engineer, Aerospace Company

Exhibition

FAQ

Q: What is the minimum order quantity for the products?
A: Our standard minimum order quantity is 100 sheets. However, we can accommodate smaller orders for specialty or custom products. Please contact our sales team for details.

Q: Can you provide samples of your products?
A: Yes, we offer sample kits for testing and evaluation. Please reach out to our sales department to request samples.

Q: What is the lead time for the product orders?
A: Standard lead times are 2-3 weeks for stock items. Custom orders may require 4-6 weeks. We also offer expedited production for urgent needs.

Q: Are your products halogen-free?
A: We offer both standard and halogen-free versions of our FR4 sheets. Please specify your requirements when ordering.

Q: How do you ensure consistent quality across batches?
A: Our rigorous quality control process includes regular testing and inspection at every stage of production, ensuring consistent properties and performance across all batches.

Contact Us

Ready to experience the superior quality of our products? Contact our knowledgeable sales team today to discuss your requirements and place an order.

Email: info@jhd-material.com

Let J&Q New Composite Materials Company be your trusted partner for high-performance NEMA FR4 sheets and other advanced insulation materials. We look forward to supporting your project's success!
