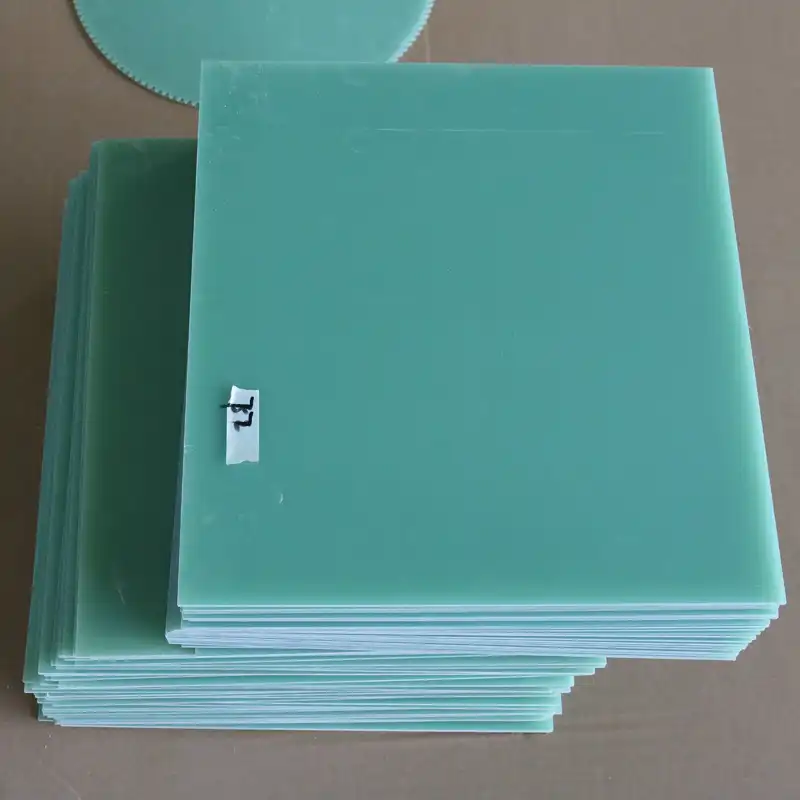

FR4 Sheet Thickness Guide for Electronics Manufacturing

FR4 sheet thickness plays a crucial role in electronics manufacturing, directly impacting the performance, durability, and functionality of printed circuit boards (PCBs). This comprehensive guide explores the intricate relationship between FR4 sheet thickness and electronic component design, offering invaluable insights for engineers and manufacturers. From understanding how thickness affects electrical and mechanical properties to selecting the optimal thickness for production efficiency, this article delves into the nuances of FR4 sheet selection. By mastering the art of choosing the right FR4 thickness, you'll be well-equipped to create high-performance, reliable electronic products that meet the demanding standards of today's industry.

How Does Thickness Affect Electrical and Mechanical Performance?

Electrical Properties and Thickness Correlation

The thickness of FR4 sheets significantly influences their electrical properties. As thickness increases, the dielectric strength generally improves, offering better insulation between conductive layers. However, this relationship isn't always linear. Thicker FR4 sheets may exhibit lower capacitance, which can be advantageous in high-frequency applications where signal integrity is paramount. Conversely, thinner sheets might be preferred in designs requiring higher capacitance or controlled impedance.

Mechanical Strength and Durability Considerations

FR4 sheet thickness directly correlates with mechanical strength and durability. Thicker sheets provide enhanced structural integrity, making them more resistant to bending, warping, and physical stress. This becomes particularly important in applications where the PCB may be subjected to vibration, impact, or thermal cycling. However, thicker sheets also add weight, which may be undesirable in portable or aerospace applications where every gram counts.

Thermal Management and Heat Dissipation

The thickness of FR4 sheets affects their thermal properties and heat dissipation capabilities. Thicker sheets generally offer better thermal insulation, which can be beneficial in protecting sensitive components from external heat sources. However, they may also impede heat dissipation from power-hungry components on the board. Engineers must carefully balance these factors, especially in designs with high power density or those operating in extreme temperature environments.

Common Thickness Standards in PCB and Component Design

Industry-Standard FR4 Thicknesses

The electronics industry has adopted several standard FR4 sheet thicknesses to streamline manufacturing processes and ensure compatibility across different suppliers. Common thicknesses include 0.031 inches (0.8 mm), 0.062 inches (1.6 mm), and 0.093 inches (2.4 mm). These standards allow for consistency in component design and assembly processes. However, custom thicknesses are also available for specialized applications that require specific performance characteristics.

Thickness Considerations for Multi-Layer PCBs

In multi-layer PCB designs, the overall board thickness is a cumulative result of individual FR4 layer thicknesses and copper layers. Engineers must carefully consider the stack-up design, balancing the need for signal integrity, impedance control, and overall board thickness. Thinner FR4 layers may be used in high-density interconnect (HDI) designs to achieve more layers within a given thickness constraint, while thicker layers might be employed for power distribution or enhanced structural integrity.

Component Compatibility and Mounting Requirements

The choice of FR4 thickness can impact component compatibility and mounting requirements. For through-hole components, the board thickness must accommodate the component leads while ensuring proper solder joint formation. Surface-mount technology (SMT) components may have specific requirements for pad design and solder paste thickness, which can be influenced by the underlying FR4 thickness. Additionally, certain connectors and edge-card interfaces may necessitate specific board thicknesses for proper mating and mechanical stability.

Selecting the Right FR4 Thickness for Production Efficiency

Balancing Cost and Performance

Choosing the optimal FR4 sheet thickness involves a delicate balance between cost and performance. Thicker sheets generally come at a higher material cost and may require more complex manufacturing processes. However, they can offer enhanced durability and electrical performance, potentially reducing long-term maintenance and replacement costs. Thinner sheets may be more cost-effective initially but could lead to increased failure rates in demanding applications. Manufacturers must carefully weigh these factors against the specific requirements of their product and target market.

Manufacturing Considerations and Tolerances

The selected FR4 thickness impacts various aspects of the manufacturing process, including drilling, etching, and lamination. Thicker boards may require specialized equipment or techniques to achieve tight tolerances and high-quality vias. Thinner boards, while easier to process in some respects, may be more prone to warpage or damage during handling. Understanding the capabilities and limitations of your manufacturing partners is crucial when selecting FR4 thickness, as it can significantly affect production yields and overall efficiency.

Optimizing for Specific Application Requirements

Different applications have unique requirements that influence the ideal FR4 thickness. High-frequency RF designs may benefit from thinner substrates to minimize signal loss and improve impedance control. Automotive or industrial applications might prioritize thicker, more robust boards to withstand harsh environments and mechanical stress. Flexible or rigid-flex PCBs introduce additional considerations, as the FR4 thickness must be compatible with the flexible portions of the design. By carefully analyzing the specific needs of your application, you can select an FR4 thickness that optimizes performance, reliability, and manufacturability.

Conclusion

Selecting the appropriate FR4 sheet thickness is a critical decision in electronics manufacturing that impacts electrical performance, mechanical durability, and production efficiency. By understanding the intricate relationships between thickness and various design parameters, engineers can make informed choices that optimize their PCB designs for specific applications. As the electronics industry continues to evolve, staying informed about FR4 thickness considerations will remain essential for creating innovative, high-performance products that meet the demands of tomorrow's technologies.

FAQs

What is the most common FR4 sheet thickness for PCBs?

The most common FR4 sheet thickness for PCBs is 1.6 mm (0.062 inches).

How does FR4 thickness affect signal integrity?

Thicker FR4 sheets generally provide better signal integrity due to reduced crosstalk and improved impedance control.

Can FR4 thickness impact the cost of PCB manufacturing?

Yes, thicker FR4 sheets typically increase material costs and may require more complex manufacturing processes, potentially raising overall production costs.
