Heat Resistance Unveiled: Maximum Operating Temperatures for G10, FR4, and Phenolic

Defining Continuous and Peak Operating Temperature Ranges

Understanding Continuous Operating Temperatures

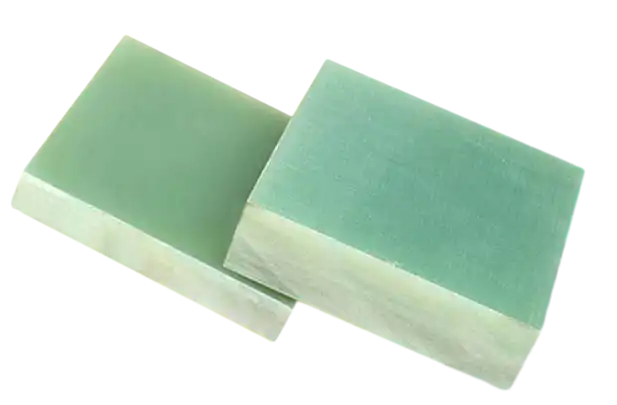

Continuous operating temperature refers to the maximum temperature at which a material can function reliably over an extended period without significant degradation. For G10 sheet, this temperature typically ranges from 130°C to 140°C (266°F to 284°F). FR4 sheet, being similar in composition to G10, shares a comparable continuous operating temperature range. Phenolic sheet, depending on the specific grade, can have a continuous operating temperature of up to 200°C (392°F), making it suitable for more demanding thermal environments.

Exploring Peak Temperature Tolerances

Peak temperature tolerance represents the maximum temperature a material can withstand for short durations without permanent damage. G10 and FR4 sheets can generally tolerate brief exposures to temperatures around 180°C to 200°C (356°F to 392°F). Phenolic sheets, owing to their superior heat resistance, can withstand even higher peak temperatures, sometimes exceeding 250°C (482°F) for short periods. However, it's crucial to note that repeated exposure to peak temperatures can cumulatively affect the material's properties and lifespan.

Factors Influencing Temperature Resistance

Several factors can influence the temperature resistance of these materials. The specific resin system used, the glass fiber content, and any additives or fillers can all impact heat resistance. Additionally, the thickness of the sheet and the specific application requirements play roles in determining the practical temperature limits. Environmental factors such as humidity, chemical exposure, and mechanical stress can also affect a material's ability to withstand high temperatures.

How Does the Glass Transition Temperature (Tg) Compare?

Glass Transition Temperature Explained

The glass transition temperature (Tg) is a critical parameter for understanding the thermal behavior of polymer-based materials like G10, FR4, and phenolic sheets. It represents the temperature at which the material transitions from a rigid, glassy state to a more flexible, rubbery state. This transition can significantly affect the material's mechanical and electrical properties. For insulating sheets, a higher Tg generally indicates better performance at elevated temperatures.

Tg Values for G10, FR4, and Phenolic Sheets

G10 and FR4 sheets typically have Tg values ranging from 130°C to 180°C (266°F to 356°F), depending on the specific formulation. Some high-performance grades can achieve Tg values up to 200°C (392°F). Phenolic sheets, due to their different chemical structure, often have higher Tg values, sometimes exceeding 220°C (428°F). The higher Tg of phenolic materials contributes to their superior heat resistance and stability at elevated temperatures.

Impact of Tg on Material Performance

The Tg significantly influences a material's behavior under thermal stress. As the operating temperature approaches and exceeds the Tg, materials like G10 and FR4 sheets may experience changes in their dimensional stability, electrical properties, and mechanical strength. Phenolic sheets, with their higher Tg, tend to maintain their properties more consistently at elevated temperatures. Understanding these differences is crucial for selecting the appropriate material for high-temperature applications.

Selecting the Right Material Based on Thermal Requirements

Assessing Application-Specific Needs

Choosing between G10 sheet, FR4 sheet, and phenolic sheet for high-temperature applications requires a careful assessment of the specific thermal requirements. Consider factors such as the maximum continuous operating temperature, potential temperature spikes, thermal cycling, and the duration of exposure to elevated temperatures. For applications with moderate temperature requirements up to about 130°C (266°F), G10 or FR4 sheets may be suitable. For more demanding thermal environments, particularly those approaching or exceeding 200°C (392°F), phenolic sheets might be the preferred choice.

Balancing Thermal Performance with Other Properties

While temperature resistance is crucial, it's essential to consider other material properties when making a selection. G10 and FR4 sheets offer excellent electrical insulation and mechanical strength, making them ideal for many electrical and structural applications. Phenolic sheets, while excelling in heat resistance, may have different mechanical or electrical characteristics. Evaluate factors such as dielectric strength, moisture absorption, chemical resistance, and machinability alongside thermal performance to ensure the chosen material meets all application requirements.

Cost-Effectiveness and Long-Term Reliability

The cost-effectiveness of each material should be weighed against its performance and longevity in high-temperature environments. While G10 and FR4 sheets may be more economical for moderate temperature applications, the superior heat resistance of phenolic sheets could provide better long-term value in more demanding thermal conditions. Consider the potential costs associated with material failure or replacement when operating near the thermal limits of a material. In some cases, investing in a higher-performance material upfront can lead to significant cost savings over the life of the application.

Conclusion

Understanding the maximum operating temperatures and thermal characteristics of G10 sheet, FR4 sheet, and phenolic sheet is essential for making informed material selections in high-temperature applications. Each material offers unique advantages, with G10 and FR4 excelling in moderate temperature environments and phenolic sheets providing superior heat resistance for more demanding thermal conditions. By carefully considering continuous and peak operating temperatures, glass transition temperatures, and application-specific requirements, engineers and designers can choose the optimal insulating sheet material to ensure reliable performance and longevity in their high-temperature projects.
