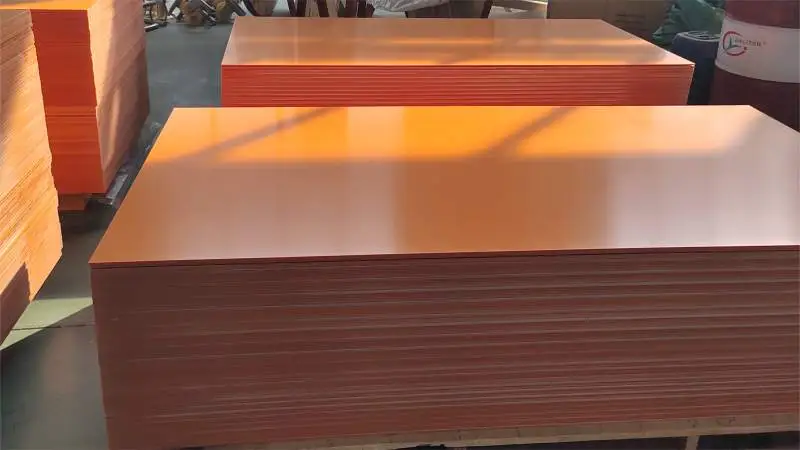

How to Test Bakelite Sheet for Quality Assurance?

Testing Bakelite sheet for quality assurance involves a comprehensive approach that combines visual inspection, physical measurements, and specialized tests. To ensure the sheet meets industry standards, manufacturers and quality control specialists employ various methods. These include evaluating dielectric strength, assessing mechanical properties like tensile strength and impact resistance, and measuring thermal characteristics. Additionally, chemical resistance tests and dimensional stability checks are crucial. By following standardized testing procedures and utilizing advanced equipment, professionals can accurately determine if a Bakelite sheet meets the required specifications for its intended application in electrical insulation, industrial machinery, or other specialized uses.

What Are the Key Electrical and Mechanical Test Standards?

ASTM D149: Standard Test Method for Dielectric Breakdown Voltage and Dielectric Strength of Solid Electrical Insulating Materials at Commercial Power Frequencies

ASTM D149 is a crucial standard for evaluating the dielectric strength of Bakelite sheets. This test measures the voltage at which electrical breakdown occurs through the material. Technicians apply increasing voltage across the sheet until failure, providing insights into its insulating capabilities. The results help determine the sheet's suitability for high-voltage applications and its overall electrical performance.

ISO 178: Plastics - Determination of Flexural Properties

ISO 178 focuses on assessing the flexural properties of Bakelite sheets. This standard outlines procedures for measuring flexural strength and modulus. During testing, sheets undergo controlled bending stress to evaluate their resistance to deformation. The data obtained helps manufacturers ensure consistent mechanical performance across batches and aids in quality control processes.

IEC 60243-1: Electrical Strength of Insulating Materials - Test Methods

IEC 60243-1 provides comprehensive guidelines for testing the electrical strength of insulating materials, including Bakelite sheets. This standard covers various test methods for determining breakdown voltage and dielectric strength. It considers factors such as electrode configuration, environmental conditions, and voltage application rates, ensuring thorough evaluation of a sheet's electrical insulation properties.

Verifying Dielectric Strength and Insulation Resistance

Dielectric Strength Testing Procedures

Dielectric strength testing involves subjecting Bakelite sheets to increasing voltage levels until breakdown occurs. Technicians use specialized equipment to apply voltage across the sheet's thickness. The test typically employs alternating current (AC) at power frequencies. Careful preparation of test specimens, including proper cleaning and conditioning, is essential for accurate results. The voltage at which breakdown occurs is recorded and compared against specified standards to determine the sheet's dielectric strength.

Insulation Resistance Measurement Techniques

Measuring insulation resistance is crucial for assessing a Bakelite sheet's ability to prevent current flow. This test involves applying a known voltage across the material and measuring the resulting current. High-precision megohmeters or insulation testers are commonly used for this purpose. Technicians must consider factors such as temperature, humidity, and surface contamination when conducting these measurements. The resulting resistance values provide insights into the sheet's insulating effectiveness and its suitability for specific applications.

Interpreting Test Results and Quality Benchmarks

Interpreting dielectric strength and insulation resistance test results requires a deep understanding of industry standards and application-specific requirements. Quality control specialists compare obtained values against predetermined benchmarks. They consider factors such as material grade, thickness, and intended use when evaluating results. Trend analysis across multiple batches helps identify potential manufacturing issues or material inconsistencies. Establishing clear acceptance criteria and maintaining detailed test records are essential for effective quality assurance of Bakelite sheets.

How to Assess Impact Resistance and Thermal Tolerance for Compliance?

Impact Resistance Testing Methods

Assessing impact resistance of Bakelite sheets involves subjecting samples to controlled impact forces. The Izod impact test, outlined in ASTM D256, is commonly employed. This test measures the energy absorbed by a notched specimen during fracture. Technicians use a pendulum-type apparatus to strike the sample, recording the energy loss. Another method, the Charpy impact test (ASTM D6110), uses un-notched specimens. These tests provide valuable data on a sheet's ability to withstand sudden loads, crucial for applications in machinery and electrical enclosures.

Thermal Tolerance Evaluation Techniques

Evaluating thermal tolerance of Bakelite sheets involves assessing their behavior under various temperature conditions. The heat deflection temperature (HDT) test, following ASTM D648, measures the temperature at which a standard test bar deflects under a specified load. Thermogravimetric analysis (TGA) provides insights into material decomposition at elevated temperatures. Additionally, coefficient of thermal expansion (CTE) measurements help predict dimensional changes with temperature fluctuations. These tests collectively ensure that Bakelite sheets maintain their structural integrity and electrical properties across their intended operational temperature range.

Compliance Standards and Reporting

Ensuring compliance with industry standards requires meticulous testing and reporting. Quality assurance teams must adhere to specific test protocols outlined in relevant standards such as UL 94 for flammability or IEC 60085 for thermal endurance. Comprehensive test reports should include detailed information on test conditions, sample preparation, and results. Statistical analysis of test data helps identify trends and potential quality issues. Regular calibration of test equipment and participation in inter-laboratory comparison programs further enhance the reliability of compliance assessments for Bakelite sheets.

Conclusion

Rigorous testing of Bakelite sheets is essential for ensuring quality and performance in various applications. By employing standardized methods to assess electrical properties, mechanical strength, and thermal characteristics, manufacturers can consistently produce high-quality materials. Regular quality assurance checks, coupled with detailed documentation and trend analysis, contribute to continuous improvement in Bakelite sheet production. As industries continue to rely on these versatile materials, maintaining stringent testing protocols remains crucial for meeting evolving performance and safety standards.

FAQs

What is the typical dielectric strength of Bakelite sheets?

Bakelite sheets typically have a dielectric strength ranging from 300 to 400 volts per mil (0.001 inch).

How often should Bakelite sheets be tested for quality assurance?

Quality assurance testing frequency depends on production volume and industry standards, but typically occurs for each production batch or at regular intervals.

Can Bakelite sheets be tested for chemical resistance?

Yes, chemical resistance testing involves exposing samples to various solvents and chemicals to assess material degradation and changes in properties.

Expert Bakelite Sheet Testing Services from J&Q

J&Q offers comprehensive Bakelite sheet testing services, leveraging our 20+ years of experience in insulating sheet production and quality control. Our state-of-the-art facilities and expert technicians ensure accurate, reliable results across all critical parameters. From dielectric strength to thermal tolerance, we provide detailed reports to verify your Bakelite sheets meet the highest industry standards. For expert testing and quality assurance, contact us at info@jhd-material.com.

References

ASTM International. (2020). ASTM D149-20: Standard Test Method for Dielectric Breakdown Voltage and Dielectric Strength of Solid Electrical Insulating Materials at Commercial Power Frequencies.

International Organization for Standardization. (2019). ISO 178:2019 Plastics - Determination of flexural properties.

International Electrotechnical Commission. (2013). IEC 60243-1:2013 Electrical strength of insulating materials - Test methods - Part 1: Tests at power frequencies.

ASTM International. (2018). ASTM D256-10(2018): Standard Test Methods for Determining the Izod Pendulum Impact Resistance of Plastics.

ASTM International. (2021). ASTM D648-18: Standard Test Method for Deflection Temperature of Plastics Under Flexural Load in the Edgewise Position.

Underwriters Laboratories. (2021). UL 94: Standard for Tests for Flammability of Plastic Materials for Parts in Devices and Appliances.
