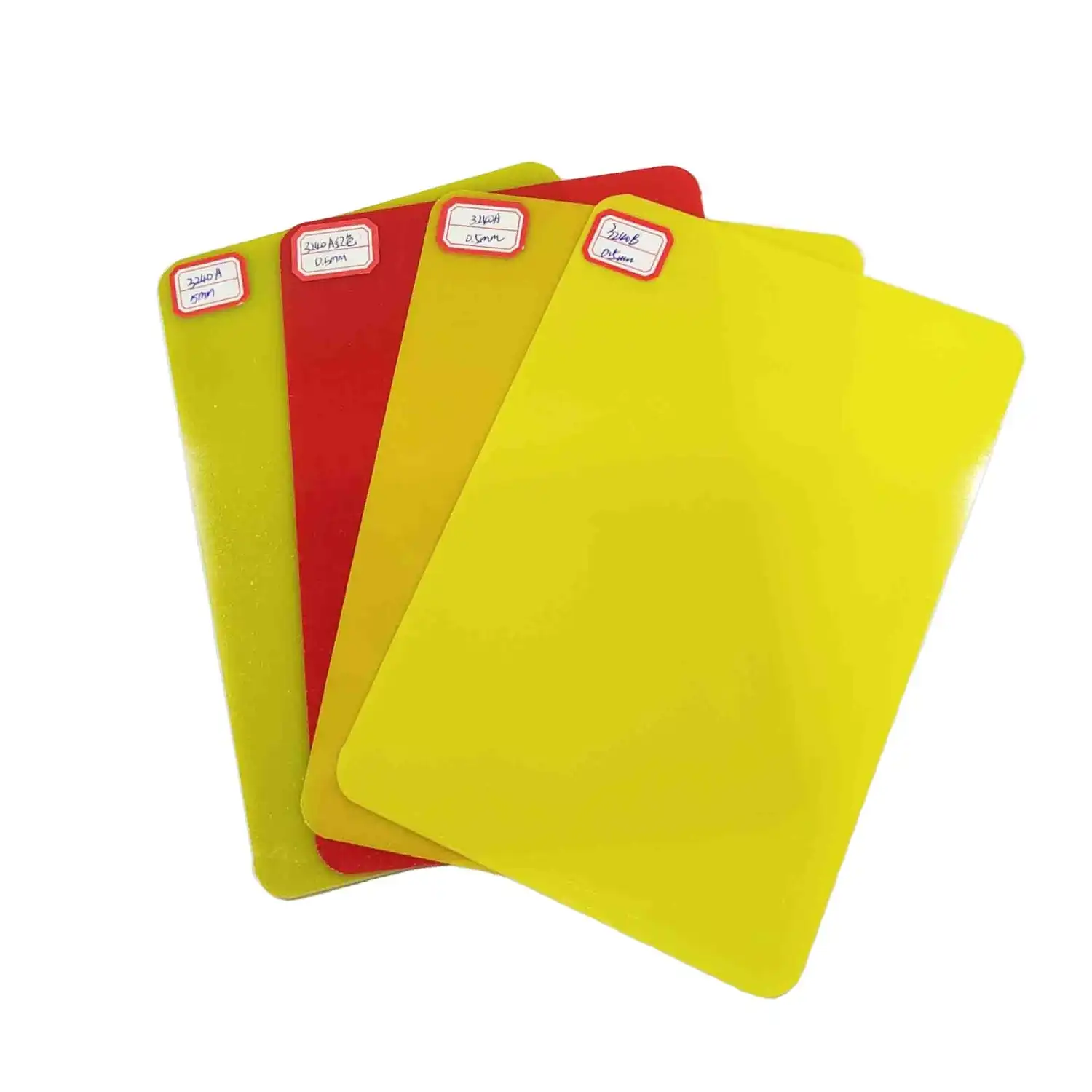

3240 Epoxy Fiberglass Laminated Sheet
Brand: Jinghong
Materials: Epoxy Resin, Phenolic Resin
Nature Color: Yellow,Red
Thickness: 0.3mm --- 100mm
Size: 1020mm*2020mm (Regular)
Packaging: Regular packing, Protect by Pallet
Productivity: 43000 Tons per year
Transportation: Ocean, Land, Air
Payment:T/T
MOQ:500KG
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Product Introduction
Welcome to the world of superior quality with our 3240 Epoxy Fiberglass Laminated Sheet. This high-performance material is specifically designed to meet the rigorous demands of various applications across industries. Renowned for its excellent electrical insulation properties, durability, and resistance to heat, the 3240 epoxy sheet is your go-to solution for reliable and long-lasting performance. As a leading manufacturer under J&Q New Composite Materials Company, we pride ourselves on producing sheets that adhere to the highest standards of quality.

Product Availability
| Specification | Dimensions | Thickness | Annual Output |
|---|---|---|---|
| 3240 Epoxy Resin Glass Fiber Laminated Sheet | 1020mm*2020mm (Regular)Custom sizes available | 0.5mm - 50mm | 43,000 tons |
Technical Data for 3240 Grade A
|
NO |
TEST ITEMS |
UNIT |
TEST RESULT |
TEST METHOD |
|
1 |
Bending Strength Perpendicular to Laminations (A) |
MPa |
484 |
GB/T 1303.4-2009 |
|
2 |
Bending Strength Perpendicular to Laminations (B) |
MPa |
338 |
|
|
3 |
Apparent Bending Elastic Modulus (A) |
MPa |
2.19*104 |
|
|
4 |
Apparent Bending Elastic Modulus (B) |
MPa |
1.99*104 |
|
|
5 |
Compressive Strength Perpendicular to Laminations compressive |
MPa |
401 |
|
|
6 |
Parallel layer shear strength |
MPa |
31.5 |
|
|
7 |
Tensile Strength (A) |
MPa |
368 |
|
|
8 |
Tensile Strength (B) |
MPa |
187 |
|
|
9 |
Parallel Layer Impact Strength (Simply Supported Beam, Gap) |
KJ/m² |
59.4 |
|
|
10 |
Vertical Layer Breakdown Voltage (90℃ + 2℃, 25# transformer oil, 20s step by step boost, φ25mm/φ75mm cylinder electrode system) |
kV/mm |
15.5 |
|
|
11 |
Parallel Layer Breakdown Voltage (90℃ + 2℃, 25# transformer oil, 20s step by step boost, φ130mm/φ130mm flat plate electrode system) |
KV |
90.0 |
|
|
12 |
Relative Permittivity (50Hz) |
- |
4.90 |
|
|
13 |
Insulation Resistance after Soaking |
Ω |
4.1*1013 |
|
|
14 |
Density |
g/cm3 |
1.96 |
|
|
15 |
Flammability |
Grade |
V-0 |
|
|
16 |
Water Absorption |
mg |
39.9 |
|
|
REMARK: 1. NO.5 the sample height is (10.32~10.39) mm; 2. NO.10 the sample thickness is (2.09~2.11) mm; 3. NO.11 the sample size is (100.01~100.07) mm*(25.20~25.31) mm*(5.06~5.20) mm thickness, the electrode spacing is (25.20~25.31) mm; 4. NO.15 the sample size is (18.87~12.99) mm*(4.23~4.28) mm; 5. NO.16 the sample size is (50.39~50.51)mm*(50.37~50.50)mm * (4.24~4.27) mm . |
||||
Technical Data for 3240 Grade B
|
NO |
TEST ITEMS |
UNIT |
TEST RESULT |
TEST METHOD |
|
|
1 |
Density |
g/cm3 |
2.07 |
GB/T 1303.2-2009 |
|
|
2 |
Water Absorption |
mg |
6.0 |
||
|
3 |
Bending Strength Perpendicular to Laminations |
A |
MPa |
203 |
|
|
B |
192 |
||||
|
4 |
Modulus of Elasticity in Flexure |
A |
MPa |
2.12*104 |
|
|
B |
2.38*104 |
||||
|
5 |
Parallel Layer Impact Strength (Simply Supported Beam, Gap) |
A |
KJ/m² |
47.4 |
|
|
B |
35.8 |
||||
|
6 |
Parallel Layer Shear Strength |
A |
MPa |
49.8 |
|
|
B |
52.7 |
||||
|
7 |
Tensile Strength |
A |
MPa |
147 |
|
|
B |
121 |
||||
|
8 |
Compressive Strength Perpendicular to Laminations compressive |
MPa |
438 |
||
|
9 |
Insulation Resistance after Soaking |
Ω |
2.0*109 |
||
|
10 |
Vertical Layer Breakdown Voltage (90℃ + 2℃ oil, 20s step by step boost) |
MV/m |
8.6 |
||
|
11 |
Parallel Layer Breakdown Voltage (90℃ + 2℃ oil, 20s step by step boost) |
kV |
28.0 |
||
|
12 |
Flammability |
- |
V-1 |
||
|
13 |
Deflection Temperature under Load |
A |
℃ |
>140 |
|
|
B |
>140 |
||||
|
14 |
Adhesive Strength |
N |
6324 |
GB/T 1303.6-2009 |
|
|
REMARK: 1. NO.2 the sample size is 50mm*50mm*50mm; 2. NO.8 the sample height is (9.05~9.56) mm; 3. NO.10 the sample thickness is (2.91~2.95)mm; 4. NO.11 the sample size is 100.00mm*5.08mm*24.10mm; |
|||||
Key Features
- High Insulation: Exceptional electrical insulation properties make it ideal for electrical and electronic applications.
- Thermal Stability: Maintains integrity and performance in high-temperature environments.
- Mechanical Strength: Provides outstanding mechanical strength and durability, ensuring long-lasting use.
- Chemical Resistance: Resistant to many chemicals, enhancing its versatility in various applications.
Standards
Our product complies with internationally recognized standards, ensuring reliability and performance:
- ISO 9001: Quality Management Systems
- UL 94: Flammability Standards
- ASTM D709: Testing of Electrical Insulation Materials
Technical Features: Product Safety Control
This message effectively highlights your commitment to safety and quality! Emphasizing extensive testing and stringent quality control protocols reinforces your dedication to providing reliable products. By assuring customers that your sheets meet rigorous safety standards, you’re not only building trust but also positioning your brand as a responsible choice in the market. If you're looking to refine this message further or add specific examples of the testing processes or certifications you have, let me know! It could enhance your credibility even more.
Product Applications
The 3240 Epoxy Resin Glass Fiber Laminated Sheet is widely used in various sectors, including:
- Electrical and Electronics: Used as insulation in circuit boards and electrical components.
- Automotive: Applied in automotive parts that require high insulation and heat resistance.
- Aerospace: Essential for components that demand lightweight and strong materials.
- Industrial Equipment: Ideal for use in machinery and equipment that require durability and resistance to wear and tear.

OEM Service
That sounds like a great approach to customer service! Offering OEM services for the product allows you to cater to specific needs, ensuring that clients get exactly what they require for their applications. Collaborating closely with customers not only helps in achieving optimal performance but also builds trust and satisfaction. It’s clear that your commitment to customization will make a significant difference in supporting their projects effectively.

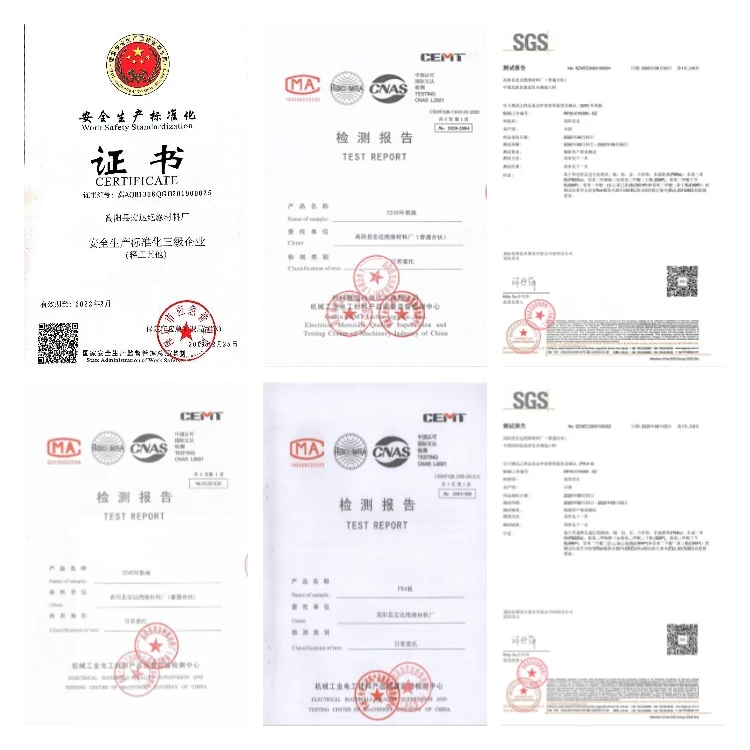

Certification
That's an excellent addition to your message! Emphasizing your products' certifications not only reinforces their quality but also builds confidence among potential customers. Highlighting your commitment to excellence and the rigorous standards you adhere to shows that you prioritize safety and reliability. This reassurance can be a key differentiator in a competitivemarket.Certifications include:
- ISO 9001
- UL Certification

Exhibition

FAQ
Q: What are the typical uses for the products?
A: These sheets are commonly used in electrical insulation, automotive components, aerospace applications, and various industrial settings.
Q: Can I get custom sizes for my application?
A: Yes, we offer OEM services for custom sizes and specifications to meet your specific requirements.
Q: How can I ensure the quality of the product?
A: We adhere to strict quality control measures and certifications to ensure that our products meet the highest standards.
Contact Us
For inquiries or more information about our 3240 Epoxy Fiberglass Laminated Sheet, please reach out to us at info@jhd-material.com.
