Epoxy Resin For Wood

Basic Information:
Brand:Jinghong
Material:Epoxy Resin
Color: Transparent
Shelf Life:12 Months
Model Number: JQ-3
Payment Terms: L/C T/T Credit Card

  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service

Product Introduction



Production Description


Epoxy Resin For Wood is self leveling, self degassing, low odor, Non-toxic (food safe) and no fumes,contains both a UV stabilizer and advanced additive resistant to yellowing, long lasting. Perfect for mica powder, deep resin molds,alcohol ink, resin pigment or river tables.

2:1 Mixture Resin & Higher Hardness: easy to by volume ratio,resin A to hardener B is 2 :1.After curing, the hardness of this resin is higher, more heat resistant to prevent warping, more wear-resistant and not easy to break. Deep Pour Epoxy Resin Up To 2 Inch:Jinhua epoxy resin is able to fill gaps more than 2 inches thick at a time.Specially for epoxy resin wood filler applications,such as river bed, table side. Carefully and thoroughly avoiding forming bubbles, 45 minute work time, 48-72 hours cure time (according to your project)

There are two types three types of casting resin:

Types Weight Ratio Viscosity of A Viscosity of B Operation Time Final Curing Time Initial Curing Time ShoreD

31 AB-7T

3:1 800cps 80cps 2h 36h 8h 83D
31 AB-9T 2:1 1000cps 1000cps 12h 48h 24h 82D
31 AB-9V 2:1 1000cps 200cps 16h 48h 24h 82D

Single maximum pouring thickness:

  • 31 AB-7T: 1-3CM

  • 31 AB-9T: 8-12CM

  • 31 AB-9V: 15-18CM



Data Sheet


Part

31A-7T

31B-7T

Color

Transparent

Transparent

Specific gravity

1.15

0.96

Viscosity (25℃)

2000-4000CPS

80 MAXCPS

Mixing ratio

A: B = 100:33(weight ratio)

A: B = 100:33(weight ratio)

Hardening conditions

25 ℃×8H to 10H or 55℃×1.5H (2 g)

25 ℃×8H to 10H or 55℃×1.5H (2 g)

Usable time

25℃×40min (100g)

25℃×40min (100g)



Part

31A-9T

31B-9T

Color

Transparent

Transparent

Specific gravity

1.15

0.97

Viscosity (25℃)

2000-4000CPS

50 MAXCPS

Mixing ratio

A: B = 100:50(weight ratio)

A: B = 100:50(weight ratio)

Hardening conditions

25 ℃ × 48H - 72H

25 ℃ × 48H - 72H

Usable time

25 ℃ × 30min (100g)

25 ℃ × 30min (100g)



item

value

CAS No.

38891-59-7

Other Names

epoxy resin ab glue

MF

C15H16O2C2H7ONC3H5OCl

EINECS No.

231-072-3

Place of Origin

China

Classification

Double Components Adhesives

Main Raw Material

Epoxy

Usage

Fiber & Garment, Packing, Woodworking

Brand Name

Jinghong

Model Number

318AB-9T

Type

liquid glue

Viscosity

A=2000-4000CPS, B=50MAXCPS

Shelf life

6 Months

Color

Clear

Certificate

ROHS, REACH, PAHS, ASTM, EN-71

Mixing Ratio

A:B=2:1

Packing

Bottle



Application and Feature


Epoxy Resin For Wood is specially designed for large size wood table casting, lamp potting and mold filling, etc.. and can be cured under normal temperature and high temperature, with the feature of good flowing property, low viscosity, very little heat release, natural defoaming, anti-yellow, high transparency, no ripple, bright in surface.

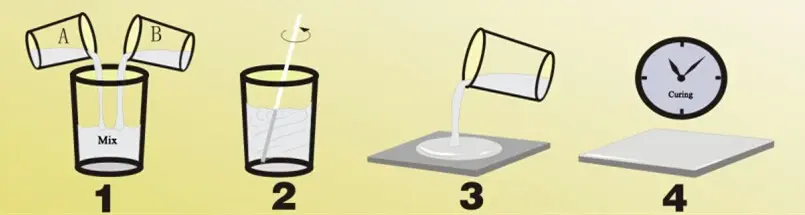

Operation


1.Weigh A and B glue according to the given weight ratio into the prepared cleaned container, fully mixed the mixture again the container wall by clockwise, place it along for 3 to 5 minutes, and then it can be used.

2.Take the glue according to the usable time and dosage of mixture to avoid wasting. When the temperature is below 15 ℃, please heat A glue to 30 ℃ first and then mix it to the B glue (A glue will be thicken in low temperature ); The glue must be sealed lid after use to avoid rejection caused by moisture absorption.

3.When the relative humidity is higher than 85%, the surface of the cured mixture will absorb moisture in the air, and form a layer of white mist in the surface, so when the relative humidity is higher than 85%, is not suitable for room temperature curing,suggest to use the heat curing.

Epoxy Resin For Wood



Announcement


1. The surface of the product to be glued needs to be kept dry and clean; Maintain ventilation in the workplace;

2. Measure according to the ratio and weigh accurately. Please remember that the ratio is by weight rather than by volume. After mixing agents A and B, it is necessary to stir thoroughly and evenly to avoid incomplete curing;

3. After mixing evenly, please pour the glue in a timely manner and try to use the mixed glue as much as possible within the usable time;

4. During the curing process, please keep the product horizontally placed to prevent the adhesive from overflowing during the curing process.

5. After mixing, this product can be left to stand for 5 minutes before use to timely remove any bubbles generated during mixing;

6. The more glue is mixed together, the faster the reaction and curing speed will be. Please pay attention to controlling the amount of glue in one batch, as the usable time will also be shortened due to the accelerated reaction;

7. Usable time: refers to the time when the viscosity of 100g of mixed adhesive increases by twice at 25 ℃, not after the operational time, the adhesive cannot be used;

8. A very small number of people may experience mild skin allergies and itching when exposed to the adhesive for a long time. It is recommended to wear protective gloves when using, wipe off the adhesive with acetone or alcohol, and clean it thoroughly with a cleaning agent;

9. Before using the product in large quantities, please try it out in small quantities and master the usage techniques to avoid errors.

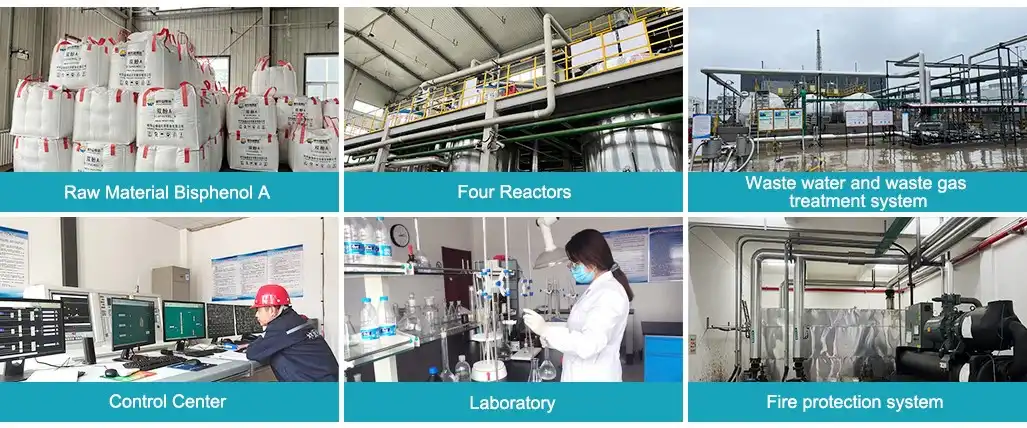

Factory Equipment


  Hebei Linyuan Fine Chemical Co., Ltd. was established in January 2017, and it was funded and constructed by Hebei JingHong Electronic Technology Co., Ltd and its subsidiary Hongda Insulation Material Factory which specialize in the production of 3240 Epoxy Resin Board, FR4 Fiberglass Sheet, Phenolic Cotton Cloth Laminate Sheet 3026, phenolic paper board and copper clad laminate.

  JingHong had a factory before in Xiong'an New District, Hebei, which produced E44 epoxy resin only. The production volume was small and part of it was used for its own. Therefore, there was not much sales in the market. Due to the wide applications of epoxy resin, China has become the world's largest producer and consumer of epoxy resins. In order to comply with the market trend, the company combined the company's own situation, withdrew from Xiong'an New Area, and built an epoxy resin factory with an annual output of 20,000 tons in Cangzhou. The project has been completed and put into production.

  The project is designed with reference of Japan’s Toto Kasei technology. The current production of epoxy resins include E44, E51, etc., and varieties will be gradually added according to market demand in the future. The person who take in charge of the company said: At present, the epoxy resin production capacity is 20,000 tons. According to the actual market situation, the production capacity is going to expand to 100,000 tons.

Epoxy Resin For Wood

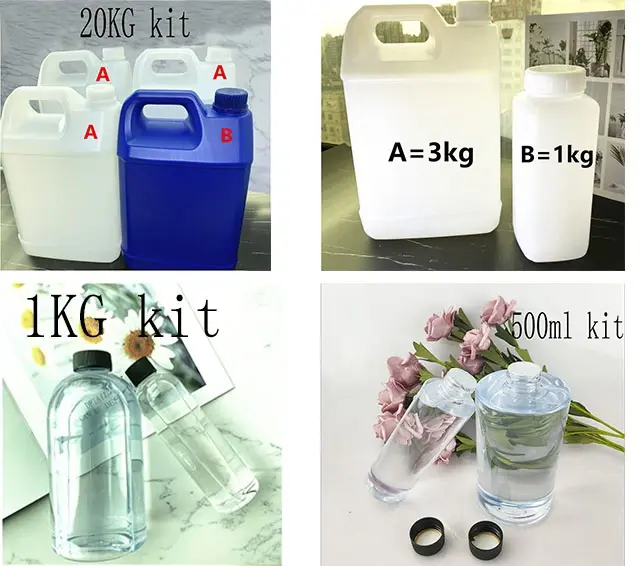

Packaging and Shipping


Epoxy Resin For Wood
