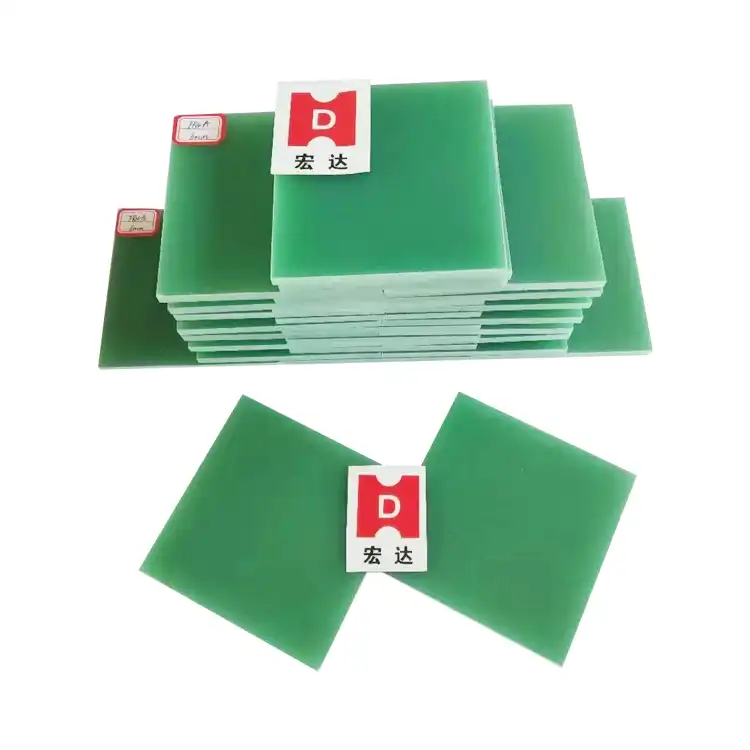

Applications of G10 FR4 Sheet in Automotive Electronics

Why Is G10 FR4 Ideal for Automotive Electrical Systems?

Superior Electrical Insulation Properties

G10 FR4 sheets excel in electrical insulation, a critical requirement for automotive electronics. Their high dielectric strength ensures minimal current leakage, reducing the risk of short circuits and electrical failures in complex vehicle systems. This property is particularly valuable in high-voltage applications found in hybrid and electric vehicles, where insulation integrity is paramount for safety and performance.

Mechanical Strength and Durability

Automotive environments demand materials that can withstand constant vibration, shock, and mechanical stress. G10 FR4 sheets boast exceptional mechanical strength, resisting deformation and maintaining structural integrity over time. This durability ensures that electronic components remain secure and functional throughout the vehicle's lifespan, even under harsh operating conditions.

Flame Retardant Characteristics

Safety is a top priority in automotive design, and G10 FR4's flame retardant properties contribute significantly to this aspect. The material's ability to self-extinguish and resist flame propagation enhances the overall fire safety of automotive electrical systems. This characteristic is crucial in preventing small electrical faults from escalating into dangerous fire hazards, thereby protecting both vehicle occupants and the surrounding environment.

Heat Resistance and Vibration Stability in Vehicle Environments

Thermal Management Capabilities

Modern vehicles generate substantial heat, particularly in engine compartments and high-power electronic systems. G10 FR4 sheets demonstrate remarkable thermal stability, maintaining their physical and electrical properties across a wide temperature range. This heat resistance is vital for ensuring the consistent performance of automotive electronics, even in extreme temperature conditions. The material's low thermal expansion coefficient also contributes to the dimensional stability of components, preventing warping or distortion that could lead to system failures.

Vibration Damping Properties

Constant vibration is an inherent challenge in automotive applications. G10 FR4 sheets exhibit excellent vibration damping characteristics, helping to isolate sensitive electronic components from the harmful effects of continuous mechanical oscillations. This property is particularly beneficial in protecting delicate circuit boards and connectors from fatigue and potential failure due to prolonged exposure to vehicle vibrations. By minimizing the transmission of vibrations, G10 FR4 enhances the longevity and reliability of automotive electronic systems.

Moisture and Chemical Resistance

Automotive environments often expose components to moisture, oils, and various chemicals. G10 FR4 sheets boast impressive resistance to these elements, preventing degradation and maintaining their insulating properties over time. This resistance is crucial for preserving the integrity of electrical connections and preventing corrosion-induced failures in automotive electronics. The material's low water absorption rate further ensures stability in humid conditions, making it suitable for use in diverse climates and operating environments.

Typical Automotive Components Using G10 FR4 Materials

Printed Circuit Boards (PCBs) for Engine Control Units

Engine Control Units (ECUs) are the brain of modern vehicles, controlling everything from fuel injection to emissions systems. G10 FR4 sheets serve as the base material for PCBs in ECUs, providing a stable platform for complex circuitry. The material's excellent dielectric properties ensure signal integrity, while its thermal stability allows for reliable operation in the high-temperature environment of engine compartments. The use of G10 FR4 in ECU PCBs contributes to improved engine performance, fuel efficiency, and overall vehicle reliability.

Insulation in Electric Vehicle Battery Systems

In electric vehicles (EVs), battery systems require robust insulation to ensure safety and efficiency. G10 FR4 sheets are utilized as insulating barriers between battery cells and modules, preventing electrical leakage and thermal runaway. The material's flame retardant properties add an extra layer of safety in the event of battery system failures. Additionally, the dimensional stability of G10 FR4 helps maintain precise spacing within battery packs, crucial for thermal management and overall system performance in EVs.

Sensor Housings and Mounting Plates

Modern vehicles rely on an array of sensors for everything from engine management to advanced driver assistance systems (ADAS). G10 FR4 sheets are often used to create housings and mounting plates for these sensors. The material's combination of electrical insulation and mechanical strength provides a stable environment for sensitive sensor components. Its resistance to vibration and environmental factors ensures accurate sensor readings over time, contributing to the reliability of critical vehicle systems like anti-lock brakes, traction control, and collision avoidance.

Conclusion

G10 FR4 sheets have proven to be an invaluable material in the realm of automotive electronics, offering a unique combination of electrical insulation, mechanical strength, and thermal stability. As vehicles continue to evolve with more advanced electronic systems, the demand for high-performance materials like G10 FR4 is expected to grow. From PCBs in engine control units to insulation in electric vehicle batteries, G10 FR4's versatility and reliability make it a cornerstone of modern automotive design. Its ability to withstand harsh environments while maintaining crucial electrical and mechanical properties ensures that it will remain a key component in the ongoing evolution of automotive technology.

FAQs

What makes G10 FR4 sheets suitable for automotive applications?

G10 FR4 sheets offer excellent electrical insulation, mechanical strength, and thermal stability, making them ideal for automotive electronics. They resist heat, vibration, and chemicals, ensuring reliability in harsh vehicle environments.

Can G10 FR4 sheets be used in electric vehicles?

Yes, G10 FR4 sheets are widely used in electric vehicles, particularly for insulation in battery systems and as base materials for various electronic components.

How do G10 FR4 sheets contribute to vehicle safety?

G10 FR4 sheets enhance vehicle safety through their flame retardant properties, electrical insulation capabilities, and ability to maintain structural integrity under stress, reducing the risk of electrical fires and system failures.
