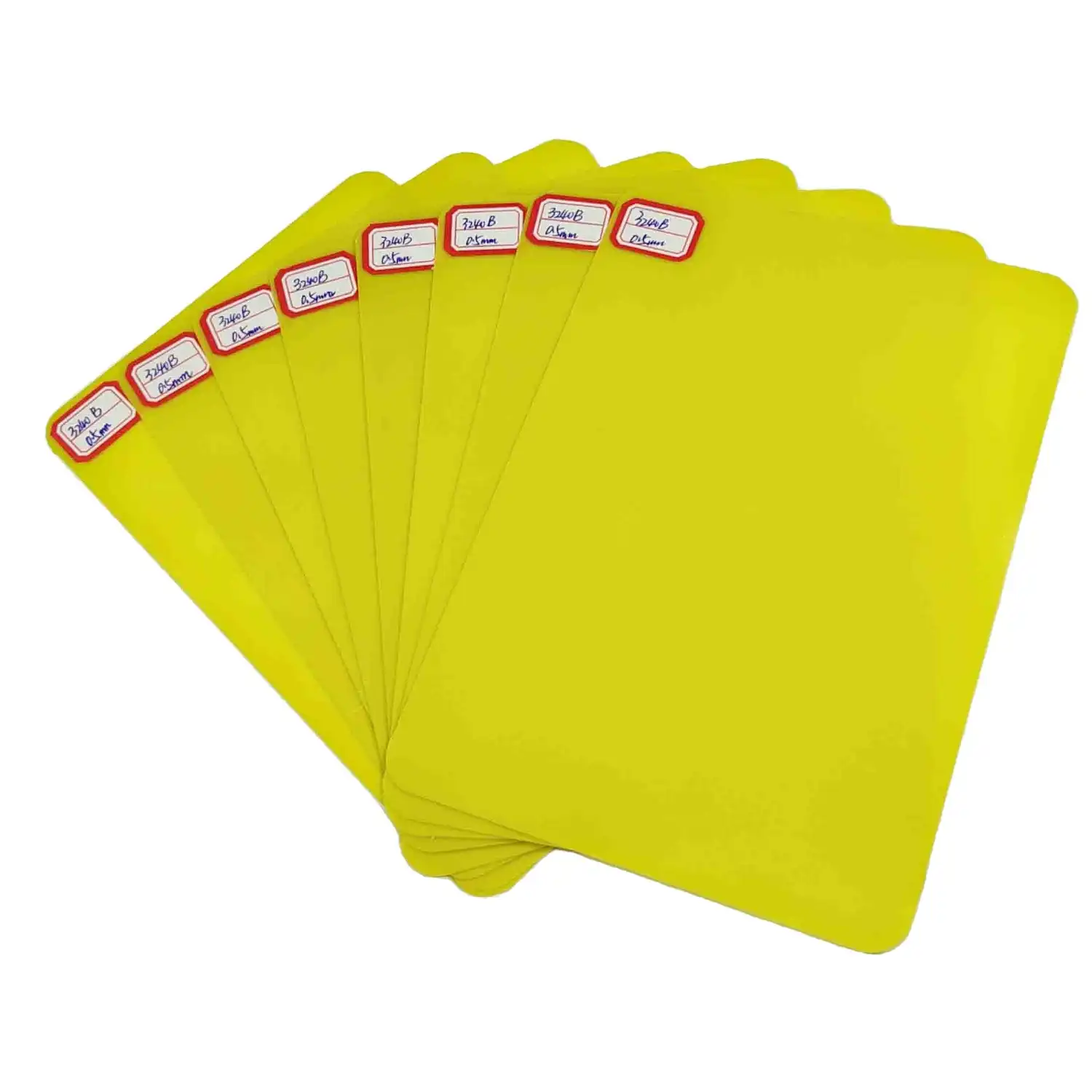

Differences Between 3240 Epoxy Sheet and Conventional Insulation Sheets

3240 epoxy sheet stands out from conventional insulation sheets due to its superior mechanical strength, excellent electrical properties, and enhanced thermal performance. While traditional insulation materials like fiberglass or foam offer basic protection, 3240 epoxy sheet provides a robust combination of high dielectric strength, low thermal expansion, and exceptional durability. This advanced composite material, formed by impregnating fiberglass cloth with epoxy resin, offers significantly improved resistance to moisture, chemicals, and temperature fluctuations compared to standard insulation options. Its versatility makes it ideal for demanding applications in electronics, aerospace, and industrial sectors where conventional materials fall short.

How Do Mechanical and Electrical Properties Compare?

Strength and Durability Advantages

3240 epoxy sheet exhibits remarkable mechanical properties that surpass those of conventional insulation materials. Its composite structure, combining epoxy resin with fiberglass reinforcement, results in exceptional tensile and flexural strength. This enhanced durability allows 3240 epoxy sheet to withstand higher mechanical stresses without deformation or failure, making it suitable for applications where structural integrity is crucial. Unlike traditional insulation materials that may compress or degrade under pressure, 3240 epoxy sheet maintains its dimensional stability even under significant loads.

Electrical Insulation Capabilities

When it comes to electrical insulation, 3240 epoxy sheet outperforms many conventional options. Its high dielectric strength enables it to resist electrical breakdown under intense voltage stress, a critical factor in high-power electronics and electrical systems. The material's low dielectric constant and dissipation factor contribute to minimal signal loss and interference, essential for precision electronic applications. Conventional insulation materials often struggle to match these electrical properties, particularly in demanding environments where temperature fluctuations and humidity can compromise performance.

Resistance to Environmental Factors

3240 epoxy sheet demonstrates superior resistance to environmental factors compared to traditional insulation materials. Its low moisture absorption rate and excellent chemical resistance protect against degradation in harsh industrial settings. This resilience ensures consistent electrical and mechanical properties even when exposed to oils, solvents, or corrosive substances. Conventional insulation materials may deteriorate rapidly under similar conditions, leading to reduced effectiveness and potential safety hazards in electrical applications.

Thermal Performance and Durability Differences

Heat Resistance and Thermal Stability

The thermal performance of 3240 epoxy sheet significantly exceeds that of many conventional insulation materials. Its ability to maintain structural integrity and electrical properties at elevated temperatures makes it ideal for high-temperature applications where traditional materials might soften or degrade. The epoxy resin matrix provides excellent thermal stability, resisting deformation and maintaining insulative properties across a wide temperature range. This thermal resilience ensures reliable performance in environments subject to thermal cycling or prolonged exposure to heat.

Thermal Expansion Characteristics

3240 epoxy sheet exhibits a lower coefficient of thermal expansion compared to many conventional insulation materials. This property is crucial in applications where dimensional stability under temperature fluctuations is essential. The minimal thermal expansion helps prevent stress on components and maintains tight tolerances in precision assemblies. Conventional insulation materials with higher thermal expansion rates may cause misalignment or mechanical stress in sensitive equipment, potentially leading to performance issues or premature failure.

Long-Term Performance and Aging

In terms of long-term durability, 3240 epoxy sheet demonstrates superior resistance to aging and degradation compared to conventional insulation options. Its inherent stability and resistance to environmental factors contribute to an extended service life, reducing the need for frequent replacements. This longevity translates to lower maintenance costs and improved reliability in critical applications. Conventional insulation materials may deteriorate more rapidly, especially when exposed to UV radiation, moisture, or chemical contaminants, necessitating more frequent inspections and replacements.

Industry Applications Highlighting 3240 Advantages

Aerospace and Aviation

In the aerospace industry, 3240 epoxy sheet finds extensive use due to its exceptional strength-to-weight ratio and thermal stability. Its application in aircraft components, such as interior panels and structural elements, provides superior fire resistance and durability compared to conventional materials. The material's ability to withstand extreme temperature variations and low pressure at high altitudes makes it indispensable for avionics and electrical systems insulation. Unlike traditional insulation materials, 3240 epoxy sheet maintains its properties under the rigorous conditions encountered in aerospace applications, ensuring consistent performance and safety.

Power Generation and Distribution

The power sector benefits significantly from the advanced properties of 3240 epoxy sheet. Its high dielectric strength and excellent thermal management capabilities make it ideal for insulating high-voltage equipment and transformers. In these applications, the material outperforms conventional insulation by providing better protection against electrical breakdown and partial discharge. The enhanced moisture resistance of 3240 epoxy sheet also contributes to improved reliability in outdoor electrical installations, where traditional materials might suffer from degradation due to environmental exposure.

Electronics and Telecommunications

In the rapidly evolving electronics and telecommunications industries, 3240 epoxy sheet offers distinct advantages over conventional insulation materials. Its low dielectric constant and superior dimensional stability make it an excellent choice for high-frequency circuit boards and antenna components. The material's ability to maintain consistent electrical properties across a wide range of frequencies and environmental conditions ensures reliable performance in sensitive electronic devices. Conventional insulation materials often struggle to meet the stringent requirements of modern electronics, particularly in terms of signal integrity and thermal management.

Conclusion

3240 epoxy sheet represents a significant advancement over conventional insulation sheets across multiple dimensions. Its superior mechanical strength, excellent electrical properties, and enhanced thermal performance make it the preferred choice for demanding applications in aerospace, power generation, and electronics industries. While traditional insulation materials may suffice for basic applications, 3240 epoxy sheet excels in environments requiring high reliability, durability, and consistent performance under extreme conditions. As industries continue to push the boundaries of technology and performance, materials like 3240 epoxy sheet will play an increasingly crucial role in enabling innovation and ensuring long-term reliability.

FAQs

What makes 3240 epoxy sheet superior to conventional insulation materials?

3240 epoxy sheet offers higher mechanical strength, better electrical insulation, and improved thermal stability compared to conventional materials. It resists moisture, chemicals, and temperature fluctuations more effectively, making it ideal for demanding industrial applications.

Can 3240 epoxy sheet be customized for specific applications?

Yes, 3240 epoxy sheet can be tailored to meet specific requirements by adjusting thickness, reinforcement type, and resin formulation. This flexibility allows for optimization in various industries, from aerospace to electronics.

Is 3240 epoxy sheet environmentally friendly?

While 3240 epoxy sheet offers excellent durability and longevity, which can reduce waste, its recyclability is limited. However, many formulations comply with RoHS directives and some are halogen-free, addressing certain environmental concerns.
