Epoxy Glass Laminate vs Phenolic Resin Board: A Detailed Guide

What Are the Structural Differences Between the Two?

Composition and Material Properties

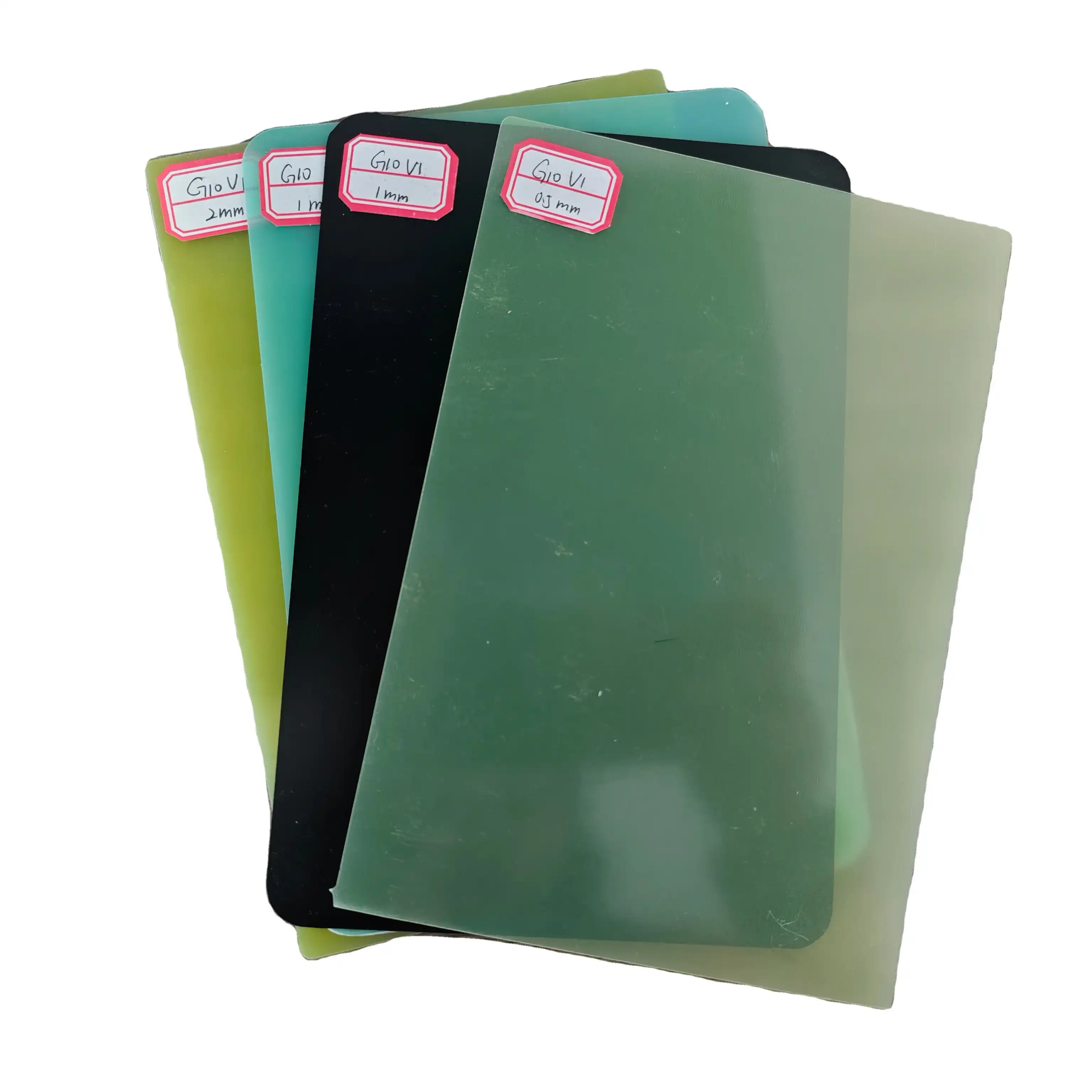

Epoxy glass laminate, commonly known as G10 or FR4, is a composite material consisting of woven glass fabric impregnated with epoxy resin. This combination results in a material with exceptional strength-to-weight ratio, excellent electrical insulation properties, and remarkable dimensional stability. The glass fibers provide reinforcement, while the epoxy resin acts as a binder, creating a robust and versatile material.

Phenolic resin board, on the other hand, is made by impregnating paper or cotton fabric with phenol-formaldehyde resin. This thermoset plastic material is known for its high heat resistance, good electrical insulation properties, and excellent machinability. The phenolic resin provides a rigid structure, while the paper or fabric substrate adds strength and flexibility.

Mechanical Strength and Durability

Epoxy glass laminate boasts superior mechanical strength compared to phenolic resin board. The glass fibers in epoxy laminates provide enhanced tensile and flexural strength, making it more resistant to cracking and deformation under stress. This high strength-to-weight ratio makes epoxy glass laminate an ideal choice for applications requiring robust structural integrity.

Phenolic resin board, while not as strong as epoxy glass laminate, offers good impact resistance and durability. Its ability to withstand moderate mechanical stress makes it suitable for applications where extreme strength is not a primary requirement but where consistent performance under varying conditions is essential.

Thermal and Electrical Properties

Both materials exhibit excellent electrical insulation properties, but they differ in their thermal characteristics. Epoxy glass laminate generally has a higher temperature resistance, maintaining its properties at elevated temperatures. This makes it suitable for applications involving high-temperature environments or where heat dissipation is crucial.

Phenolic resin board, while having good heat resistance, may not perform as well as epoxy glass laminate at extremely high temperatures. However, it offers excellent flame-retardant properties, making it a preferred choice in applications where fire safety is a primary concern.

Typical Application Environments and Suitability

Electrical and Electronic Applications

Epoxy glass laminate finds extensive use in the electronics industry, particularly in printed circuit boards (PCBs). Its low dielectric constant and loss tangent make it an excellent substrate for high-frequency applications. The material's dimensional stability ensures that electronic components remain in place, even under thermal stress.

Phenolic resin board is commonly used in low-voltage switchgear, terminal blocks, and insulating components in electrical appliances. Its good arc resistance and flame-retardant properties make it suitable for applications where electrical safety is paramount.

Mechanical and Industrial Uses

In mechanical applications, epoxy glass laminate is often used for manufacturing gears, bearings, and structural components in aerospace and automotive industries. Its high strength and low weight make it an ideal material for parts that require both durability and lightness.

Phenolic resin board is frequently employed in the production of machine parts, cutting boards, and industrial tools. Its good machinability and resistance to chemicals make it suitable for applications in harsh industrial environments where exposure to oils, solvents, and moderate heat is common.

Environmental Considerations

When considering environmental factors, both materials have their strengths and limitations. Epoxy glass laminate, while durable and long-lasting, can be challenging to recycle due to its composite nature. However, its longevity often means less frequent replacement, potentially reducing overall waste.

Phenolic resin board, depending on its specific composition, may offer better recyclability options. Some phenolic resins can be ground and used as fillers in new products, although the process is not widespread. The material's resistance to moisture and chemicals also contributes to its longevity in certain applications, potentially reducing environmental impact through extended use.

Manufacturing Processes and Material Costs

Production Techniques

The manufacturing process for epoxy glass laminate involves layering sheets of glass fabric and impregnating them with epoxy resin. This layered structure is then subjected to heat and pressure in a process called lamination. The result is a dense, uniform material with consistent properties throughout its thickness.

Phenolic resin board production typically involves saturating paper or fabric with phenolic resin, then compressing and heating the layers to cure the resin. This process can be continuous for thin sheets or done in presses for thicker boards. The final product's properties can be adjusted by varying the type of substrate and resin formulation.

Cost Considerations

Generally, epoxy glass laminate tends to be more expensive than phenolic resin board due to its more complex manufacturing process and the cost of raw materials. The high-quality glass fibers and specialized epoxy resins contribute to its higher price point. However, the superior performance and longevity of epoxy glass laminate can offset the initial cost in many applications.

Phenolic resin board, being less expensive to produce, offers a more economical option for applications where the extreme strength and performance of epoxy glass laminate are not necessary. The lower cost makes it an attractive choice for large-scale production or where frequent replacement is expected.

Customization and Availability

Both materials offer a range of customization options, but epoxy glass laminate generally provides more flexibility in terms of tailoring properties to specific applications. The type of glass fabric, epoxy resin formulation, and layering pattern can be adjusted to achieve desired characteristics such as improved heat resistance or enhanced electrical properties.

Phenolic resin board, while somewhat less versatile in customization, is widely available in various grades and thicknesses. Its simpler manufacturing process often results in shorter lead times and greater availability, which can be advantageous for projects with tight schedules or those requiring standard specifications.

Conclusion

The choice between epoxy glass laminate and phenolic resin board depends on the specific requirements of each application. Epoxy glass laminate excels in high-performance environments demanding superior strength, electrical insulation, and thermal stability. Phenolic resin board offers a cost-effective solution for applications requiring good electrical properties, flame resistance, and chemical resistance. By carefully considering factors such as mechanical requirements, electrical needs, environmental conditions, and budget constraints, engineers and manufacturers can select the most suitable material to optimize their product's performance and longevity.
