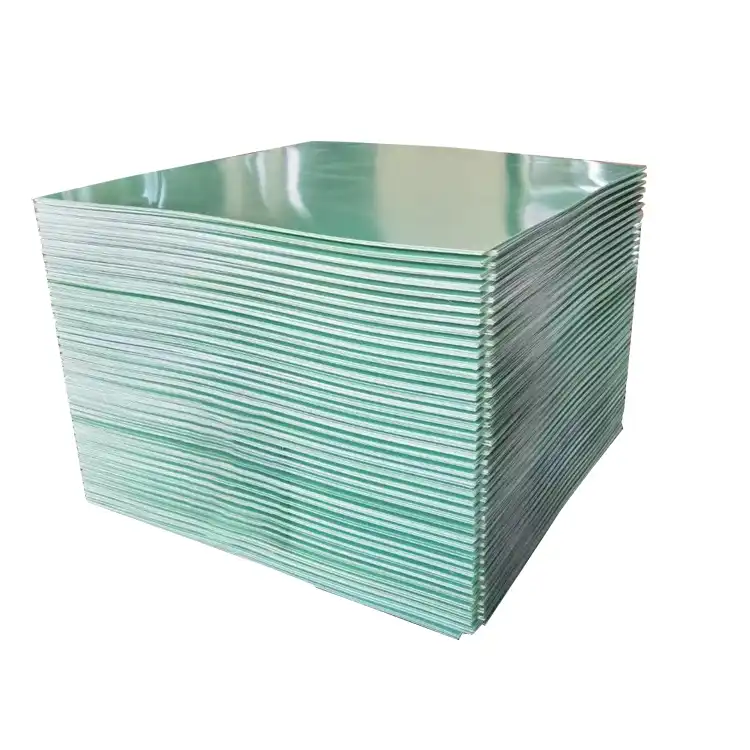

G10 FR4 Sheet for Robotics and Automation

Why Is G10 FR4 Ideal for Robotic Components?

Superior Electrical Insulation Properties

G10 FR4 sheet boasts exceptional electrical insulation characteristics, making it an optimal choice for robotic components. Its high dielectric strength ensures minimal current leakage, crucial for maintaining the integrity of electrical systems in robots. The material's low dissipation factor contributes to reduced signal loss, enhancing the overall efficiency of robotic control systems. Moreover, G10 FR4's stable electrical properties across varying environmental conditions guarantee consistent performance in diverse operational settings.

Thermal Stability and Heat Resistance

Thermal stability is a critical factor in robotics, where components often operate under high-stress conditions. G10 FR4 sheet exhibits remarkable heat resistance, maintaining its structural integrity and electrical properties even at elevated temperatures. This thermal stability prevents warping or deformation of robotic parts, ensuring precise movements and reliable operation. The material's low coefficient of thermal expansion further contributes to dimensional stability, critical for maintaining calibration in precision robotic systems.

Chemical Resistance for Harsh Environments

Robots frequently operate in environments exposed to various chemicals, oils, and solvents. G10 FR4 sheet's inherent chemical resistance makes it an ideal material for such applications. It resists degradation from exposure to a wide range of substances, preserving the integrity of robotic components over extended periods. This resistance to chemical attack ensures longevity and reliability of robotic systems in industrial settings, where exposure to corrosive substances is common.

Mechanical Strength, Vibration Resistance, and Durability

High Tensile and Compressive Strength

The mechanical prowess of G10 FR4 sheet is a key factor in its widespread adoption in robotics. Its high tensile strength, typically ranging from 310 to 440 MPa, enables the material to withstand significant loads without failure. This strength is crucial for load-bearing components in robotic arms and actuators. Additionally, the material's impressive compressive strength allows it to maintain structural integrity under high-pressure conditions, making it suitable for components subject to compressive forces in automated machinery.

Excellent Vibration Damping Capabilities

Vibration control is essential in robotics to ensure precision and prevent premature wear of components. G10 FR4 sheet exhibits superior vibration damping properties, effectively absorbing and dissipating mechanical energy. This characteristic is particularly valuable in high-speed robotic applications where vibrations can compromise accuracy and performance. The material's ability to mitigate vibrations contributes to extended equipment lifespan and improved overall system reliability.

Long-Term Durability and Fatigue Resistance

Durability is a paramount concern in the design of robotic systems intended for long-term operation. G10 FR4 sheet demonstrates exceptional fatigue resistance, maintaining its mechanical properties even after prolonged exposure to cyclic loading. This resistance to material fatigue ensures the longevity of robotic components, reducing the need for frequent replacements and maintenance. The material's ability to withstand repeated stress cycles makes it ideal for applications involving repetitive motions, common in industrial automation.

Applications in Industrial Automation Systems

Robotic End Effectors and Grippers

G10 FR4 sheet finds extensive use in the construction of robotic end effectors and grippers. Its combination of strength and lightweight properties allows for the creation of efficient, high-performance gripping mechanisms. The material's electrical insulation properties are particularly beneficial in end effectors handling sensitive electronic components. Additionally, the dimensional stability of G10 FR4 ensures precise and repeatable gripping actions, crucial for automated assembly and pick-and-place operations in manufacturing environments.

Insulation and Support Structures in Automated Machinery

In automated machinery, G10 FR4 sheet serves as an excellent material for insulation and support structures. Its high dielectric strength makes it ideal for isolating high-voltage components, ensuring the safety and reliability of electrical systems in industrial equipment. The material's mechanical strength allows it to function as load-bearing support structures, capable of withstanding the dynamic forces present in automated production lines. Its resistance to moisture absorption further enhances its suitability for use in varied industrial environments.

Custom-Machined Components for Specialized Automation Tasks

The machinability of G10 FR4 sheet enables the creation of custom components tailored to specific automation requirements. It can be precisely cut, drilled, and shaped to form complex parts for specialized robotic applications. This versatility is particularly valuable in the development of bespoke automation solutions for unique industrial processes. The material's consistent properties across different batches ensure reproducibility in manufacturing custom components, a critical factor in maintaining the reliability and performance of automated systems.

Conclusion

G10 FR4 sheet has proven to be an invaluable material in the field of robotics and automation. Its unique combination of electrical insulation, mechanical strength, and durability makes it exceptionally suited for a wide range of applications in this sector. From robotic components to custom-machined parts for automated systems, G10 FR4 continues to play a crucial role in advancing industrial automation technologies. As the demands for more sophisticated and reliable robotic systems grow, the versatility and performance of G10 FR4 sheet position it as a material of choice for innovators and engineers in the robotics and automation industry.

FAQs

What makes G10 FR4 sheet different from other materials used in robotics?

G10 FR4 sheet stands out due to its unique combination of high mechanical strength, excellent electrical insulation, and thermal stability. Unlike metals, it doesn't conduct electricity, and compared to other plastics, it offers superior strength and heat resistance.

Can G10 FR4 sheet be used in high-temperature robotic applications?

Yes, G10 FR4 sheet is suitable for high-temperature applications. It maintains its properties at elevated temperatures, typically up to 130°C for continuous use.

Is G10 FR4 sheet environmentally friendly?

While G10 FR4 sheet is durable and long-lasting, which reduces waste, it's not biodegradable. However, it can be recycled through specialized processes.

Enhance Your Robotics and Automation with J&Q's G10 FR4 Sheets

J&Q, with over 20 years of experience in producing and selling insulating sheets, offers high-quality G10 FR4 sheets perfect for robotics and automation applications. Our sheets boast excellent mechanical and dielectric properties, good insulation, heat resistance, and moisture resistance. Available in various thicknesses and sizes, our G10 FR4 sheets are ideal for constructing servo trays, rotor plates, and other machine parts. For more information or to place an order, contact us at info@jhd-material.com.
