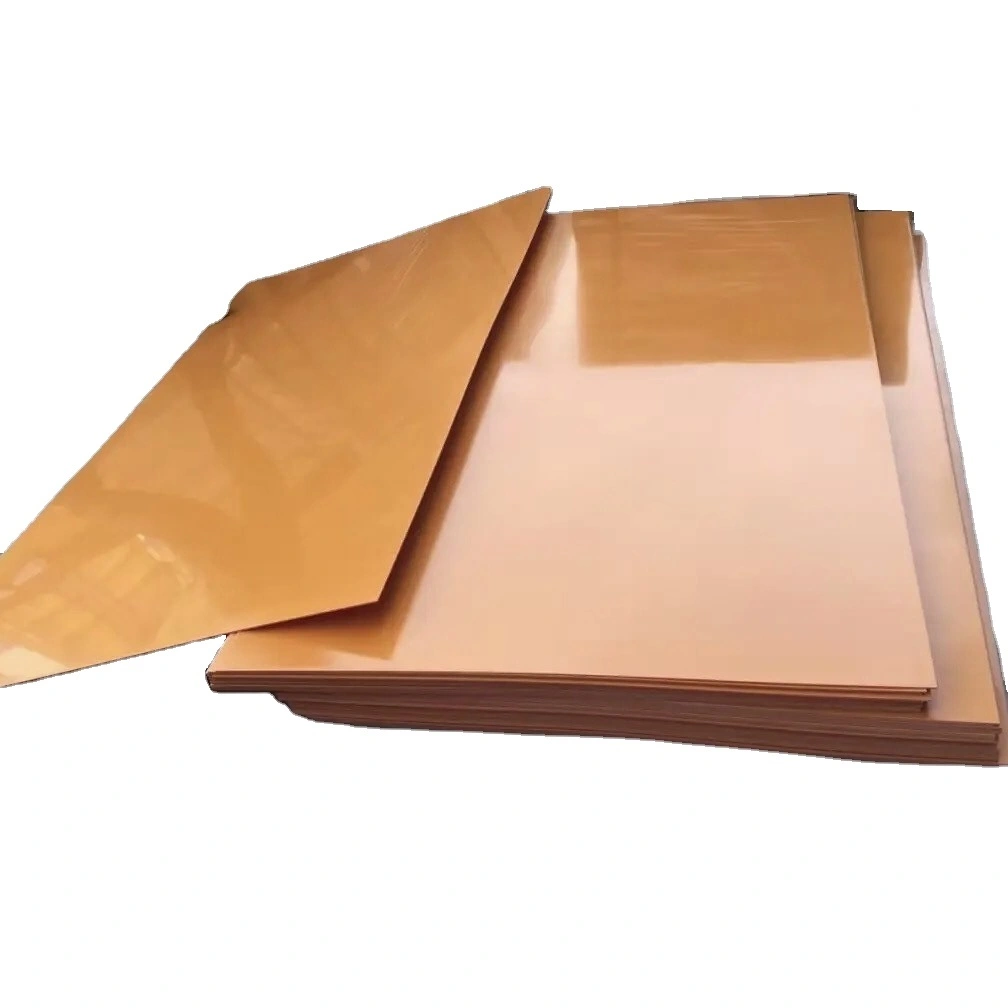

Phenolic Paper Laminate for Switch Panels: Benefits

Why Is Phenolic Laminate Preferred in Control Panel Design?

Superior Electrical Insulation

Phenolic paper laminate provides outstanding electrical insulation, making it a preferred material for modern control panel systems. Its high dielectric strength effectively isolates electrical circuits, minimizing the risk of arcing, short-circuiting, or leakage. This ensures consistent and safe performance, even in high-voltage or high-frequency environments. The material’s low conductivity and stable insulating properties help protect sensitive electronic components, reduce energy loss, and enhance overall operational safety in industrial automation and electrical distribution systems.

Thermal Stability

Phenolic paper laminates exhibit excellent resistance to temperature variations, ensuring consistent functionality in environments subject to both heat and cold. Whether exposed to prolonged high operating temperatures or sudden fluctuations, the material maintains its mechanical strength and electrical insulation. This makes phenolic paper laminate highly suitable for control panels installed in harsh or thermally demanding settings. Its stable performance under thermal stress prevents expansion, cracking, or degradation, thereby prolonging the lifespan of electrical enclosures and ensuring reliable equipment operation over time.

Dimensional Stability

One of the key advantages of phenolic paper laminate in control panel design is its ability to maintain precise dimensional accuracy under various environmental conditions. Unlike thermoplastics or low-grade composites that may warp or shrink, phenolic laminate resists deformation caused by heat, humidity, or mechanical stress. This dimensional consistency ensures that mounting holes, fasteners, and electrical contacts remain perfectly aligned, reducing the risk of component misfit or malfunction. As a result, it provides engineers with a dependable and long-lasting structural material for precision control assemblies.

Electrical Safety and Fire Retardant Performance

Arc Resistance

Phenolic paper laminate demonstrates exceptional resistance to electrical arcing, which is essential for ensuring safety in switch panels and power distribution systems. When exposed to high-voltage discharges, it resists surface tracking, carbonization, and erosion, thereby preserving its insulating capability. This arc-resistant property minimizes the potential for short circuits and electrical fires, even in environments with heavy electrical loads. As a result, it provides a reliable barrier that enhances both equipment durability and overall system safety during prolonged operation.

Low Smoke and Toxicity

In situations where fire hazards occur, phenolic laminates stand out for their low smoke and low toxicity emissions. Unlike many plastic-based materials that release dense, harmful fumes, phenolic composites generate minimal smoke and non-corrosive gases. This performance is particularly critical in confined control rooms, transportation systems, or industrial facilities where air quality and human safety are paramount. By reducing smoke opacity and toxic release, phenolic laminates help maintain visibility and minimize health risks during emergency evacuation or firefighting efforts.

Self-Extinguishing Properties

A key advantage of phenolic paper laminate is its inherent self-extinguishing behavior, which significantly improves fire safety. When exposed to open flames, the material chars superficially but does not sustain combustion once the ignition source is removed. This property prevents flame spread and limits damage to surrounding components within control panels. The combination of heat resistance and self-extinguishing capability makes phenolic laminates an ideal choice for critical electrical applications that demand strict fire safety compliance and long-term operational reliability.

Durability and Cost-Effectiveness in Industrial Use

Resistance to Wear and Tear

Phenolic paper laminate offers outstanding resistance to abrasion, impact, and general wear, making it ideal for demanding industrial environments. Its dense and durable structure allows switch panels to retain their mechanical integrity and surface finish even after years of heavy operation. Unlike conventional plastics that may crack or erode under friction, phenolic laminates maintain smooth surfaces and consistent performance. This exceptional resilience extends the service life of equipment and minimizes the need for frequent maintenance or replacement.

Chemical Resistance

In industrial facilities where exposure to oils, solvents, and corrosive agents is common, phenolic laminates deliver superior chemical resistance. The cured resin matrix prevents absorption or degradation when in contact with harsh substances, preserving both appearance and electrical insulation properties. This stability under chemical stress ensures reliable operation of switch panels in manufacturing plants, refineries, and laboratories. As a result, phenolic laminates provide long-term protection against environmental damage, contributing to safer and more durable electrical systems.

Long-Term Cost Savings

Although phenolic paper laminate may represent a higher upfront investment, its superior performance and durability lead to considerable cost savings over time. Its resistance to wear, chemicals, and heat significantly reduces the need for maintenance, repair, and replacement. Additionally, the reduced downtime associated with material failures enhances productivity in industrial operations. Over the lifespan of equipment, phenolic laminates offer excellent value by combining reliability, longevity, and reduced operational costs - making them a highly economical choice for industrial applications.

Conclusion

Phenolic paper laminate stands out as an exceptional material for switch panels, offering a unique combination of electrical insulation, fire retardancy, and durability. Its superior performance in challenging environments, coupled with long-term cost-effectiveness, makes it an ideal choice for industries demanding reliable and safe electrical control systems. As technology advances, phenolic laminates continue to evolve, promising even greater benefits for future applications in switch panel design and manufacturing.

FAQs

What makes phenolic paper laminate suitable for switch panels?

Phenolic paper laminate is ideal for switch panels due to its excellent electrical insulation properties, fire retardancy, and durability. It withstands high temperatures, resists chemicals and moisture, and maintains dimensional stability, ensuring long-lasting performance in electrical applications.

How does phenolic paper laminate contribute to electrical safety?

Phenolic paper laminate enhances electrical safety through its high dielectric strength, arc resistance, and self-extinguishing properties. It prevents current leakage, withstands electrical arcs, and minimizes fire risks, making it a safe choice for switch panels.
