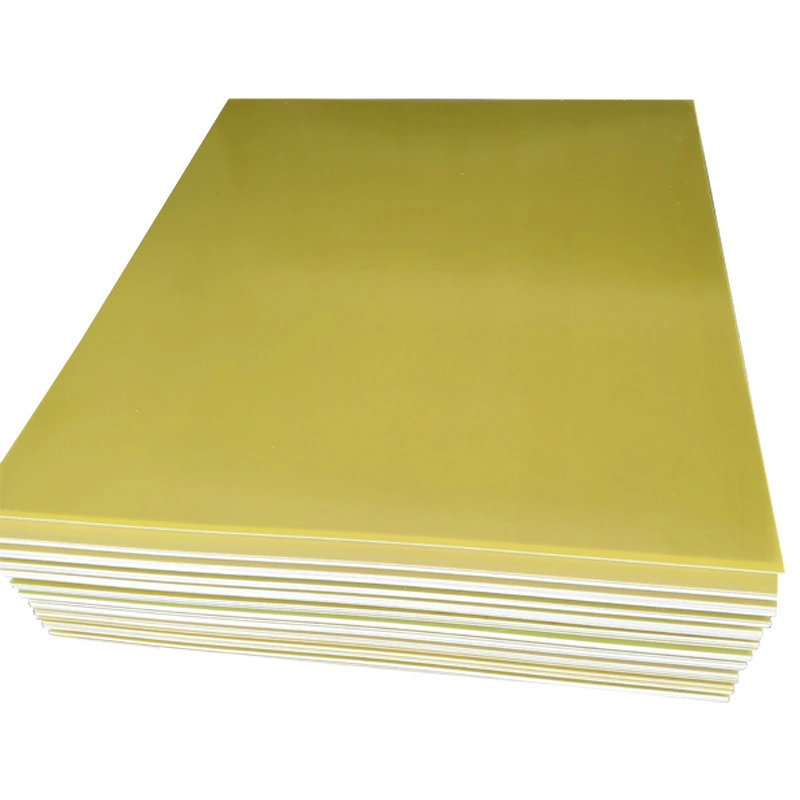

Physical and Chemical Properties of 3240 Epoxy Sheet

A Comprehensive Overview of Mechanical, Thermal, and Electrical Characteristics

Mechanical Prowess: Strength and Durability

3240 epoxy sheet boasts impressive mechanical properties that contribute to its widespread use in industrial applications. The material exhibits high tensile strength, typically ranging from 300 to 400 MPa, allowing it to withstand substantial loads without failure. Its flexural strength, often exceeding 400 MPa, ensures resistance to bending and deformation under stress. The sheet's compressive strength, usually around 350 MPa, enables it to maintain its structural integrity under high-pressure conditions.

The material's impact resistance is another notable feature, with Izod impact values often surpassing 800 J/m. This property makes 3240 epoxy sheet an excellent choice for applications requiring resilience against sudden shocks or impacts. Additionally, the sheet demonstrates low creep characteristics, maintaining its dimensional stability even under prolonged stress, which is crucial for precision components and structural applications.

Thermal Resilience: Performance Under Heat

The thermal properties of 3240 epoxy sheet contribute significantly to its versatility in various industrial environments. The material maintains its structural integrity at continuous operating temperatures up to 130°C, with short-term exposure capabilities reaching 180°C. This heat resistance is complemented by a low coefficient of thermal expansion, typically around 14-17 × 10^-6 /°C, which minimizes dimensional changes due to temperature fluctuations.

3240 epoxy sheet also exhibits good thermal conductivity, usually in the range of 0.3-0.5 W/m·K. This property allows for efficient heat dissipation in electrical and electronic applications, preventing localized hot spots that could compromise performance or safety. The material's thermal class is often rated as Class B (130°C) according to IEC standards, indicating its suitability for use in moderately high-temperature environments.

Electrical Excellence: Insulation and Dielectric Properties

One of the most valued attributes of 3240 epoxy sheet is its exceptional electrical insulation properties. The material boasts a high dielectric strength, typically exceeding 20 kV/mm, which enables it to effectively prevent electrical breakdown even under high voltage conditions. Its volume resistivity, often greater than 10^14 ohm·cm, ensures minimal current leakage through the material.

The dielectric constant of 3240 epoxy sheet usually falls between 4.0 and 5.5 at 1 MHz, providing a good balance between insulation and signal propagation characteristics. This property, combined with a low dissipation factor (typically less than 0.03 at 1 MHz), makes the material well-suited for high-frequency applications where signal integrity is crucial. The sheet's arc resistance, often exceeding 180 seconds, further enhances its reliability in electrical systems prone to arcing or sparking.

How Does Its Chemical Structure Determine Resistance to Solvents and Oils?

Molecular Architecture: The Foundation of Resistance

The chemical resistance of 3240 epoxy sheet stems from its unique molecular structure. The epoxy resin matrix is characterized by a highly cross-linked network of polymer chains. This three-dimensional structure is formed during the curing process, where epoxide groups react with hardening agents to create strong covalent bonds. The resulting molecular architecture presents a formidable barrier against chemical penetration and degradation.

The density of cross-linking in 3240 epoxy sheet is particularly high, leading to a tight molecular network that significantly restricts the movement of solvent or oil molecules through the material. This structural characteristic is fundamental to the sheet's ability to maintain its integrity when exposed to a wide range of chemicals, including both polar and non-polar substances.

Interaction with Solvents: A Molecular Perspective

When exposed to solvents, the 3240 epoxy sheet's resistance is primarily due to its low free volume and the strong intermolecular forces within the polymer matrix. The tightly packed molecular structure limits the ability of solvent molecules to penetrate and swell the material. Additionally, the polar nature of the epoxy groups in the polymer backbone can repel non-polar solvents, further enhancing resistance.

For polar solvents, the sheet's resistance is attributed to the high degree of cross-linking, which prevents the solvent molecules from effectively solvating the polymer chains. This resistance is particularly evident in the material's low absorption rates for water and other polar solvents, typically less than 0.1% by weight after 24 hours of immersion.

Oil Resistance: Hydrophobic Properties at Play

The oil resistance of 3240 epoxy sheet is largely due to its inherent hydrophobic nature. The non-polar segments of the epoxy polymer, particularly those derived from bisphenol A, contribute to this hydrophobicity. These segments create regions within the material that are incompatible with oil molecules, effectively repelling them and preventing absorption or degradation.

Furthermore, the sheet's surface characteristics play a role in its oil resistance. The cured epoxy surface typically exhibits low surface energy, which reduces the wetting and spreading of oils. This property, combined with the material's dense cross-linked structure, results in excellent resistance to a wide range of industrial oils, lubricants, and hydraulic fluids.

Key Differentiators from Other Industrial Laminates like G10 or Phenolic

Performance in Extreme Conditions

3240 epoxy sheet distinguishes itself from other industrial laminates through its superior performance under extreme conditions. Unlike G10, which is limited to lower temperature applications, 3240 epoxy sheet maintains its properties at higher temperatures, often up to 130°C continuously. This thermal stability surpasses that of phenolic laminates, which tend to degrade more rapidly at elevated temperatures.

In terms of moisture resistance, 3240 epoxy sheet outperforms both G10 and phenolic laminates. Its lower water absorption rate, typically less than 0.1% compared to G10's 0.8% and phenolic's 1-2%, ensures better dimensional stability and electrical properties in humid environments. This characteristic makes 3240 epoxy sheet particularly suitable for applications in marine or high-humidity industrial settings.

Electrical and Mechanical Property Balance

While G10 is known for its excellent electrical insulation properties, 3240 epoxy sheet offers a more balanced combination of electrical and mechanical characteristics. It provides comparable dielectric strength to G10 but with enhanced mechanical properties, particularly in terms of impact resistance and flexural strength. This balance makes 3240 epoxy sheet a versatile choice for applications requiring both electrical insulation and mechanical robustness.

Compared to phenolic laminates, 3240 epoxy sheet exhibits superior electrical properties, including higher dielectric strength and lower dissipation factor. Mechanically, it offers better machinability and less brittleness than phenolic materials, allowing for more precise fabrication and reduced risk of chipping or cracking during processing or use.

Chemical Resistance and Long-term Durability

The chemical resistance of 3240 epoxy sheet is a significant differentiator from both G10 and phenolic laminates. While G10 offers good chemical resistance, 3240 epoxy sheet typically provides superior resistance to a broader range of chemicals, including strong acids and bases. This enhanced chemical resistance translates to longer service life in corrosive environments.

In terms of long-term durability, 3240 epoxy sheet maintains its properties over extended periods better than phenolic laminates, which can experience gradual degradation and outgassing. The stability of 3240 epoxy sheet's physical and electrical properties over time makes it a preferred choice for applications requiring long-term reliability, such as in electrical switchgear or industrial process equipment.

Conclusion

3240 epoxy sheet stands out as a high-performance industrial laminate with an impressive array of physical and chemical properties. Its exceptional mechanical strength, thermal stability, and electrical insulation characteristics make it suitable for a wide range of demanding applications. The material's unique chemical structure provides excellent resistance to solvents and oils, enhancing its durability in harsh environments. When compared to other industrial laminates, 3240 epoxy sheet offers a superior balance of properties, particularly in extreme conditions and long-term reliability. These attributes position 3240 epoxy sheet as a versatile and dependable material for engineers and manufacturers seeking high-performance solutions in their industrial applications.
