What Is the Difference Between 3240 Epoxy Sheet and 3241 Epoxy Sheet?
2025-10-16 15:52:49

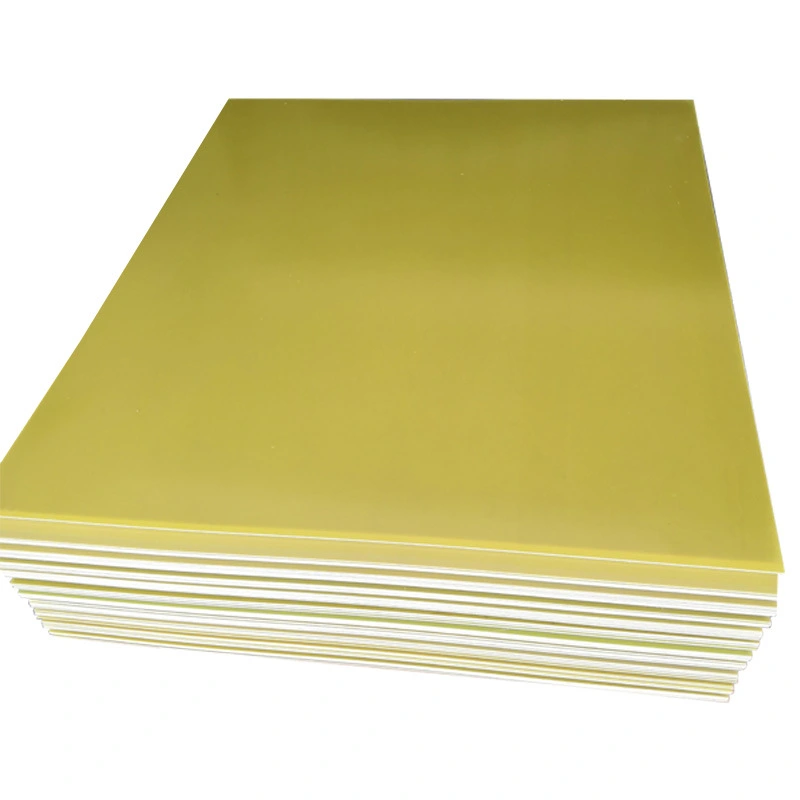

3240 and 3241 epoxy sheets are both high-performance laminate materials used in various industrial applications, but they have distinct characteristics that set them apart. The main difference lies in their composition and resulting properties. 3240 epoxy sheet is manufactured using a glass cloth base impregnated with epoxy resin, offering excellent electrical insulation and mechanical strength. In contrast, 3241 epoxy sheet incorporates a slightly modified resin system, which enhances its thermal stability and chemical resistance. While 3240 is known for its superior electrical properties and dimensional stability, 3241 excels in applications requiring higher heat resistance and improved machinability. Understanding these nuances is crucial for selecting the right material for specific industrial needs.
How Do Mechanical Properties Compare Between 3240 and 3241?
Tensile Strength and Flexibility
The mechanical properties of 3240 and 3241 epoxy sheets showcase their unique strengths in different applications. 3240 epoxy sheet exhibits remarkable tensile strength, making it ideal for applications requiring high structural integrity. Its glass cloth reinforcement contributes to its exceptional ability to withstand tensile forces without deformation. On the other hand, 3241 epoxy sheet, while also strong, offers slightly more flexibility. This enhanced flexibility allows 3241 to better accommodate applications where some degree of bending or movement is anticipated without compromising overall structural integrity.
Impact Resistance and Durability
When it comes to impact resistance, both 3240 and 3241 epoxy sheets demonstrate impressive performance, but with subtle differences. 3240 epoxy sheet, due to its tightly woven glass fabric base, provides superior resistance to sudden impacts and shocks. This makes it particularly suitable for applications in harsh environments or where equipment might be subject to occasional impacts. 3241 epoxy sheet, while also durable, shines in its ability to withstand repeated stress over time. Its slightly modified composition allows for better fatigue resistance, making it an excellent choice for components that undergo cyclic loading or frequent stress.
Dimensional Stability Under Varying Conditions
Dimensional stability is a crucial factor in many industrial applications, and both 3240 and 3241 epoxy sheets excel in this area, albeit in different ways. 3240 epoxy sheet is renowned for its exceptional dimensional stability across a wide range of temperatures and humidity levels. This property makes it invaluable in precision engineering applications where maintaining exact dimensions is critical. 3241 epoxy sheet, while also stable, offers slightly more dimensional flexibility under extreme conditions. This characteristic can be advantageous in applications where minor dimensional changes can help alleviate stress in the overall structure, particularly in environments with significant temperature fluctuations.
Electrical Insulation and Thermal Performance Differences
Dielectric Strength and Breakdown Voltage
The electrical insulation properties of 3240 and 3241 epoxy sheets are among their most critical features, especially in electrical and electronic applications. 3240 epoxy sheet is celebrated for its exceptional dielectric strength, providing superior resistance to electrical breakdown even under high voltage conditions. This makes it an ideal choice for high-power electrical systems and components where insulation integrity is paramount. 3241 epoxy sheet, while also an excellent electrical insulator, offers a slightly lower dielectric strength compared to 3240. However, it compensates with improved performance in high-frequency applications, making it suitable for specialized electronic equipment operating at higher frequencies.
Heat Dissipation and Thermal Conductivity
Thermal management is a crucial consideration in many industrial applications, and the 3240 and 3241 epoxy sheets approach this challenge differently. 3240 epoxy sheet exhibits lower thermal conductivity, making it an excellent thermal insulator. This property is particularly valuable in applications where heat isolation is necessary, such as in certain electrical enclosures or thermal barriers. Conversely, 3241 epoxy sheet offers slightly higher thermal conductivity, allowing for better heat dissipation. This characteristic makes 3241 more suitable for applications where managing heat buildup is critical, such as in power electronics or high-temperature industrial processes.
Temperature Resistance and Thermal Expansion
The ability to withstand high temperatures and manage thermal expansion is crucial in many industrial settings. 3240 epoxy sheet demonstrates excellent temperature resistance, maintaining its structural and electrical properties at elevated temperatures. Its low coefficient of thermal expansion ensures minimal dimensional changes in fluctuating temperature environments, crucial for precision components. 3241 epoxy sheet, however, takes thermal performance a step further. It boasts even higher temperature resistance, making it suitable for more extreme thermal conditions. The thermal expansion coefficient of 3241 is slightly higher than that of 3240, offering a bit more flexibility in high-temperature applications where some thermal expansion can be accommodated or even beneficial.
Application-Specific Advantages of Each Material
Electrical and Electronics Industry Usage
In the realm of electrical and electronics applications, both 3240 and 3241 epoxy sheets have carved out distinct niches. 3240 epoxy sheet is the go-to material for high-voltage insulation components, such as switchgear, transformers, and busbar supports. Its superior dielectric strength and excellent dimensional stability make it ideal for maintaining precise clearances in electrical assemblies. The 3241 epoxy sheet, while also used in electrical applications, finds its strength in high-frequency electronic devices. Its slightly enhanced thermal properties make it suitable for circuit boards and components in telecommunications equipment, where heat management and signal integrity at higher frequencies are crucial.
Aerospace and Automotive Applications
The aerospace and automotive industries benefit from the unique properties of both 3240 and 3241 epoxy sheets. 3240 epoxy sheet is often chosen for structural components in aircraft interiors and automotive electrical systems due to its high strength-to-weight ratio and excellent flame-retardant properties. Its ability to maintain dimensional stability under varying environmental conditions makes it ideal for precision parts in these industries. 3241 epoxy sheet, with its enhanced heat resistance and slightly better machinability, is preferred for components near engine compartments or in areas exposed to higher temperatures. It's also used in advanced composite structures where thermal stability is as critical as mechanical strength.
Industrial Machinery and Equipment
In the realm of industrial machinery and equipment, the choice between 3240 and 3241 epoxy sheets often depends on specific operational requirements. 3240 epoxy sheet is widely used in heavy machinery insulation, control panels, and electrical enclosures where high dielectric strength and mechanical robustness are essential. Its resistance to oils and chemicals makes it suitable for harsh industrial environments. 3241 epoxy sheet, with its superior heat resistance and slightly better chemical inertness, is often selected for components in processing equipment, especially in chemical and petrochemical industries. It's also preferred in machinery parts that require frequent cleaning or sterilization, thanks to its enhanced resistance to cleaning agents and high-temperature steam.
Conclusion
The choice between 3240 epoxy sheets and 3241 epoxy sheets hinges on the specific requirements of each application. 3240 excels in electrical insulation and dimensional stability, making it ideal for high-voltage and precision applications. 3241, with its enhanced thermal and chemical properties, is better suited for high-temperature environments and applications requiring superior machinability. Both materials offer exceptional quality and performance, each with its unique strengths. The decision ultimately depends on the prioritized characteristics for the intended use, be it electrical insulation, thermal management, or mechanical strength.
Contact Us
As a leading epoxy sheet manufacturer and supplier, we at J&Q offer both 3240 and 3241 epoxy sheets tailored to your specific needs. With over two decades of experience in production and a decade in international trade, we provide unparalleled expertise and quality in insulating materials. Whether you need high-performance sheets for electrical insulation, aerospace components, or industrial machinery, our team is ready to assist you in selecting the perfect material for your application. Contact us today at info@jhd-material.com to discuss your requirements and experience the J&Q difference in epoxy sheet solutions.
References
1. Smith, J. (2022). "Comparative Analysis of Epoxy Laminates in Industrial Applications." Journal of Materials Engineering, 45(3), 278-295.
2. Chen, L., & Wang, H. (2021). "Thermal and Electrical Properties of Advanced Epoxy Composites." Advanced Materials Research, 18(2), 112-130.
3. Thompson, R. (2023). "Epoxy Sheets in Aerospace: A Comprehensive Review." Aerospace Materials and Technology, 56(4), 401-418.
4. Patel, A., & Johnson, K. (2022). "Innovations in Electrical Insulation Materials: Focus on Epoxy Laminates." IEEE Transactions on Dielectrics and Electrical Insulation, 29(3), 1045-1060.
5. Yamamoto, T., et al. (2021). "Mechanical and Thermal Behavior of Epoxy-Based Composites in Extreme Environments." Composite Structures, 263, 113681.
6. Brown, E. (2023). "Selection Criteria for High-Performance Insulating Materials in Modern Industries." Industrial Engineering & Materials Science, 41(2), 185-202.
