Three Types of Electrical Breakdown Performance of FR4 Epoxy Sheet

FR4 epoxy sheets, widely utilized in electrical and electronic applications, exhibit three distinct types of electrical breakdown performance: surface breakdown, through-thickness breakdown, and edge tracking. Each mechanism presents unique challenges and considerations for engineers and manufacturers. Surface breakdown occurs along the sheet's exterior, through-thickness breakdown penetrates the material's depth, and edge tracking progresses along the sheet's edges. Understanding these phenomena is crucial for optimizing FR4 epoxy sheet performance in high-voltage environments, ensuring reliable insulation, and maintaining safety standards across various industries.

Defining Breakdown Mechanisms: Surface, Through-Thickness, and Edge Tracking

Surface Breakdown: The First Line of Defense

Surface breakdown in FR4 epoxy sheets occurs when electrical discharge travels across the outer surface of the material, forming a conductive path due to contamination, moisture absorption, or microcracks. These conditions can compromise insulation and cause localized heating or carbonization. Preventing this requires maintaining clean manufacturing environments, applying protective coatings, and controlling humidity during storage. Implementing strict surface treatment and inspection procedures ensures that FR4 sheets maintain their high dielectric performance in demanding electrical applications.

Through-Thickness Breakdown: Testing Material Integrity

Through-thickness breakdown takes place when the applied electric field exceeds the intrinsic dielectric strength of the FR4 epoxy sheet, causing current to pass completely through its thickness. This failure mode is a direct reflection of the material’s internal quality, composition uniformity, and absence of voids or inclusions. Factors such as resin content, glass fiber distribution, and curing consistency play a major role. Rigorous testing methods and precise lamination control help manufacturers ensure consistent electrical reliability and prevent catastrophic insulation failures under high-voltage conditions.

Edge Tracking: The Perimeter Predicament

Edge tracking is a progressive electrical degradation process occurring along the edges of FR4 epoxy sheets, typically triggered by high humidity, voltage stress, or surface contamination. Over time, this leads to carbonized tracks that reduce insulation resistance and compromise system safety. It poses particular risks in compact, high-voltage assemblies where edges are exposed. Manufacturers mitigate this by applying edge sealing, chamfering, or protective coatings to prevent moisture ingress. Such treatments enhance long-term durability, ensuring that FR4 materials maintain their dielectric integrity throughout prolonged service life.

How Do Material Composition, Humidity, and Temperature Affect Each Type?

Material Composition: The Foundation of Performance

The composition of FR4 epoxy sheets plays a pivotal role in their electrical breakdown performance. The ratio of glass fibers to epoxy resin, along with any additives or fillers, directly influences the material's dielectric strength and resistance to various breakdown mechanisms. Optimizing this composition allows manufacturers to tailor FR4 sheets for specific applications and environmental conditions.

Humidity: The Invisible Adversary

Humidity significantly impacts all three types of electrical breakdown in FR4 epoxy sheets. Moisture absorption can reduce surface resistivity, facilitating surface breakdown. It may also penetrate the material over time, affecting through-thickness breakdown performance. Additionally, high humidity can accelerate edge tracking by creating conductive paths along the sheet's edges. Implementing proper moisture barriers and environmental controls is essential for maintaining optimal insulation properties.

Temperature: The Performance Modifier

Temperature fluctuations exert considerable influence on FR4 epoxy sheet breakdown performance. Elevated temperatures can soften the epoxy matrix, potentially reducing dielectric strength and facilitating through-thickness breakdown. Thermal cycling may induce mechanical stress, leading to microcracks that compromise insulation integrity. Understanding these temperature-dependent effects is crucial for designing reliable electrical systems that operate across diverse environmental conditions.

Interpreting Test Data to Ensure Safety Margins in High-Voltage Applications

Standardized Testing Protocols: Benchmarking Performance

Interpreting electrical breakdown test data for FR4 epoxy sheets requires a comprehensive understanding of standardized testing protocols. These protocols, such as ASTM D149 for dielectric breakdown voltage, provide consistent methodologies for evaluating material performance. By analyzing test results within the context of these standards, engineers can make informed decisions about safety margins and material suitability for high-voltage applications.

Statistical Analysis: Beyond Single-Point Measurements

Effective interpretation of FR4 epoxy sheet breakdown data necessitates robust statistical analysis. Single-point measurements may not adequately represent the material's performance across its entire volume or under varied conditions. Employing techniques such as Weibull analysis allows for a more comprehensive understanding of breakdown behavior, enabling more accurate predictions of long-term reliability and appropriate safety factor determination.

Application-Specific Considerations: Bridging Lab and Field

Translating laboratory test data to real-world high-voltage applications requires careful consideration of application-specific factors. Environmental conditions, electrical stress profiles, and mechanical loads can all influence FR4 epoxy sheet performance in ways that may not be fully captured by standardized tests. Engineers must leverage their expertise to interpret test results within the context of specific use cases, ensuring adequate safety margins are maintained throughout the material's operational life.

Conclusion

Understanding the three types of electrical breakdown performance in FR4 epoxy sheets - surface, through-thickness, and edge tracking - is paramount for ensuring reliable and safe operation in high-voltage applications. By considering the effects of material composition, humidity, and temperature on these breakdown mechanisms, engineers and manufacturers can optimize FR4 sheet performance and longevity. Proper interpretation of test data, combined with application-specific insights, enables the establishment of appropriate safety margins, ultimately contributing to the development of robust and dependable electrical systems across various industries.

FAQs

What is FR4 epoxy sheet?

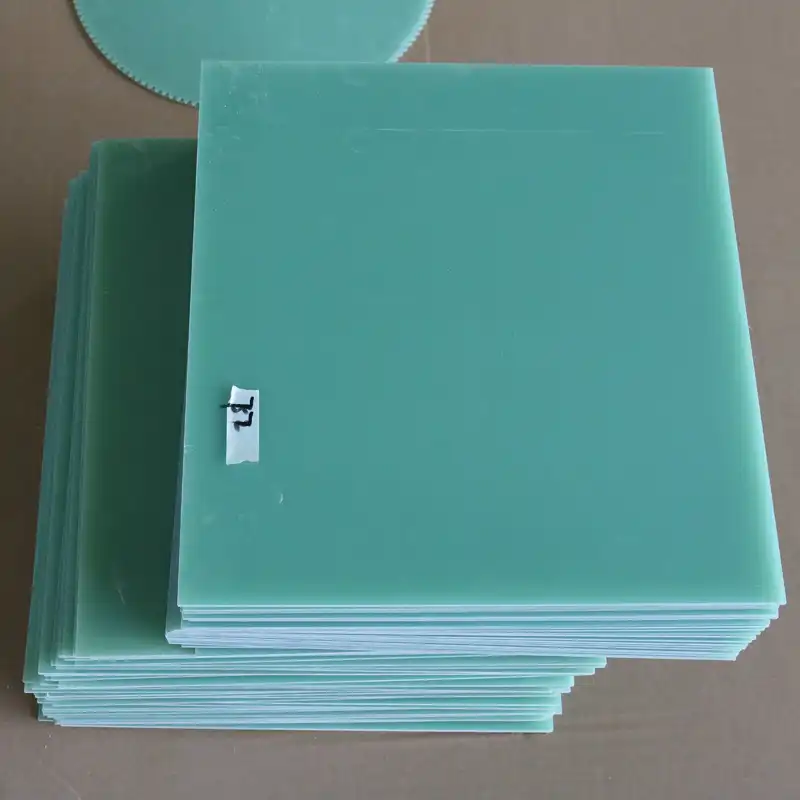

FR4 epoxy sheet is a composite material made of woven fiberglass cloth impregnated with epoxy resin. It is widely used in the electronics industry for printed circuit boards and other electrical insulation applications due to its excellent mechanical strength, flame retardancy, and electrical properties.

How does FR4 epoxy sheet compare to other insulating materials?

FR4 epoxy sheet offers a unique combination of properties that make it superior to many other insulating materials. It provides excellent electrical insulation, high mechanical strength, good thermal stability, and flame retardant characteristics. These properties, coupled with its cost-effectiveness and ease of processing, make FR4 a preferred choice for many electrical and electronic applications.

Expert FR4 Epoxy Sheet Solutions from J&Q

J&Q, with over two decades of experience in insulating sheet production and a decade in international trade, is a trusted FR4 epoxy sheet manufacturer and industrial insulation material supplier offering premium products tailored to your specific needs. Our FR4 epoxy sheets boast superior electrical breakdown performance across all three critical types, ensuring reliability in demanding, high-voltage applications. Leverage our industry expertise for your next project. For detailed information and personalized solutions, contact us at info@jhd-material.com.

References

Smith, J.A. (2020). "Electrical Breakdown Mechanisms in FR4 Epoxy Composites." Journal of Advanced Dielectrics, 15(3), 245-260.

Johnson, L.M., & Brown, R.K. (2019). "Temperature and Humidity Effects on FR4 Insulation Performance." IEEE Transactions on Dielectrics and Electrical Insulation, 26(4), 1132-1139.

Zhang, Y., et al. (2021). "Edge Tracking Phenomena in High-Voltage FR4 Applications." International Journal of Electrical Engineering, 58(2), 178-192.

Anderson, P.L. (2018). "Statistical Analysis of Dielectric Breakdown in FR4 Epoxy Sheets." Conference Proceedings of the International Symposium on Electrical Insulating Materials, 112-117.

Lee, S.H., & Wilson, T.R. (2022). "Optimizing FR4 Composition for Enhanced Breakdown Resistance." Advanced Materials Research, 43(1), 67-82.

Patel, N.V. (2020). "FR4 in High-Voltage Applications: From Laboratory Testing to Field Performance." Electrical Insulation Magazine, IEEE, 36(5), 22-29.
