Why FR4 Insulation Boards Are the Go-To for Electrical Safety?

The Composition and Properties of FR4 Insulation Boards

Material Composition of FR4 Boards

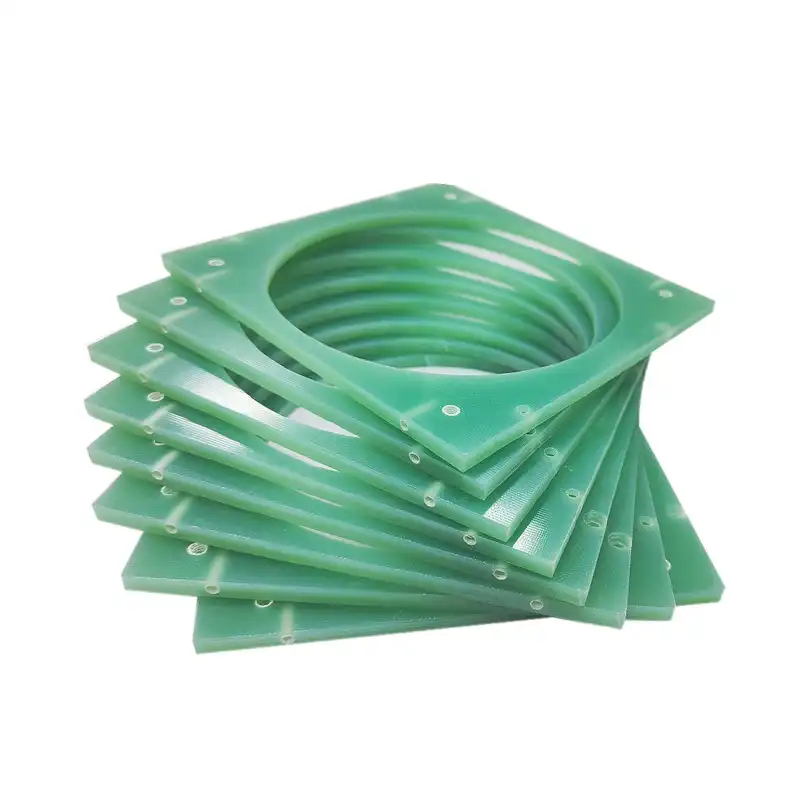

FR4 insulation boards are crafted from a carefully engineered composite material. The base of these boards consists of woven fiberglass cloth, which provides structural integrity and mechanical strength. This fiberglass substrate is impregnated with an epoxy resin system, typically a brominated flame retardant epoxy. The combination of these materials results in a laminate that possesses a unique set of properties ideal for electrical applications.

The epoxy resin used in FR4 boards is specially formulated to enhance flame retardancy. It often contains additives that release flame-inhibiting gases when exposed to high temperatures, effectively suppressing fire propagation. This feature is crucial in preventing electrical fires and protecting surrounding components in case of overheating or short circuits.

The manufacturing process of FR4 boards involves multiple layers of resin-impregnated fiberglass cloth, which are pressed and cured under controlled heat and pressure. This process ensures uniform distribution of the resin throughout the fiberglass substrate, resulting in a homogeneous material with consistent properties across its entire structure.

Key Physical and Electrical Properties

FR4 insulation boards boast an impressive array of physical and electrical properties that make them suitable for a wide range of applications. One of the most notable characteristics is their high dielectric strength, typically ranging from 20 to 80 kV/mm, depending on the specific grade and thickness. This property ensures excellent electrical insulation, preventing current leakage and breakdown even under high voltage conditions.

The thermal stability of FR4 boards is another crucial aspect. They maintain their structural integrity and electrical properties at temperatures up to 130°C, with some specialized grades capable of withstanding even higher temperatures. This thermal resilience is essential in environments where electrical components generate significant heat during operation.

Mechanically, FR4 boards exhibit remarkable strength and rigidity. They have a flexural strength of approximately 310 MPa and a tensile strength of around 280 MPa. These properties ensure that the boards can withstand mechanical stresses during assembly, installation, and operation of electrical devices.

Flame Retardancy and Safety Standards

The flame retardant properties of FR4 boards are paramount to their widespread adoption in electrical applications. The "FR" in FR4 stands for "Flame Retardant," and these boards are designed to meet or exceed various international fire safety standards. One of the most recognized tests is the UL 94 V-0 rating, which indicates that the material self-extinguishes within 10 seconds after ignition and does not produce flaming drips.

FR4 boards also comply with RoHS (Restriction of Hazardous Substances) regulations, ensuring that they are free from harmful substances such as lead, mercury, and certain brominated flame retardants. This compliance is crucial for manufacturers looking to meet global environmental and safety standards.

The combination of flame retardancy and low toxicity in case of fire makes FR4 boards an excellent choice for applications where safety is paramount, such as in aerospace, automotive, and medical devices. Their ability to inhibit flame spread and minimize the release of toxic gases during combustion significantly enhances the overall safety of electrical systems.

Applications and Advantages of FR4 Insulation Boards

Versatility in Electrical and Electronic Applications

FR4 insulation boards have found their way into a myriad of electrical and electronic applications due to their versatile nature. In the realm of printed circuit boards (PCBs), FR4 serves as the most common substrate material. Its excellent electrical insulation properties, coupled with its ability to maintain dimensional stability during the manufacturing process, make it ideal for multilayer PCBs used in complex electronic devices.

Beyond PCBs, FR4 boards are extensively used in power distribution systems, where their high dielectric strength is crucial. They serve as insulating barriers in switchgear, transformers, and other high-voltage equipment, preventing arcing and ensuring safe operation. In the automotive industry, FR4 boards find applications in electric vehicle battery management systems and control modules, where their flame retardancy and electrical properties contribute to vehicle safety.

The aerospace sector also heavily relies on FR4 insulation boards for avionics and communication systems. The material's lightweight nature, combined with its robust electrical and mechanical properties, makes it suitable for aircraft where weight considerations are paramount. Similarly, in telecommunications infrastructure, FR4 boards are used in base stations and network equipment, providing reliable insulation in environments that demand high performance and durability.

Cost-Effectiveness and Manufacturing Efficiency

One of the significant advantages of FR4 insulation boards is their cost-effectiveness, especially when considering the value they provide in terms of performance and safety. The raw materials used in FR4 production are relatively inexpensive and readily available, contributing to its economic viability for large-scale manufacturing.

The manufacturing process for FR4 boards has been refined over decades, resulting in highly efficient production methods. Advanced lamination techniques and quality control measures ensure consistent output with minimal defects. This efficiency translates to lower production costs and faster turnaround times, making FR4 an attractive option for manufacturers across various industries.

Furthermore, FR4 boards are amenable to a wide range of fabrication processes. They can be easily drilled, routed, and machined to create complex shapes and patterns. This machinability reduces the need for specialized tooling and allows for greater design flexibility. The material's compatibility with various surface finishes and plating processes also contributes to its versatility in manufacturing, enabling customization for specific application requirements.

Long-Term Reliability and Performance

The long-term reliability of FR4 insulation boards is a key factor in their widespread adoption. These boards exhibit excellent resistance to environmental factors such as humidity, chemicals, and temperature fluctuations. This stability ensures that electrical devices and systems maintain their performance characteristics over extended periods, even in challenging operating conditions.

FR4 boards also demonstrate impressive dimensional stability, with minimal warpage or expansion under thermal stress. This property is crucial for maintaining the integrity of electrical connections and preventing issues like cracked solder joints or misaligned components in PCBs. The material's low moisture absorption rate further contributes to its reliability, reducing the risk of electrical failures due to moisture ingress.

In terms of electrical performance, FR4 boards maintain consistent dielectric properties over time and across a wide frequency range. This characteristic is particularly important in high-frequency applications, where signal integrity is critical. The material's low dielectric loss factor ensures minimal signal attenuation, making it suitable for use in high-speed digital circuits and RF applications.

Future Trends and Innovations in FR4 Technology

Advancements in FR4 Formulations

The field of FR4 technology is continuously evolving, with researchers and manufacturers exploring new formulations to enhance its properties. One area of focus is the development of halogen-free FR4 variants. These new formulations aim to maintain the excellent flame retardancy of traditional FR4 while eliminating brominated compounds, addressing growing environmental concerns and stricter regulations.

Another trend is the creation of high-performance FR4 grades with improved thermal and electrical characteristics. These advanced formulations incorporate novel fillers and resin systems to achieve higher glass transition temperatures (Tg) and lower dielectric constants. Such improvements are crucial for applications in 5G telecommunications, where high-frequency performance and thermal management are critical.

Researchers are also exploring nanocomposite FR4 materials, incorporating nanoscale additives like carbon nanotubes or graphene. These additives have the potential to significantly enhance the thermal conductivity and mechanical strength of FR4 boards, opening up new possibilities for heat dissipation in high-power electronics.

Integration with Smart Manufacturing Processes

The production of FR4 insulation boards is becoming increasingly integrated with smart manufacturing processes. Industry 4.0 technologies are being applied to FR4 production lines, enabling real-time monitoring and control of manufacturing parameters. This integration results in improved quality consistency, reduced waste, and enhanced traceability.

Advanced analytics and machine learning algorithms are being employed to optimize the curing process of FR4 laminates, ensuring optimal cross-linking of the epoxy resin. These technologies can predict and adjust for variations in raw materials, environmental conditions, and equipment performance, leading to more consistent and higher-quality FR4 boards.

3D printing and additive manufacturing techniques are also being explored for FR4-based materials. While still in early stages, these technologies could potentially allow for the creation of complex, three-dimensional FR4 structures with tailored properties, opening up new design possibilities for electrical insulation applications.

Sustainability and Recycling Initiatives

As environmental concerns continue to grow, the FR4 industry is placing increased emphasis on sustainability. Efforts are underway to develop more eco-friendly production processes that reduce energy consumption and minimize the use of harmful chemicals. Some manufacturers are exploring bio-based epoxy resins derived from renewable sources as alternatives to petroleum-based resins traditionally used in FR4 production.

Recycling of FR4 boards is another area of focus. While the composite nature of FR4 makes recycling challenging, new technologies are being developed to separate and recover valuable materials from end-of-life FR4 products. These include pyrolysis techniques to recover fiberglass and metals, as well as chemical processes to break down the epoxy resin.

The concept of circular economy is also influencing FR4 design and production. Manufacturers are exploring ways to create FR4 boards that are easier to disassemble and recycle at the end of their lifecycle. This approach involves considering the entire life cycle of FR4 products, from raw material selection to end-of-life processing, to minimize environmental impact and maximize resource efficiency.

Conclusion

FR4 insulation boards have established themselves as the cornerstone of electrical safety and reliability across numerous industries. Their unique combination of flame retardancy, electrical insulation, and mechanical strength continues to make them indispensable in modern electronics and electrical systems. As technology advances, FR4 boards are evolving to meet new challenges, with innovations in materials science and manufacturing processes paving the way for enhanced performance and sustainability. The ongoing research and development in FR4 technology promise to further extend its capabilities, ensuring that these versatile insulation boards remain at the forefront of electrical safety and innovation for years to come.
