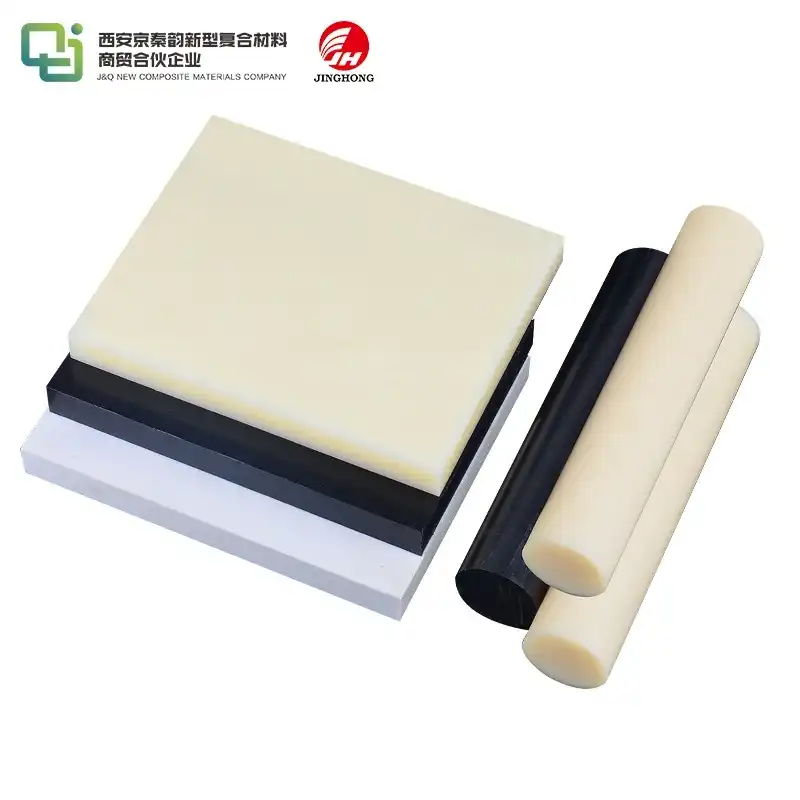

ABS Rod

Product Features:

---

1. High Strength and Durability

The ABS plastic rod is manufactured using high-quality materials, providing excellent strength and durability to withstand various stresses and impacts. It can work under high stress while maintaining its mechanical performance.



2. Lightweight and Easy to Process

The ABS plastic rod is relatively lightweight, making it easy to carry and process. It can be cut, drilled, bent, welded, and bonded, making it suitable for various application scenarios. Additionally, the surface of the ABS plastic rod is smooth and easy to modify, providing flexibility for further processing.



3. Chemical Resistance

The ABS plastic rod has strong resistance to many common chemical substances, including acids, alkalis, solvents, etc., making it suitable for use in chemical laboratories, industrial manufacturing, and more. It also exhibits good electrical insulation properties, suitable for making electronic components and equipment.



4. Good Thermal Stability

The ABS plastic rod exhibits good stability at elevated temperatures, resisting deformation and maintaining its mechanical performance, making it suitable for high-temperature environments. It also has good flame-retardant properties, providing a certain level of protection in the event of a fire.



Primary Applications:

---

1. 3D Printing

The ABS rod is a commonly used material for 3D printing, capable of creating models with excellent detail and strength. It can be used to create robots, parts, and other complex models.



2. Machining

The ABS plastic rod is suitable for the machining and manufacturing of mechanical components such as parts, bearings, and partitions. It can be used to produce various types of machinery and industrial robots.



3. Model Making
Due to its ease of processing and modification, the ABS plastic rod is widely used in model making, handicrafts, and prototype production. It can be used to create resin models, toys, sculptures, and other artworks.



Specifications and Sizes:

---

In addition to conventional sizes, we offer customized ABS plastic rods in a variety of specifications and sizes to meet the requirements of different projects and needs.





Technical Data for ABS Rod

---

No	Test Item	Unit	Test Result	Test Method
1	Density	g/cm³	1.413	ASTM D792-2013
2	Tensile Strength	Mpa	66.6	GB/T 1040.2/1B-2006
3	Elongation Strength	%	24	GB/T 9341-2008
4	Bending Strength	Mpa	102	GB/T 9341-2008
5	Flexural Modulus of Elasticity	Mpa	2820	GB/T 1043.1/1eA-2008
6	Charpy Notched Impact Strength	KJ/m²	7.8	GB/T 13520-1992
7	Ball Impact Strength	/	No Cracking	GB/T 1633-2000
8	Vicat Heat Resistance (1kg,50℃/h)	℃	163	GB/T 22789.1-2008
9	Heating Size Change Rate (longitudinal)	%	0.08	GB/T 22789.1-2008
10	Heating Size Change Rate (transverse)	%	0.04	GB/T 22789.1-2008
11	Rockwell Hardness (R)	/	118	GB/T 3398.2-2008
12	Surface Resistance Coefficient	Ω	8.5 x 10^12	GB/T 31838.2-2019
13	Volume Resistance Coefficient	Ω.m	1.3 x 10^12	GB/T 31838.2-2019
14	Dielectric Constant (1MHZ)	/	3.7	GB/T 1409-2006
15	Dielectric Loss(1MHZ)	/	0.055	GB/T 1409-2006
16	Dielectric Strength	KV/mm	6.93	GB/T 1408.1-2016
17	Friction Coefficient	/	0.18	GB/T 3960-2016

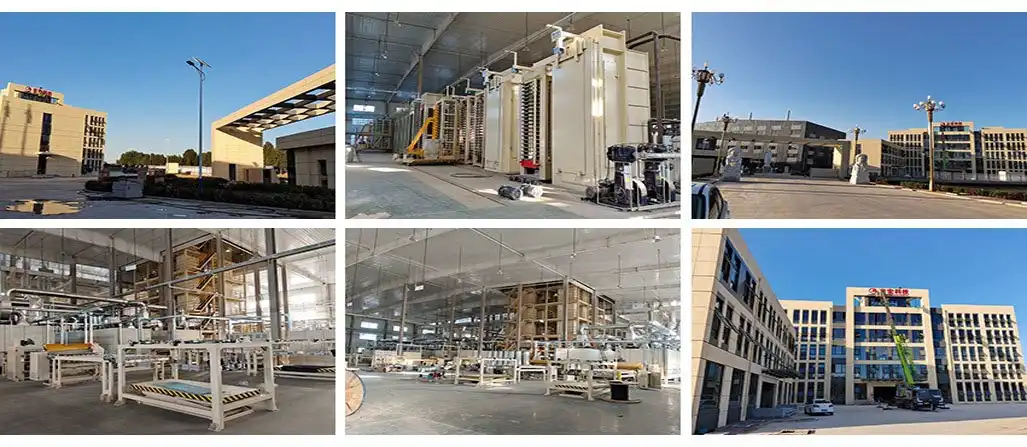

Factory

---

J&Q New Composite Material Group Co., Ltd is a national manufacturer of insulation materials and Epoxy Resin, Engineered Plastic. We have two factories. They are located in Heibei Province. One is Hongda Insulation Materials Factory was founded in 2000. Covering an area of 30000 square meters. Advanced process equipment, complete testing equipment. All of our equipment is fully automated production workshop. Mainly production is 3420 epoxy sheet grade B, Annual output of more than 13000 tons. it is the largest Grade B sheet manufacturer in China. And get honest and trustworthy unit and Consumer Satisfaction Trust Units and other honors issued by the government. we passed the ISO 9001quality management system certification.

The other is Hebei JingHong Electronic Technology Co., Ltd Covering an area of 66667 square meters. A total investment of 200 million CNY, annual output is 30,000 tons. JingHong is a new material company integrating scientific research, development, production, sales, and service. The main products are FR4 sheet,3240 epoxy sheet grade A, phenolic cotton sheet, Bakelite sheet, copper clad laminate, Epoxy Resin, and Engineered Plastic, which have strong insulation products development and production capacity. JingHong has the most advanced glue machine, thermal compressor, and a vertical upper glue machine specially equipped for FR4 sheets can ensure the best and most stable product quality.

We uphold quality first, integrity. Meanwhile, we have more than 20 years of experience in producing and selling insulating sheets and more than 10 years of export experience. Products are exported to Russia, Southeast Asia, the United States, Europe, and other countries, and the annual export volume accounts for 40% of the total export volume in China. What's more, we have our own logistics company, so we can provide one-stop service. Look forward to long-team cooperation.

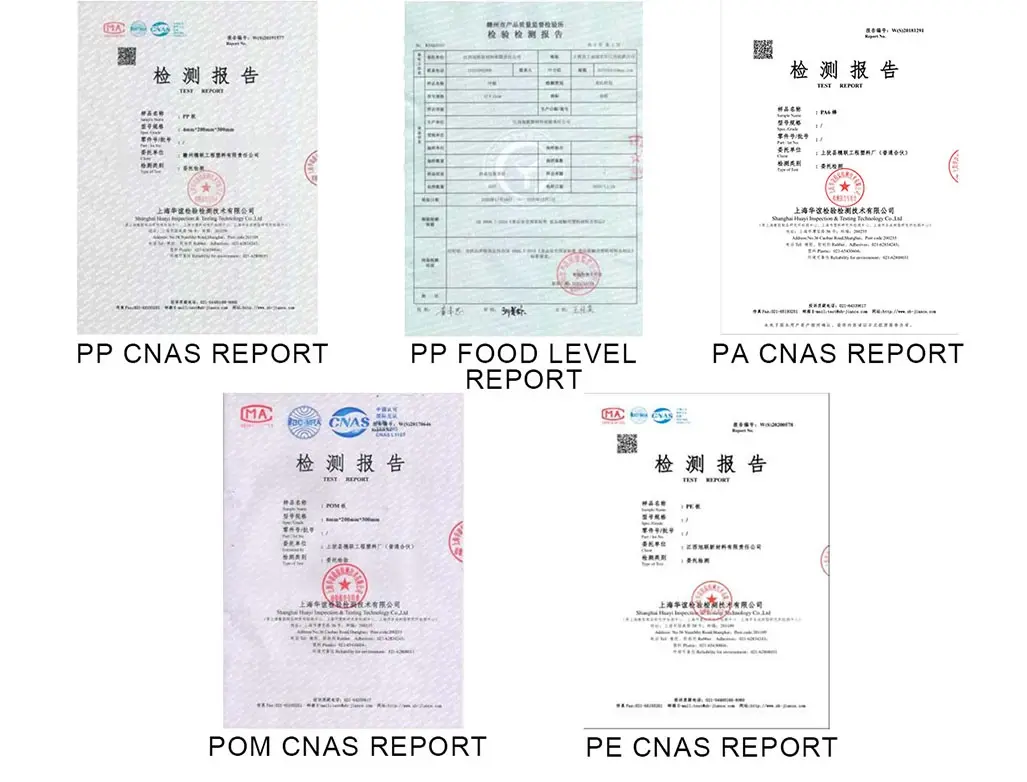

Certification

---



Exhibition

---

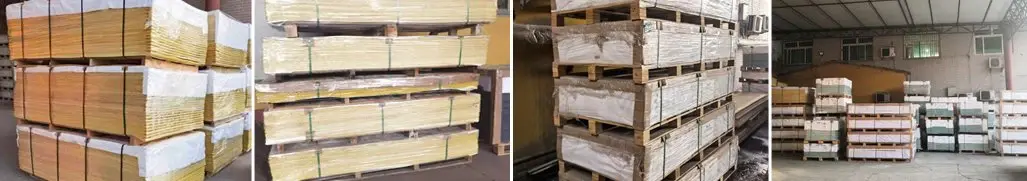

Packaging and Shipping

---



FAQ

---

Q: Are you a trading company or manufacturer?

A: We are a manufacturer.



Q: Can you give me a discount price?

A: It is depending on the quantity.



Q: Which certification do you have?

A: Our factory has passed the certificate of ISO 9001 quality system certification;

The products have passed ROHS test.



Q: Can I get a free sample?

A: Free samples are available.



Q: How long is the delivery time?

A: Generally it is 10-15 days if the goods are in stock, or it is 5-10 days.



Q: What's the payment?

A:Payment<=1000USD, 100% in advance

Payment>=1000USD 30% TT advance, 70% TT before shipping.
