FR4 Epoxy Fiberglass Laminate Sheet

Basic Information:
Brand: Hongda
Materials: Epoxy Resin
Nature Color: Light Green
Thickness: 0.3mm --- 100mm
Regular Size: 1030mm*1230mm
Custom Size: 1030mm*2030mm, 1220mm*2440mm, 1030mm*1030mm 1030mm*2070mm
Packaging: Regular packing, Protect by Pallet
Productivity: 13000 Tons per year
Transportation: Ocean, Land, Air
Payment: T/T
MOQ: 500KG

  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service

Product Introduction

Production Description


FR4 Epoxy Fiberglass Laminate Sheet is a made of professional electronic cloth impregnated with epoxy resin and other materials through high temperature and high pressure. It has high mechanical properties, excellent dielectric properties, good heat resistance, moisture resistance, flame retardant and good machining properties.

FR4 is not a material name, but it is an epoxy sheet of NEMA grade which means nation electrical manufactures association. The code name of FR4 is flame resistance material grade, and it means a material specification of which the resin material must be self-extinguishing after being burned. The flame-retardant grade can reach to UL94-VO, and pass six ROHS-related environmental protection tests.


Application


FR4 epoxy fiberglass laminate sheet is widely used as insulation structural parts in motors and electrical equipment, including various switches, FPC reinforced electrical insulation, carbon film printed circuit boards, computer drilling electricity, mold tools, etc. (PCB test racks), and can be used in transformer oil in humid environment.

1. Test Jig

2. Fixture PCB Testing Jig

3. Insulation Plate

4. Switch insulation Plate

5. Polish Gear

6. Mould in Cloth and Shoes

7. Insulation Part of Bakelite Sheet

8. Lithium Battery Pack

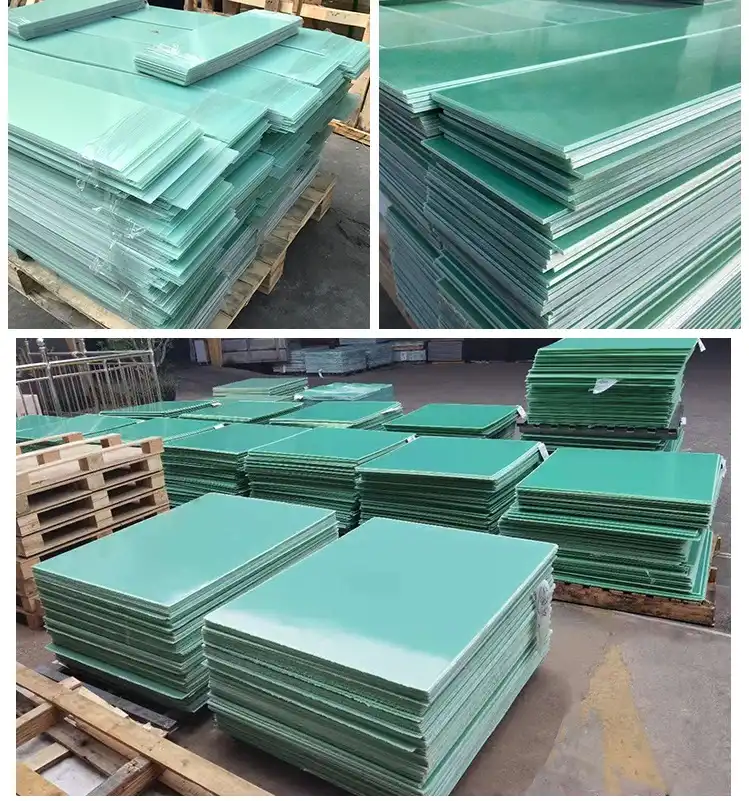

FR4 Epoxy Fiberglass Laminate Sheet

Technical Data for FR4


NO

TEST ITEMS

UNIT

TEST RESULT

TEST METHOD

1

Bending Strength Perpendicular to Laminations

MPa

571

GB/T 1303.4-2009

2

Compressive Strength Perpendicular to Laminations compressive

MPa

548

3

Parallel Layer Impact Strength

(Simply Supported Beam, Gap)

KJ/m²

57.3

4

Tensile Strength

MPa

282

5

Vertical Layer Breakdown Voltage (90℃ + 2℃, 25# transformer oil, 20s step by step boost, φ25mm/φ75mm cylinder electrode system)

kV/mm

16.7

6

Parallel Layer Breakdown Voltage (90℃ + 2℃, 25# transformer oil, 20s step by step boost, φ130mm/φ130mm flat plate electrode system)

kV

>100

7

Relative Permittivity (50HZ)

-

5.40

8

Dielectric Dissipation Factor (50HZ)


7.2*10-3

9

Insulation Resistance after Soaking

Ω

2.2*1013

10

Density

g/cm3

2.01

11

Water Absorption

mg

5.3

12

Barcol Hardness

-

76

GB/T 3854-2005

13

Flammability

Grade

V-0

GB/T 2408-2008

REMARK:

1. NO.2 the sample height is (5.00~5.04) mm;

2. NO.5 the sample thickness is (2.02~2.06) mm;

3. NO.6 the sample size is (100.50~100.52)mm*(25.10~25.15)mm*(5.02~5.06)mm thickness, The electrode spacing is (25.10~25.15)mm;

4. NO.11 the sample size is (49.86~49.90)mm*(49.60~49.63)mm*(2.53~2.65)mm;

5. NO.13 the sample size is (13.04~13.22)mm*(3.04~3.12)mm thickness.
