FR4 Glass Epoxy Sheet

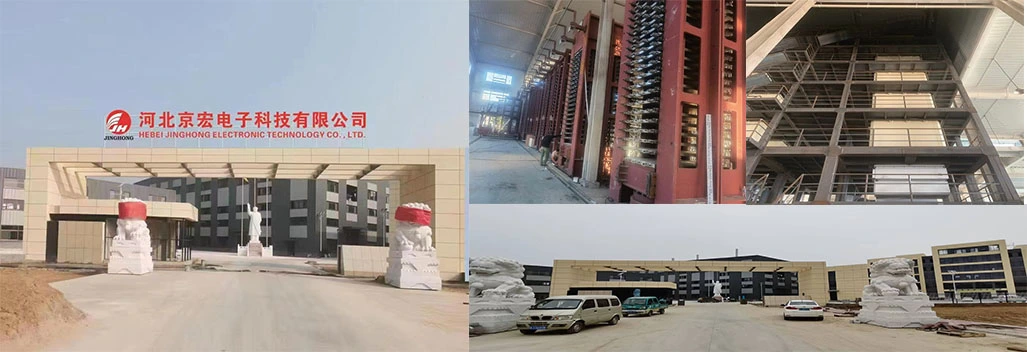

Hebei Jinghong Electronic Technology Co., Ltd. was established in 2018, occupying a site area of 36,300 square meters with a building area of 26,000 square meters. With a total investment of 191 million yuan, the company specializes in the R&D, production, and sales of insulating materials including 3240 epoxy boards, FR-4 boards, bakelite boards, water-green fiberglass boards, and phenolic cloth boards, boasting an annual production capacity of 30,000 tons. The company is an integrated new materials production and processing enterprise encompassing scientific research, development, manufacturing, sales, and service. It has obtained certifications for Quality Management Systems, Environmental Management Systems, and Occupational Health and Safety Management Systems.

FR4 Glass Epoxy Sheet Production Description

---

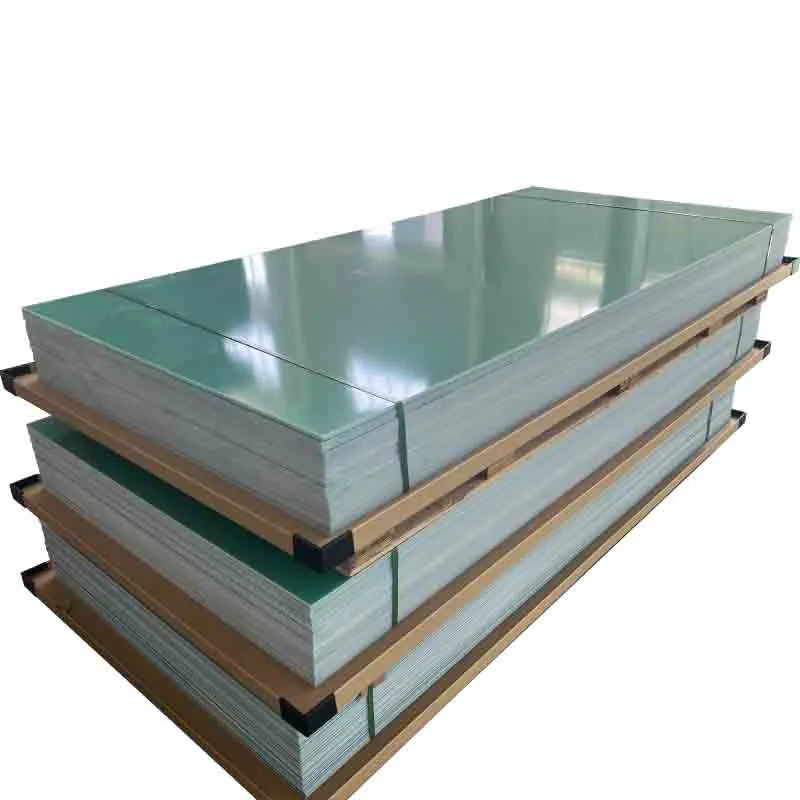

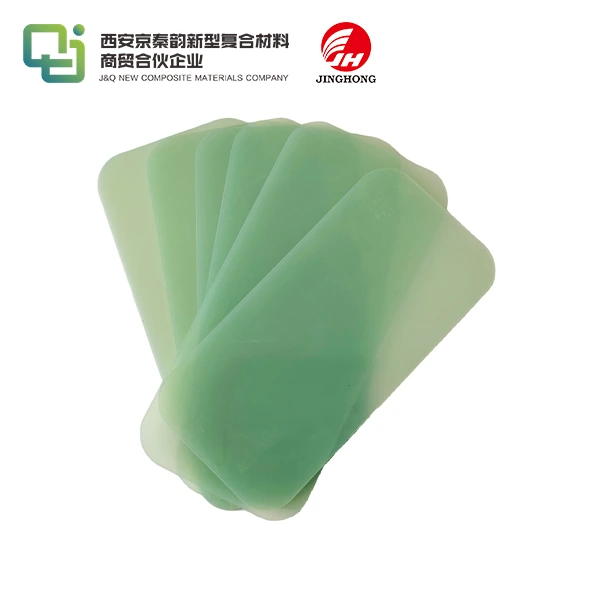

FR4 glass epoxy sheet is made up of a mixture of epoxy resin and glass cloth and the color is yellowish to light green. FR4 has extremely high mechanical strength and dimensional stability over temperature, low water absorption, and superior electrical properties when both wet and dry. These electrical properties make it the most widely used in the electrical field.

Application and Properties

---

FR4 glass epoxy sheet are widely used in the electronics field such as electrical test equipment, electric motor insulation, circuit board and terminal boards. Also it was used as structure components. The reason why the epoxy sheet is used in so many fields is there are lots of amazing properties on it. It has good mechanical strength, low water absorption, Stable properties over wide range of temperatures and humilities, superior electrical properties in wet and dry conditions and fire retardant.

Technical Data for FR4

---

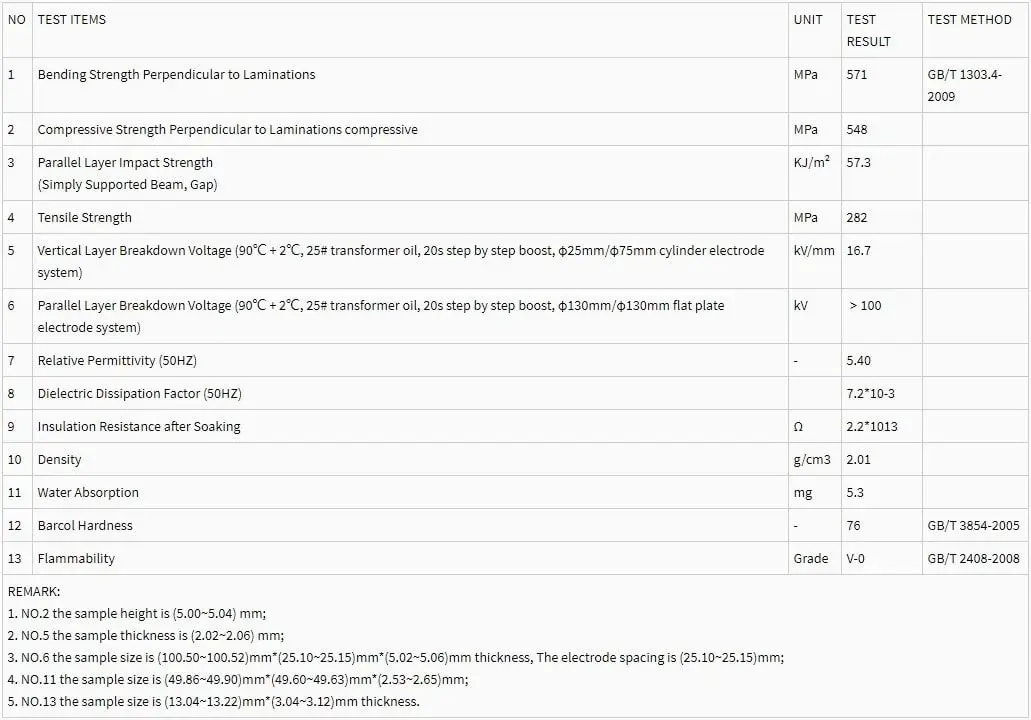

Test Items	Unit	Test Result	Test Method
Bending Strength Perpendicular to Laminations	MPa	571	GB/T 1303.4-2009
Compressive Strength Perpendicular to Laminations compressive	MPa	548
Parallel Layer Impact Strength (Simply Supported Beam, Gap)	KJ/m3	57.3
Tensile Strength	MPa	282
Vertical Layer Breakdown Voltage (90℃ + 2℃, 25# transformer oil, 20s step by step boost, q25mm/p75mm cylinder electrode system)	kV/mm	16.7
Parallel Layer Breakdown Voltage (90℃ + 2℃, 25# transformer oil 20s step by step boost, p130mm/ (p130mm flat plate electrode system)	kV	>100
Relative Permittivity (50HZ)		5.40
Dielectric Dissipation Factor (50HZ)		7.2*10-3
Insulation Resistance after Soaking	Q	2.2*1013
Density	g/cm3	2.01
Water Absorption	mg	5.3
Barcol Hardness		76	GB/T 3854-2005
Flammability	Grade	V-0	GB/T 2408-2008
REMARK: ·NO.2 the sample height is (5.00~5.04) mm; · NO.5 the sample thickness is (2.02~2.06) mm; ·NO.6 the sample size is (100.50~100.52)mm*(25.10~25.15)mm*(5.02~5.06)mm thickness, The electrode spacing is (25.10~25.15)mm; ·NO.11 the sample size is (49.86~49.90)mm*(49.60~49.63)mm*(2.53~2.65)mm; ·NO.13 the sample size is (13.04~13.22)mm*(3.04~3.12)mm thickness.

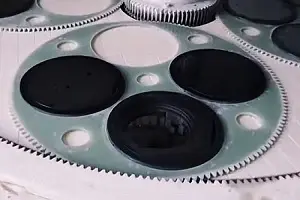

Insulation Plate	Test Jig	Polish Gear

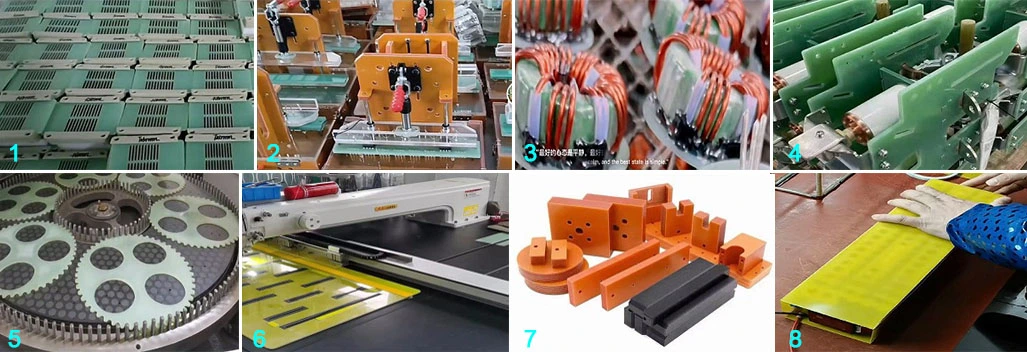

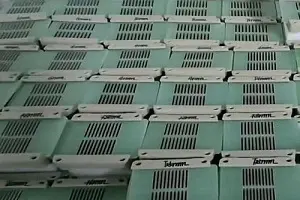

Epoxy glass sheet can be machined to various shapes as insulation parts in which the mechanical and electrical properties is required.



Certification

---

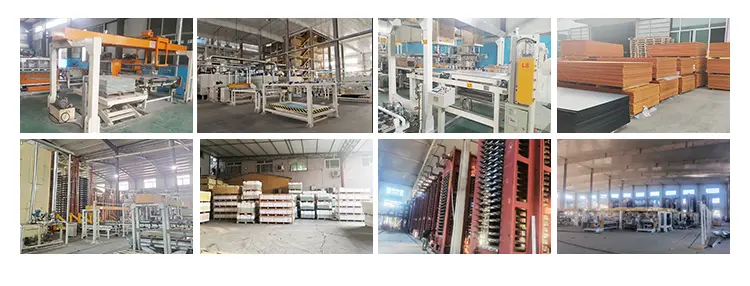

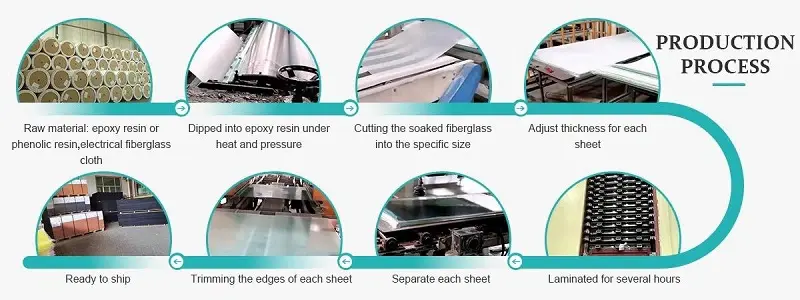

Production Process

---



Packaging and Shipping

---

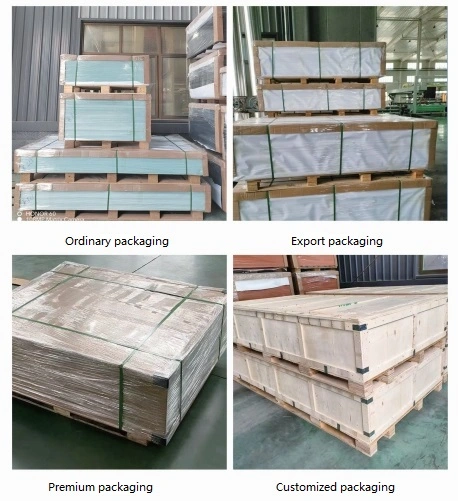

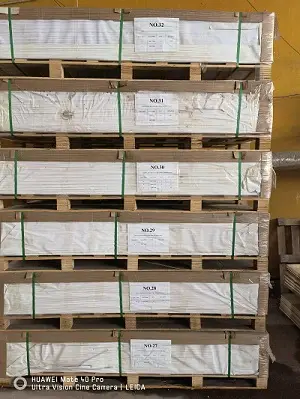

Regular packing, Protect by Pallet
