G10 Epoxy Board

G10 Epoxy Board - High-Performance Glass Fiber Composite Material

When you're looking for prevalent separator materials that combine extraordinary mechanical quality with extraordinary electrical properties, our G10 Epoxy Board conveys unmatched execution for your most requesting applications. Made by J&Q Modern Composite Fabric Gather Co., Ltd beneath the JingHong brand, this premium glass fiber strengthened epoxy cover offers exceptional strength and unwavering quality. Our G10 sheets highlight progressed 7628 electronic cloth development with high-grade epoxy gum, guaranteeing steady quality over each sheet.

Product Description

Our items speak to the apex of composite fabric building. The "G" assignment stands for glass fiber support, whereas the predominant definition gives uncommon dimensional steadiness and warm resistance. Each board experiences thorough quality control forms to meet worldwide standards.

Key Specifications:

Attribute	Details
Brand	JingHong
Construction	7628 Electronic Cloth + Premium Epoxy Resin
Flame Rating	UL94V0 certified
Available Colors	Light Green, Yellow, Black
Thickness Range	0.3mm to 100mm
Standard Dimensions	1020mm × 1220mm, 1220mm × 2440mm, 1020mm × 2020mm
Minimum Order Quantity	500KG
Custom Sizes Available	1030mm × 2030mm, 1030mm × 1030mm, 1030mm × 2070mm

Product Availability

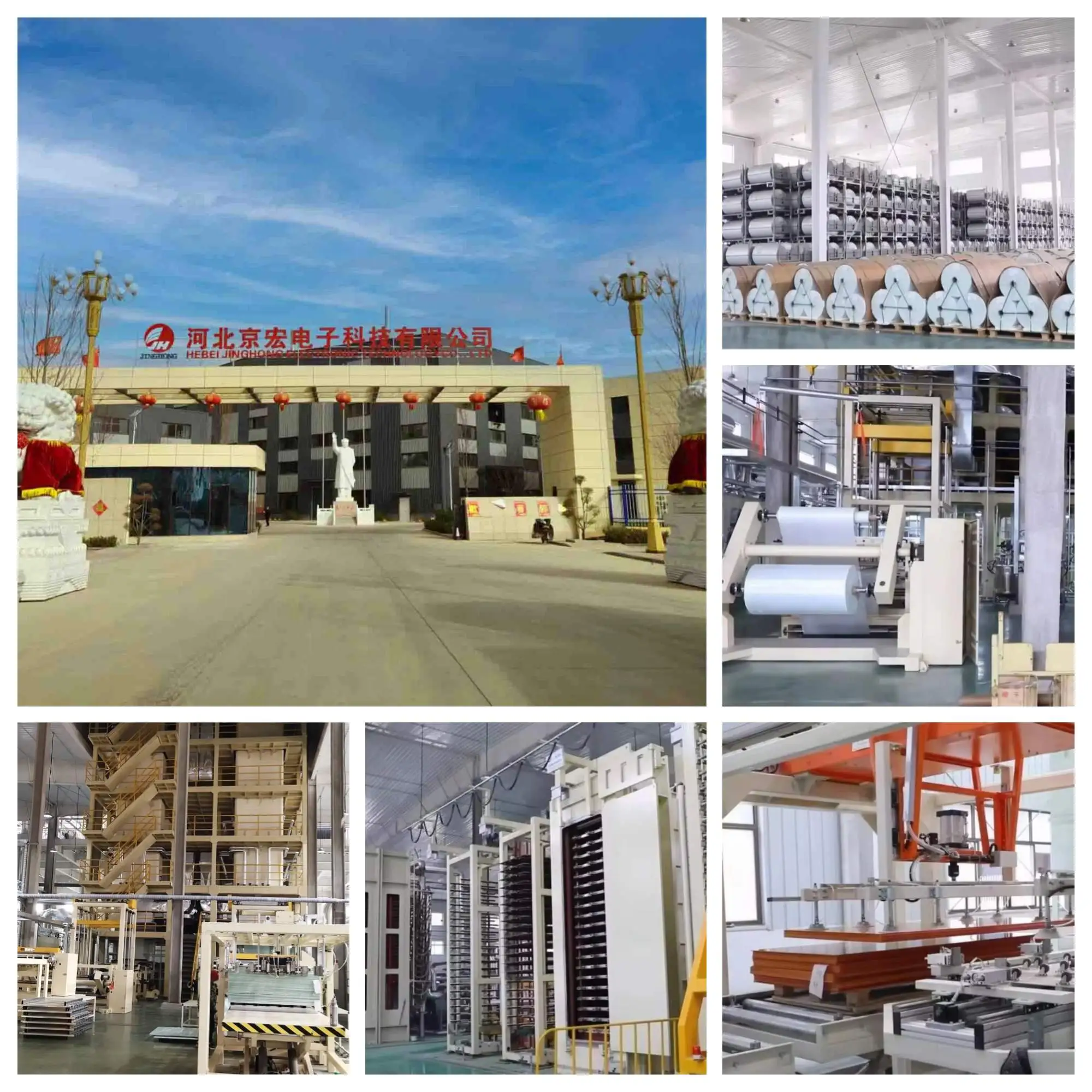

We keep up significant stock levels with a generation capacity of 30,000 tons yearly. Our adaptable fabricating capabilities guarantee reliable supply for both standard and custom necessities. Orders are ordinarily handled inside 5-7 trade days, with around the world shipping accessible by means of sea, arrive, and discuss transport.

Key Features

Superior Electrical Insulation

Outstanding dielectric quality makes these sheets culminate for high-voltage applications and electrical hardware manufacturing.

Exceptional Mechanical Properties

High flexural and pliable quality give auxiliary astuteness beneath requesting conditions.

Chemical Resistance

Maintains steady execution when uncovered to acids, soluble bases, and other cruel chemical environments.

Flame Retardant Properties

UL94V0 rating guarantees improved security in electrical and mechanical applications.

Dimensional Stability

Minimal warm development and compression over wide temperature ranges.

Standards

Our G10 Epoxy Board comply with numerous universal measures counting UL94V0 fire retardancy prerequisites. Each group experiences comprehensive testing to guarantee reliable quality and execution characteristics.

Technical Features: Product Safety Control

Quality Assurance Process:

• Raw fabric review and certification
• In-process checking at each fabricating stage
• Final item testing for electrical and mechanical properties
• Comprehensive documentation and traceability

Safety Features:

• Non-toxic detailing secure for mechanical environments
• Excellent bend resistance avoiding electrical failures
• Low dampness assimilation keeping up execution integrity

Product Application

Electrical Industry:

• Circuit breakers and switchgear components
• Transformer cover systems
• DC engine auxiliary elements
• AC contactor assemblies
• Explosion-proof electrical apparatus

Industrial Applications:

• Corrosion-resistant chemical gear components
• Structural underpins in cruel environments
• Precision machining applications requiring dimensional stability

Manufacturing Sectors:

• Electronic gear housings
• Insulating obstructions and supports
• Custom manufactured electrical components

OEM Service

We give comprehensive OEM arrangements custom-made to your particular prerequisites. Our building group collaborates with you to create custom details, measurements, and handling determinations. From model advancement to full-scale generation, we back your venture at each stage.

OEM Capabilities:

• Custom measure cutting and machining
• Special color formulations
• Modified thickness specifications
• Branded bundling options
• Technical back and consultation

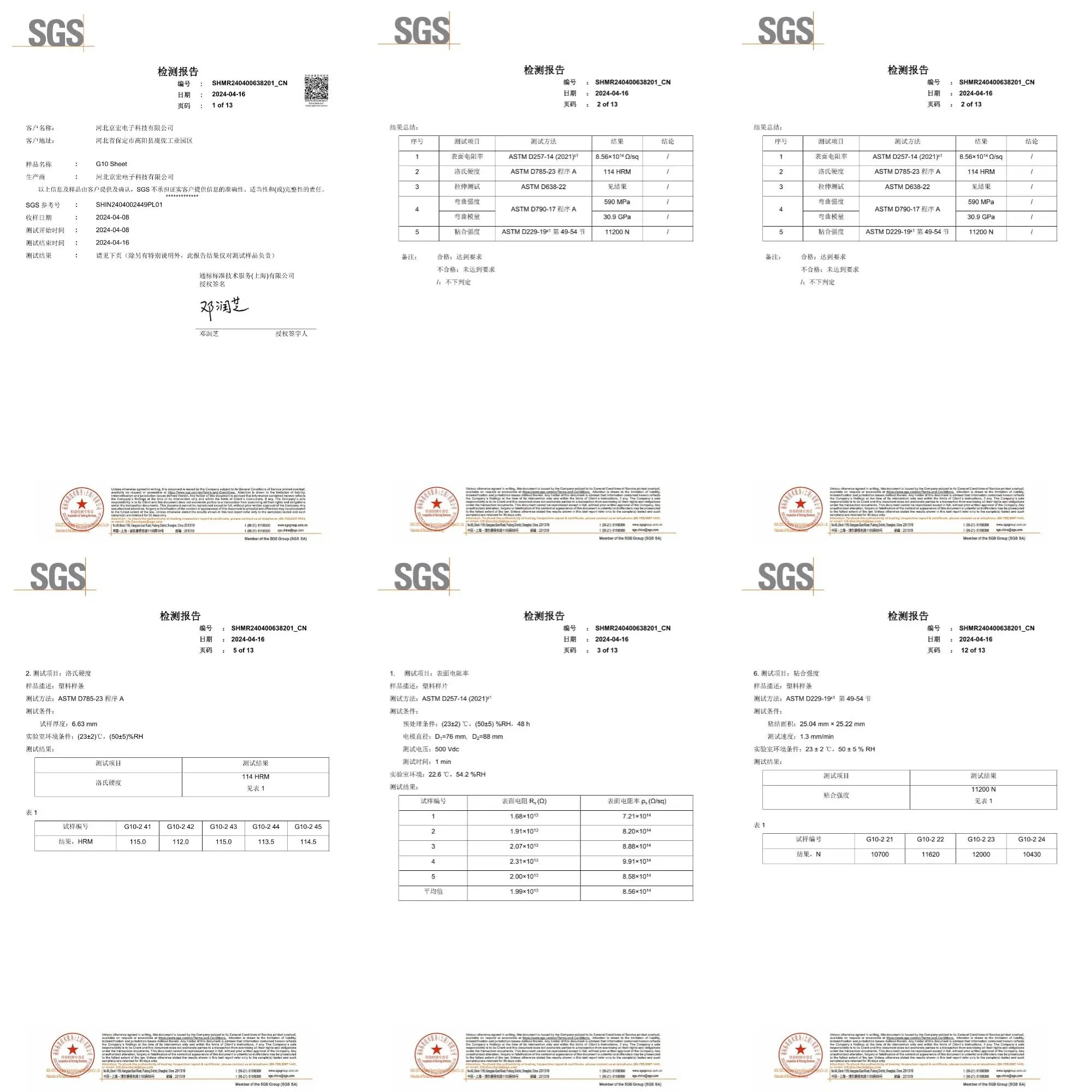

Certification

FAQ

Q: What makes G10 different from other epoxy laminates?

A: The glass fiber substance and particular gum detailing give prevalent mechanical quality and electrical properties compared to standard phenolic or paper-based laminates.

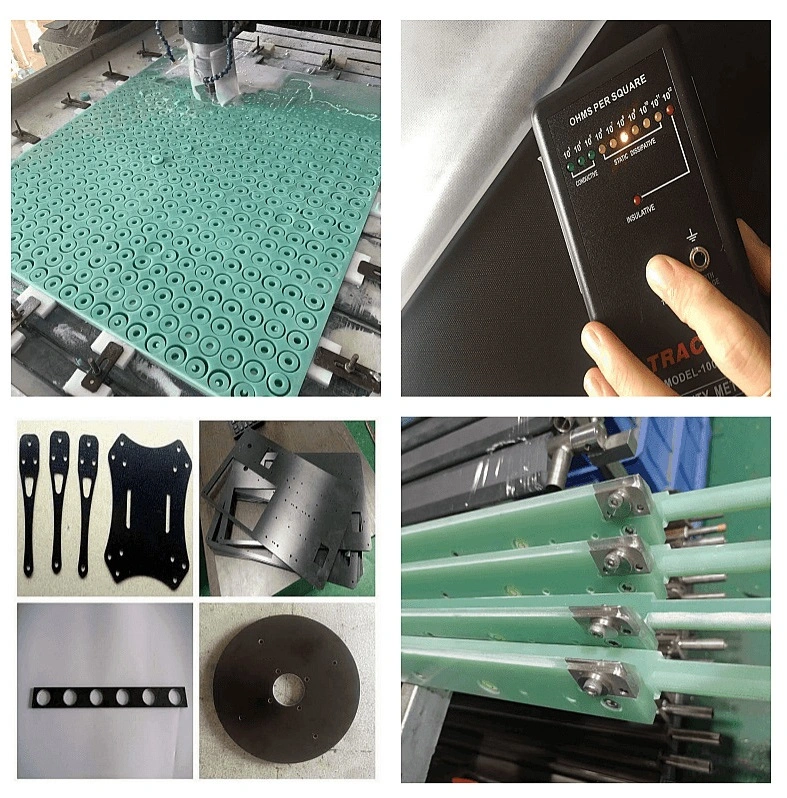

Q: Can you machine G10 boards to custom shapes?

A: Yes, our materials machine perfectly utilizing standard carbide tooling. We can give pre-cut pieces or you can machine them in your facility.

Q: What's the temperature operating range?

A: Our G10 sheets keep up fabulous properties from -40°C to +180°C, making them appropriate for most mechanical applications.

Q: How do you ensure consistent quality across batches?

A: Each generation run experiences comprehensive testing counting dielectric quality, flexural properties, and fire resistance verification.

Contact Us

Ready to involvement the predominant execution of our G10 Epoxy Board premium glass fiber ? Our specialized group is standing by to offer assistance you select the culminate determination for your application requirements.

Get in touch today:

📧 Email: info@jhd-material.com

Whether you require standard sheets or custom created components, we're committed to conveying uncommon quality and benefit that surpasses your desires. Contact us presently for point by point specialized details, estimating data, or to examine your particular extend necessities.
