High Performance Epoxy Glass Cloth Laminated Sheet

High Performance Epoxy Glass Cloth Laminated Sheet - Premium FR4 Solutions

Our High Performance Epoxy Glass Cloth Laminated Sheet conveys uncommon toughness and electrical properties. Made with premium 7628 electronic cloth and epoxy tar, this FR4 fabric meets the requesting prerequisites of cutting edge hardware. Whether you require circuit sheets, electrical boards, or auxiliary components, our covered sheets give the execution you can believe. Accessible in numerous thicknesses and sizes, these sheets offer flexibility for different mechanical applications whereas keeping up reliable quality standards.

Product Descriptions from the Supplier

Brand	JingHong
Core Materials	7628 Electronic Cloth + Premium Epoxy Resin
Flame Retardant Rating	UL94V0, UL94V1

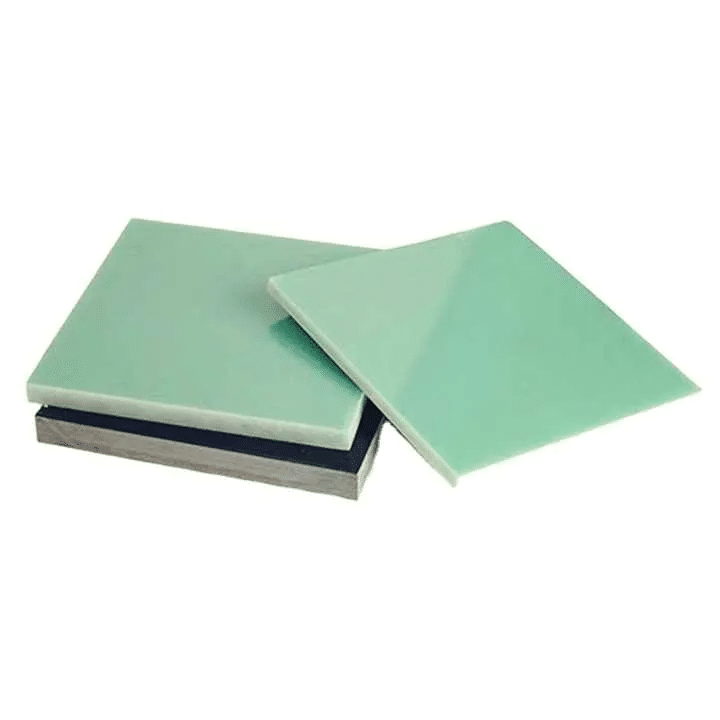

Available Colors	Light Green, Yellow, Black
Thickness Range	0.3mm to 100mm

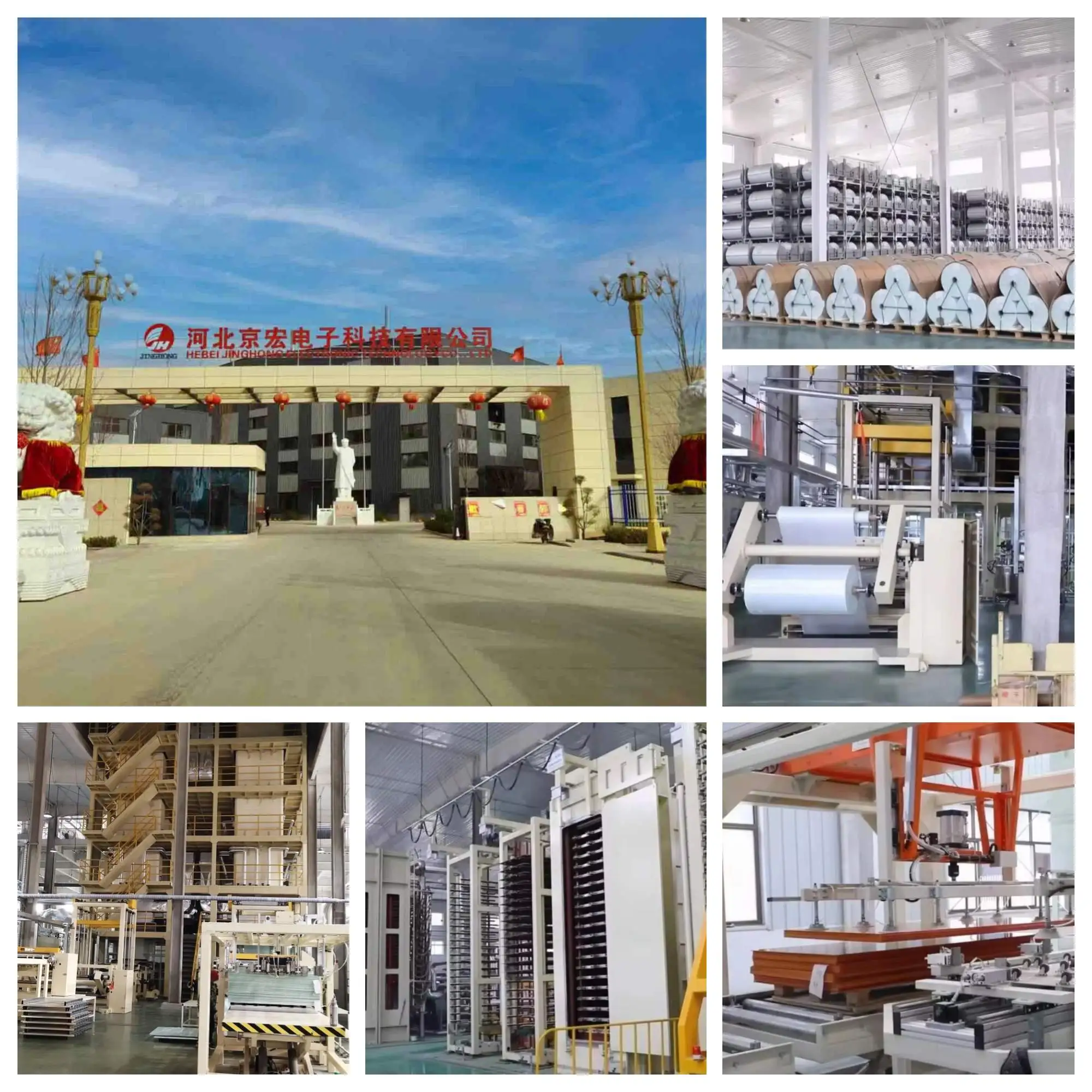

Production Capacity	30,000 tons annually
Minimum Order Quantity	500KG
Payment Terms	T/T
Transportation Options	Ocean, Land, Air freight

Product Availability

We keep up broad stock to guarantee fast conveyance of your orders. Our standard stock incorporates standard sizes, whereas custom measurements are accessible with sensible lead times. With our significant generation capacity, we can handle both small-scale ventures and expansive mechanical orders efficiently.

Key Features

• Superior Electrical Cover: Amazing dielectric properties for electronic applications
• Flame Retardant Security: Certified UL94V0 and UL94V1 evaluations guarantee safety
• Moisture Resistance: Moo water assimilation (regularly ≤19mg) keeps up stability
• Strong Interlayer Bond: Peel quality ≥1.8 N/mm anticipates delamination

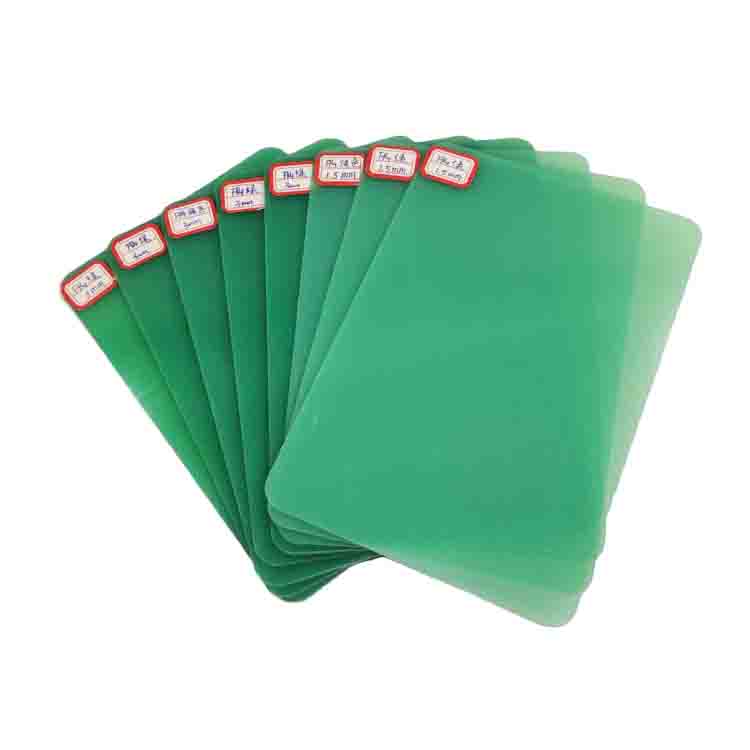

• Wide Thickness Extend: From 0.3mm to 100mm obliges differing needs
• Multiple Measure Choices: Standard and custom measurements available
• Consistent Quality: Thorough fabricating controls guarantee reliability

Standards

Our epoxy glass cloth covered sheets comply with universal quality standards:

• UL94 Fire Retardancy Benchmarks (V0, V1 grades)
• IEC electrical cover requirements
• RoHS compliance for natural safety
• ISO quality administration framework standar

Technical Data for FR4

---

NO	TEST ITEMS	UNIT	TEST RESULT	TEST METHOD
1	Bending Strength Perpendicular to Laminations	MPa	571	GB/T 1303.4-2009
2	Compressive Strength Perpendicular to Laminations compressive	MPa	548
3	Parallel Layer Impact Strength (Simply Supported Beam, Gap)	KJ/m²	57.3
4	Tensile Strength	MPa	282
5	Vertical Layer Breakdown Voltage (90℃ + 2℃, 25# transformer oil, 20s step by step boost, φ25mm/φ75mm cylinder electrode system)	kV/mm	16.7
6	Parallel Layer Breakdown Voltage (90℃ + 2℃, 25# transformer oil, 20s step by step boost, φ130mm/φ130mm flat plate electrode system)	kV	＞100
7	Relative Permittivity (50HZ)	-	5.40
8	Dielectric Dissipation Factor (50HZ)		7.2*10-3
9	Insulation Resistance after Soaking	Ω	2.2*1013
10	Density	g/cm3	2.01
11	Water Absorption	mg	5.3
12	Barcol Hardness	-	76	GB/T 3854-2005
13	Flammability	Grade	V-0	GB/T 2408-2008
REMARK: 1. NO.2 the sample height is (5.00~5.04) mm; 2. NO.5 the sample thickness is (2.02~2.06) mm; 3. NO.6 the sample size is (100.50~100.52)mm*(25.10~25.15)mm*(5.02~5.06)mm thickness, The electrode spacing is (25.10~25.15)mm; 4. NO.11 the sample size is (49.86~49.90)mm*(49.60~49.63)mm*(2.53~2.65)mm; 5. NO.13 the sample size is (13.04~13.22)mm*(3.04~3.12)mm thickness.

Technical Features: Product Safety Control

Water Assimilation Execution: Our materials keep up fabulous dimensional solidness with water assimilation ordinarily not surpassing 19mg. This moo assimilation rate guarantees dependable execution in muggy situations and avoids electrical property degradation.

Interlaminar Quality: With delamination quality ≥1.8 N/mm, our sheets stand up to layer division beneath mechanical stretch. This strong holding anticipates disappointment in requesting applications.

Flame Retardancy: UL94V0 and UL94V1 certifications ensure self-extinguishing properties, making these materials secure for electrical applications where fire resistance is critical.

Product Application

Our High Performance Epoxy Glass Cloth Laminated Sheet serves numerous industries:

• Electronics Fabricating: PCB substrates, circuit sheets, electronic housings
• Electrical Building: Switchgear boards, transformer components, separator barriers
• Automotive Industry: Electronic control units, sensor lodgings, wiring harnesses
• Industrial Hardware: Engine cover, generator components, control panels
• Aerospace Applications: Avionic lodgings, radar components, communication systems
• Marine Hardware: Route hardware, communication gadgets, control systems

OEM Service

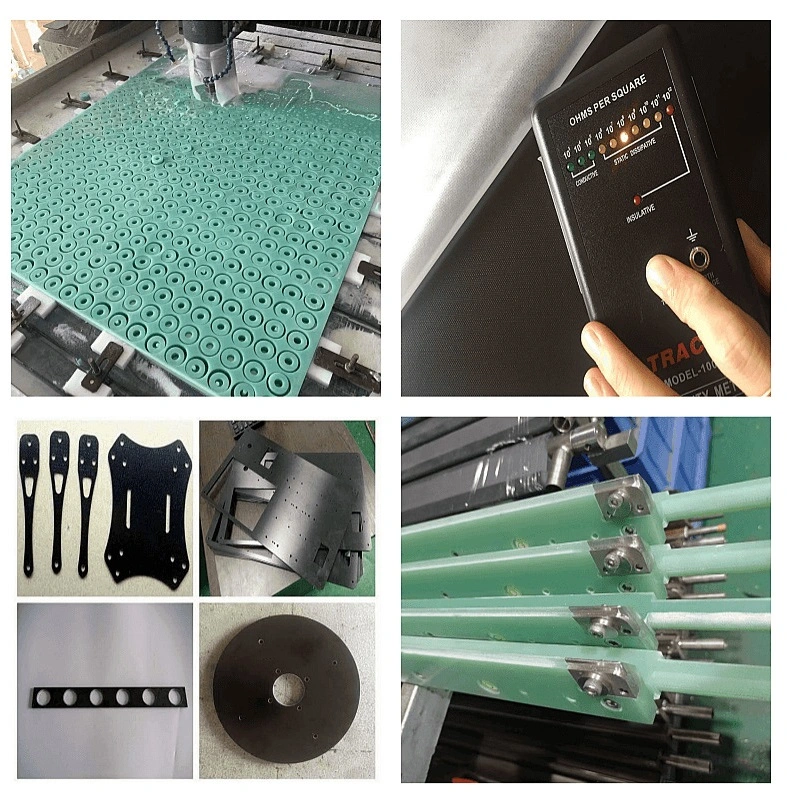

We give comprehensive OEM arrangements custom-made to your particular necessities. Our designing group works closely with you to create custom determinations, including:

• Specialized thickness combinations
• Custom color options beyond standard offerings
• Unique size configurations
• Modified electrical properties
• Special surface treatments
• Private labeling and packaging

Certification

FAQ

Q: What thickness options are available for your laminated sheets?

A: We offer thicknesses ranging from 0.3mm to 100mm, covering virtually all application requirements.

Q: Can you provide custom sizes beyond your standard offerings?

A: Yes, we manufacture custom dimensions including 1030mm×2030mm, 1030mm×1030mm, and 1030mm×2070mm based on your needs.

Q: What makes your High Performance Epoxy Glass Cloth Laminated Sheet superior?

A: Our sheets combine high-quality 7628 electronic cloth with premium epoxy resin, offering excellent electrical properties, flame resistance, and mechanical strength.

Q: What is your minimum order quantity?

A: Our minimum order is 500KG, which allows flexibility for both prototyping and production runs.

Q: How do you ensure consistent quality across large orders?

A: We implement comprehensive quality control throughout production, with testing at multiple stages to ensure every sheet meets specifications.

Contact Us

Ready to source premium High Performance Epoxy Glass Cloth Laminated Sheet for your next project? Our specialized group is here to offer assistance you select the right details for your application.

Email: info@jhd-material.com

Contact us nowadays for nitty gritty details, estimating data, or to examine your custom prerequisites. We see forward to supporting your venture with our high-quality materials and solid benefit.
