UL94V0 FR4 Sheet: High-Performance Flame Retardant Material for PCB Manufacturing

J&Q New Composite Materials Company is a leading manufacturer and supplier of UL94V0 FR4 sheets. Our advanced production facilities and extensive experience in insulation materials make us a trusted partner for electronics manufacturers worldwide. Our products offer superior flame retardancy, excellent electrical insulation, and consistent quality, meeting the demanding needs of modern PCB fabrication and electrical applications.

Product Description

Our items are high-performance, flame-retardant epoxy covers planned for utilize in printed circuit sheets (PCBs) and different electrical separator applications. These sheets combine extraordinary mechanical quality with exceptional electrical properties, making them perfect for businesses where security and unwavering quality are vital.

Technical Specifications

• Material: Glass fiber reinforced epoxy resin
• Flame Retardancy: UL94V0 certified
• Dielectric Constant (1 MHz): 4.7 ± 0.2
• Dissipation Factor (1 MHz): 0.019 max
• Volume Resistivity: 1 x 10¹⁰ MΩ·cm min
• Surface Resistivity: 1 x 10⁹ MΩ min
• Water Absorption: 0.10% max
• Flexural Strength: 440 MPa min
• Peel Strength: 1.2 N/mm min
• Glass Transition Temperature (Tg): 130°C min

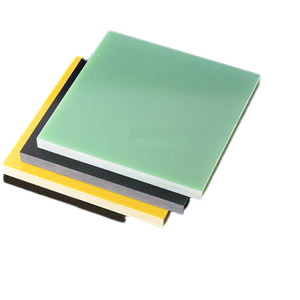

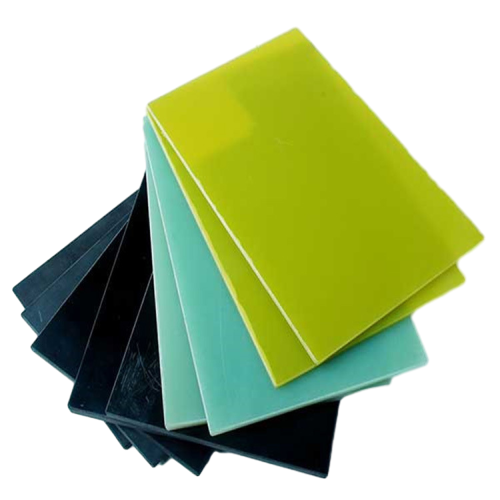

Available Colors

• Standard: Green
• Custom colors available upon request

Applications

• Printed Circuit Boards (PCBs)
• Electrical insulation components
• Automotive electronics
• Aerospace and defense equipment
• Industrial control systems
• Telecommunications hardware
• Consumer electronics

How to Use?

1. Select the appropriate thickness and dimensions for your application
2. Cut the sheet to size using precision cutting tools
3. Drill holes as needed for components or mounting
4. Clean the surface thoroughly before further processing
5. Follow industry-standard PCB fabrication processes for etching, plating, and assembly

Why Choose Us?

1. Quality Assurance: Our UL94V0 FR4 sheets undergo rigorous testing to ensure consistent performance and reliability.
2. Advanced Manufacturing: State-of-the-art production facilities guarantee high-quality products with minimal variations.
3. Customization Options: We offer tailored solutions to meet your specific requirements in terms of size, thickness, and properties.
4. Expertise: With over 20 years of experience in insulation materials, our team provides unmatched technical support.
5. Global Reach: Our products are exported to major markets worldwide, including Russia, Southeast Asia, the United States, and Europe.
6. Integrated Supply Chain: Our in-house logistics company ensures timely and efficient delivery of your orders.

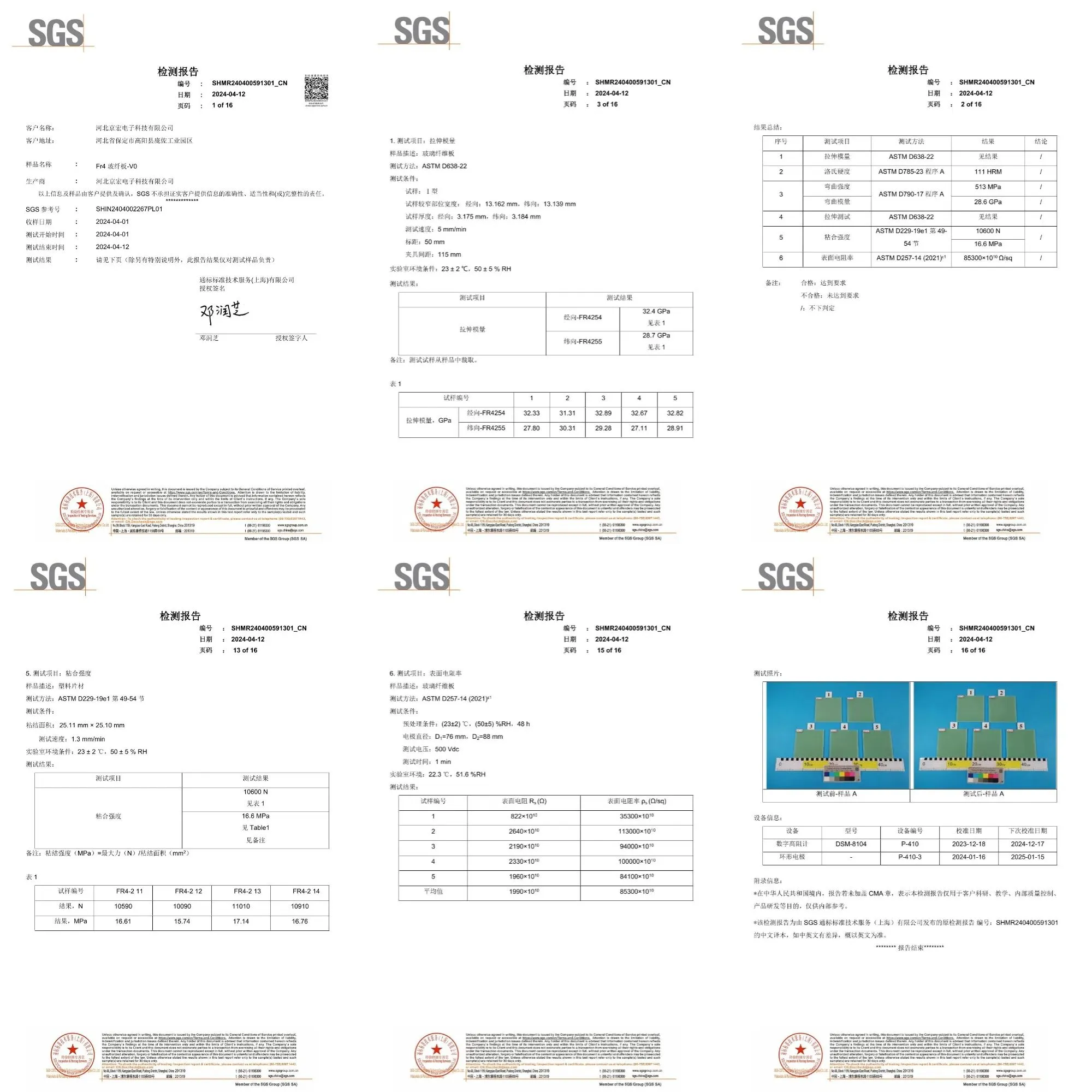

Qualification Certifications

Transaction Feedback

"J&Q's products have consistently met our stringent quality requirements. Their reliable supply and excellent technical support have made them a valuable partner for our PCB manufacturing operations." - John D., Procurement Manager, Leading Electronics Manufacturer

"We've been using J&Q's FR4 sheets for over five years now. The material quality is top-notch, and their ability to deliver large volumes on time has been crucial to our production schedule." - Sarah L., Supply Chain Director, Automotive Electronics Supplier

Exhibition

FAQ

Q: What makes the products flame retardant?

A: The products contain special additives in the epoxy resin that inhibit combustion and self-extinguish quickly, meeting the stringent UL94V0 flammability rating.

Q: Can you provide custom sizes for products?

A: Yes, we offer customization options for size, thickness, and even color to meet your specific requirements.

Q: How does the performance of your products compare to other materials?

A: Our FR4 sheets offer an excellent balance of electrical, mechanical, and thermal properties, outperforming many alternative materials in terms of reliability and safety.

Q: What is the lead time for large orders of products?

A: Lead times vary based on order volume and specifications. For standard products, we typically maintain a 2-3 week lead time. Please contact us for more precise estimates on your specific order.

Q: Do you offer samples of your products?

A: Yes, we provide samples for testing and evaluation. Contact our sales team to request samples tailored to your needs.

Contact Us

Ready to enhance your PCB manufacturing with high-quality products? Contact J&Q New Composite Materials Company today for expert advice, custom quotes, and unparalleled support.

Email: info@jhd-material.com

Trust J&Q for your UL94V0 FR4 sheet needs – where quality meets innovation in flame-retardant materials.
