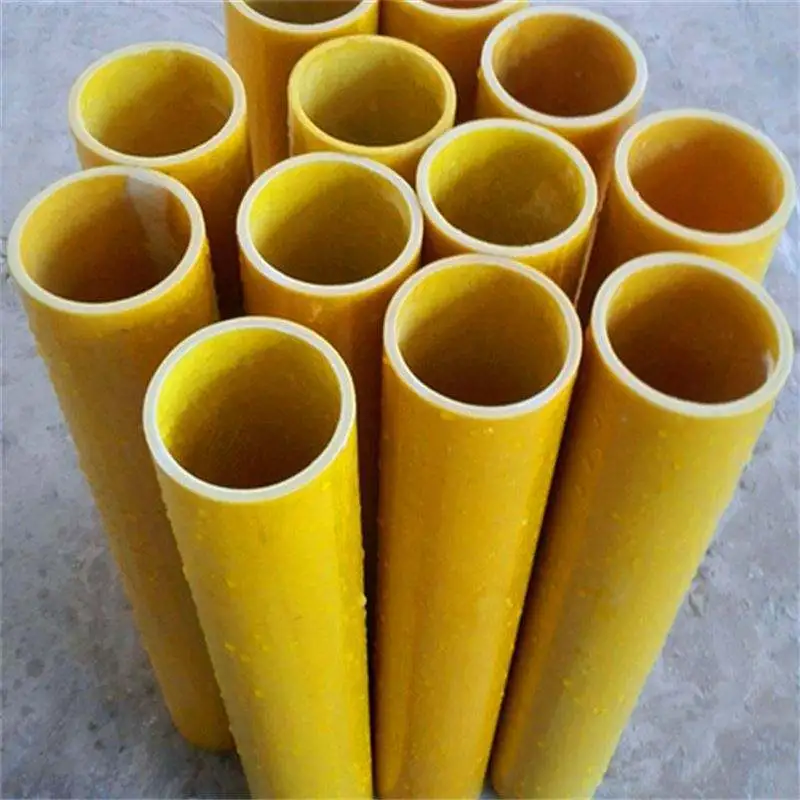

3641 Epoxy Glass Fiber Cloth Laminated Tube for Electrical Insulation

This solid insulation tube is referred to as a 3641 Epoxy Glass Fiber Cloth Laminated Tube. If you change the epoxy phenolic glue and mix it with alkali-free glass cloth, roll it out, heat it up to make it hard, and bake it. At the same time, it holds up mechanical loads and keeps moving parts apart. That's why stores that sell power use it to keep supports, cylinders, rods, and shafts from getting too hot. Because it is in heat class F (155°C), it can be used in damp places and with transformer oil. Before you place your order, look at the supplier's data sheet to see how well it will work in the end. It depends on how strong the walls are, how well the plastic is made, how it is treated, and how the tests are set up.

Introduction: Why 3641 Epoxy Glass Fiber Cloth Laminated Tube Matters in Electrical Systems?

A Rigid Insulator That Also Carries Load

An electric part needs to do two things most of the time. You can twist, press, or vibrate the part, but it still needs to keep the conductors apart and keep its shape. Both of these things can be done by a 3641 epoxy glass fibre cloth laminated tube. The wall is strong and warm now that the cement has set. The wall is made of the glass cloth. This tube's shape is better than regular phenolic paper tubes because it holds its shape better when it's moving quickly and there is less partial discharge in high-voltage fields. Engineers put it around lines, busbars, coils, and links because it would cost a lot for the power to go out or for something to break.

Who Uses It Across Industries?

The ways people buy things are very different, and each person has their own needs. The switchgear, motor parts, and test fixtures that electrical and electronics companies make need to be insulated well. Bands and gaps that stay the same size and are strong are needed by people who build machines. People who work with electricity or make transformers need safety gear that can handle heat and oil. People who make cars and gadgets usually want exact cuts and the same amount. All of the orders that distributors and OEM buying teams place will be the same grade, which is good. You can find the most important test results if you are in the right group.

What to Confirm Before You Order?

The work isn't done just because you have a grade name. What happens depends on the kind of plastic used, how thick the walls are, how deep the inside and outside are, how the mould was cut, and how the test was set up. Before you place an order, you should know what your setup needs in terms of power, gear, and cool air. Then you should ask the seller for an inspection report and a detailed data sheet. To get a better idea of the lead time, ask if you can make changes or have the item cut to size. During every quote, our team talks with the buyer about these things. Do them early so you don't have to do more work later. Also, that makes it simple for your engineers to say yes.

What Is 3641 Epoxy Glass Fiber Cloth Laminated Tube?

Construction and Function

The stuff this is made of is hard and is shaped like tubes. It is made by rolling out glass fibre cloth that has been soaked in a modified epoxy phenolic glue and is free of alkalis. The cloth is then dried and baked with heat. The glass cloth makes the wall stronger. It stops electricity from getting through and keeps the tube's shape because of the glue. The tube can handle 155°C and is in heat class F. In terms of how it works, it's a good insulator and works well with heat. If you keep an eye on the process, the cut lines will be clean and the surface will be smooth. Because of these things, the metal can be used to cover parts of motors and electrical gear.

How the Tube Is Manufactured?

Putting glue on the glass cloth to get it ready is the first step in the process for a 3641 Epoxy Glass Fiber Cloth Laminated Tube. The next step is to wrap or roll the layers of cloth around each other. After that, heat and pressure are used to make the tube hard. Delamination, dry spots, holes, or places with a lot of resin can happen if you don't keep the resin under control. To avoid this, make sure the glue sets in the right way. Find out how the company that made your tube does things. Some people use hot rolling, while others use wet winding with far-infrared burns. The tube can be drilled, split, chamfered, or cut to length once it's dry. As part of quality checks, it is weighed, looked over, and put through electrical and mechanical tests. You can also keep track of each batch.

Rigid Tubes Versus Flexible Sleeves

When people buy tubes, they often mix up laminated tubes with other types. It can be used as a gap, shaft, standoff, or insulation cylinder because it can keep its shape and weight. It protects wires and leads and is made of stretchy fibreglass. But it doesn't keep the building together. But made plastic tubes might not be good for parts that don't need to be stressed because they can't handle as much heat or stress. Check the technical data sheet, the compliance papers, and any IEC, ASTM, NEMA, or user standards that apply to get the exact grade. These papers show that you understand the same thing.

Key Properties of 3641 Epoxy Glass Fiber Cloth Laminated Tube

Electrical Performance

Because its dielectric is so strong and doesn't easily insulate, the tube can safely separate conductors. It is important to protect the surface and keep it from tracking in places where arcing or poisoning could happen. Switches use this kind because it stops carbon from moving when the arc is on. The results can be different depending on the thickness of the wall, how the glue is spread, the temperature, the condition of the surface, and the way the test is carried out. Standards like IEC 60243-1 and ASTM D149 explain how to find out how strong a dielectric is. When you put numbers from different sources next to each other, you shouldn't compare them. Since the supplier has agreed, I think you should use a data table instead of just numbers.

Thermal and Mechanical Behavior

Since the tube is marked F (155°C), it can work well with hot motors, engines, and switches. The IEC 60085 method is used to rate the thermal class. Take a look at both the working temperature and the temperature change over time and make sure that your design takes that into account instead of short-term tolerance. The tube doesn't bend when it's under a lot of stress because of the glass cloth support. It keeps its shape when it speeds up. Things are strong if the glass threads go in a certain way and the walls are thick. Ask the seller what tests they did and how they were done. It's okay to get it wrong when you compare the given limits to the real working point.

Moisture and Oil Resistance

It's not good for a lot of insulation when it's wet outside. Tap changer shafts and winding supports are made from this tube because it can work in both wet and oily conditions. It is used by companies that make transformers that are submerged in oil. The company that made it also says that it keeps air and water out well. One way to bring out the fibres is to cut the tube. A tube that has been cut can soak up water faster. The best way to keep water off of machined parts is to use a finish that keeps heat in. Do not store the tubes in a room with a lot of air flow. You should use them within 12 months of receiving them. Before you buy, ask your supplier about any places where chemicals could come into contact with each other.

Applications of 3641 Epoxy Glass Fiber Laminated Tube and Material Comparison

Power Transmission and Transformers

When the tube is used in high-voltage switchgear as arc-extinguishing chamber tubes, insulating pull rods, or contact supports, it has to be able to handle dielectric stress. In oil-filled transformers, it's used to make the supports for the windings and the shafts for tap changers. Heavy-duty power tools use it in the form of insulation bars and cylinders. This is also true for busbar insulation, nuclear parts, and motor or generator supports. It's what power engineers use when they need a strong part that won't work with electricity. Before you agree to the idea, make sure that the power, temperature, and test data are correct for each project. This is because grid tools can make things less safe.

Industrial, Electronic, and Machinery Uses

In electric ovens and rolling mills, a 3641 Epoxy Glass Fiber Cloth Laminated Tube with threads is used as heat breaks and protective bands. Up to 155°C of heat can't get through it, and it can handle loads that squeeze it. It is used to protect parts of ICT and ITE equipment by companies that make electronics. It's also used for jig plates, support plates for cutting PCBs, plates that make testing brackets stronger, needle or carrier plates, and more. It's used by people who build cars to keep car parts warm. To make sure everything fits, write your limits on the picture. Tight tolerances and clean cuts might not work.

Comparison With Phenolic, Silicone Fiberglass, and PVC

There are times when phenolic laminated tubes are better than epoxy glass cloth tubes because they can handle heat class F better and are stronger. Products made of silicone fibre are flexible sleeves that hold wires in place. They are not structural parts. Light-duty insulation might fit inside PVC tubes, but it's not as strong and can't handle high temperatures as well as strong epoxy reinforced with glass. You should think about all of these things when comparing dielectric performance, including how strong it is, how stable its dimensions are, how resistant it is to water, how it behaves in flames, how chemically compatible it is, how much it costs, how easy it is to get, and how it is installed. You can make a good choice with the help of a comparison chart made from valid test data. You should also check all of this information against how you work.

Buying Guide for 3641 Epoxy Glass Fiber Cloth Laminated Tube

How to Choose the Right Tube?

At first, make sure the device works and test the voltage, current, temperature (both steady and peak), mechanical load, vibration, and the area where it will be placed. You can choose whether the tube is the main or secondary insulation, or whether it is just there to fill space or make the frame stronger. Then write down the inside diameter, the outside diameter, the width of the wall, the length, the straightness, the limits, and the inside diameter. You should pay close attention to how thick the walls are because they affect the size, power, space, and mechanical performance of the equipment. Next, pick between regular stock sizes and unique sizes. Also, make sure that the cut-to-length service will work for your job. If you are clear here, it will take less time to accept the price and sample.

RFQ Checklist and Common Mistakes

When you give a full request, it's faster to get a quote. It's important to write down the type, size, quantity, tolerances, standards, packaging, Incoterms, inspection, paperwork, and mechanical and electrical needs. It does the same bad thing over and over. Some buyers only look at the width and don't think about how much it weighs, how thick the walls are, or how far it can move. When some people compare dielectric values from various test methods, they sometimes get short-term temperature tolerance and long-term thermal ageing mixed up. Cut, drill, or press something and it can get cracks, burrs, or delamination. When you need to machine something, use alloy turning tools. When safety is very important, get samples and keep an eye on the group.

Supplier Evaluation and Total Landed Cost

A unit price doesn't always tell you everything you need to know. A landing costs a lot because of the tests, packing, goods, scrap, and wait time. How well a provider can make things, how they handle quality, how helpful they are, and how easy it is to keep track of their goods are all things you should think about. For more than 20 years, J&Q has made and sold felt sheets. It's been more than 10 years since we did business with other countries. Not only do we make the things, but we also drive our own cars, so we can do everything in one place. What should a good product page have? There are data sheets for the grade, diameter ranges, wall thickness, lengths, limits, and grades.

Conclusion

The 3641 Epoxy Glass Fiber Cloth Laminated Tube has a hard insulation part rated at heat class F (155°C) because it is strengthened with glass cloth and modified epoxy phenolic resin. On top of that, it keeps the wires apart and supports mechanical loads in things like switches, oil-filled transformers, motors, heaters, and test tools. Things like wall thickness, resin distribution, curing, machining, and test method can change how well something works. It's more important to have a data sheet signed off by the seller than just a grade name because of this. When it comes to hard structural insulation, fibreglass, phenolic, and PVC don't work as well as this one does. But covers that can be bent are better for another thing. You shouldn't just look at width or unit price when making your choice. You should also look at working conditions, a full RFQ, and the total cost of landing.

FAQ

What is the tube used for?

It stops cylinders, rods, pull rods, tap changer shafts, winding supports, and structurally insulating parts from moving. It is used in motors, switches, and transformers.

Is it suitable for high temperatures?

It's in heat class F and can handle 155°C. Still, get both the verified continuous operating temperature and thermal ageing data from the supplier to make sure it fits your needs.

How is dielectric strength tested?

Labs have to follow rules like IEC 60243-1 or ASTM D149. If you test them in different ways, like when they are thick, hot, rough, or when you use a different test method, the numbers may be different.

Can I request custom sizes?

You can send your radius, length, range, number, and both the inside and outside diameters. The request is checked by our team to make sure there are no problems with the samples, inspection reports, tracking of the batch, shipping choices, or samples.

Request a Quotation for 3641 Epoxy Glass Fiber Cloth Laminated Tube From J&Q

Looking for a dependable 3641 Epoxy Glass Fiber Cloth Laminated Tube supplier? J&Q offers over 20 years of insulating sheet experience, more than 10 years in foreign trade, and an in-house logistics company for one-stop service. Send your dimensions, voltage, temperature range, quantity, and destination to info@jhd-material.com, and our team will prepare a project-based quotation. Visit jhd-material.com for more product details.
