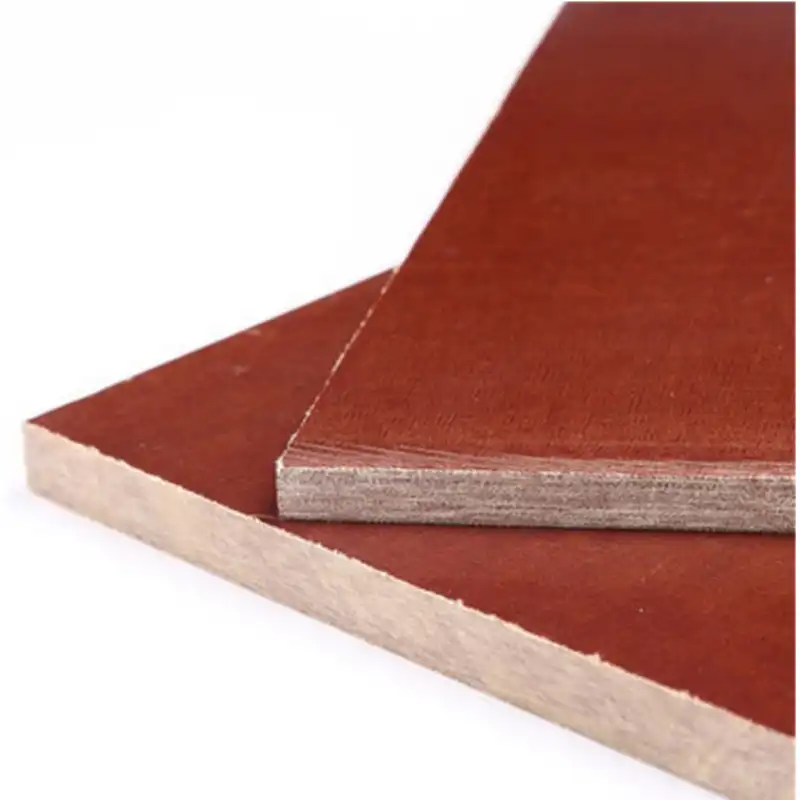

Commercial Phenolic Laminates for Wear-Resistant Industrial Components

Commercial Phenolic Laminates are strong sheets made from cotton fabric or paper that have been heated and soaked in phenolic resin to make long-lasting parts for industry. Cotton sheets are strong and easy to work with. They keep things warm and don't wear out too fast. Designers use them to make parts that keep things from getting too hot, as well as gears, wear pads, and spacers for everyday tools. Check out the technical data before you place your order. You can tell how well a part works by its grade, thickness, and tolerance. In this guide, I use it to talk about features, grades, selection steps, and source checks.

Understanding Commercial Phenolic Laminates for Wear-Resistant Parts

What Are Commercial Phenolic Laminates?

Plastic pieces that are rigid make up Commercial Phenolic Laminates. First, thermosetting phenolic glue is added to them. Next, they are stacked and pressed with controlled heat and pressure. After that, the layers of cotton cloth or cellulose paper are put together. Resin doesn't change back into a liquid once it hardens. Usually, the steps are making the resin, putting it in water, letting it dry, building, hot pressing, closing, cutting, and checking the size to make sure it's right. Chemists have used phenols for a very long time. It was made by Leo Baekeland in the early 1900s. For heavy-duty work, industrial types are better because they last longer, cost less, are easier to use, and don't wear out as quickly. OEMs and wholesalers can get sheets, bars, tubes, cut-to-size panels, and finished parts from a lot of different places.

Commercial Phenolic Laminate Properties for Industrial Use

Why does it work? It depends on the type of reinforcement, the amount of glue, the direction of the laminate, its thickness, and how well it was put together. People usually look at how well something holds up against pressure and compression, how well it keeps heat in or out, how well it works with chemicals, how well it holds water, and how stable its measurements are before they buy it. Gears, wear pads, rollers, and axles all work well with different grades. For light work and pad-out, paper marks are good. Many phenolic laminates can't stand up to strong alkalis, but they do well with oils, greases, and cutting fluids. Also, phenol can take in water, which can change its form and make it less charged. You can tell how worn it is by the temperature, load, speed, oil, surface finish, humidity, and what it's moving against. That's why I tell people who want to buy something to look at data that is specific to their grade and see how the parts work in real life.

Commercial Phenolic Laminate Grades Comparison

There are different ways that paper resin and cloth resin can be useful. It is cheaper and easier to work with paper phenolic, which makes it good for electrical insulation, spacers, and parts that don't need to be strong. The fact that canvas phenolic is made from cotton cloth makes it tougher, stronger, and less likely to wear down. This makes it a good choice for parts made of metal. When people are shopping for laminates, they also look at phenolic laminates along with epoxy and fibreglass laminates. Epoxy-glass sheets like FR4 are often good for making things that need to work better with water and electricity. Most of the time, phenolic cotton sheet is easy to work with and better at absorbing shock. When you compare, you should think about the total cost, how much the tools will wear out, and the highest and lowest temperatures that are safe to use. Brand names for grades are different, so you can't just accept the signs. Use test results and scientific facts that have been checked instead.

Applications and Selection of Phenolic Sheets

Applications of Commercial Phenolic Laminates in Wear-Resistant Components

These are the materials that are used to make Commercial Phenolic Laminates for power tools, tools, and work gear. Some of the parts that are used all the time are thrust rings, jigs, fixtures, templates, insulating plates, rollers, and guide strips. To keep metal rods safe, machine builders use phenolic spacers and gears. The softer phenolic part breaks down first and is simpler to replace. Lastly, metal gears move and make noise more often than plastic gears. Sheets are used to make parts for transformers and circuits. A lot of people who make cars and appliances use them to make fasteners, motor brackets, and insulation frames and pads that can handle high temperatures. After sheets are cut into pieces, they can be made with a saw, drill, mill, lathe, or CNC. It is possible to make OEM parts faster and with fewer steps when they are cut to size and based on drawings.

How to Select the Best Commercial Phenolic Laminate?

First, think about where the app will run. You need to write down the voltage, the load, the contact pressure, the speed (slide or turn), the temperature, the chemicals, the dust, the lubricants, and how long you want the service to last. Most of the time, paper phenolic works well as a light padding and filler. Heavy-duty mechanical and wear-duty fits are made from fabric cloth. The next step is to make sure that the grade, thickness range, smoothness, cutting space, and final part size are correct. Order a sheet that is thicker than the end part if you want it to be thicker. Then don't just look at how much the sheets cost, but also how much the whole set costs. The last number is based on how often the tools need to be replaced, how long it takes to machine the metal, how often maintenance is done, and how often the machine is down. Fewer stops can save you money over the course of a year if you get a better grade.

Common Selection Mistakes and How to Avoid Them

A lot of mistakes are made. When people buy phenolic sheets, they only think about price since they all seem the same. There is no thought given to temperature or chemical exposure, and the width is chosen without any thought given to how it will be made. Keep in mind that different kinds of paper and cloth respond differently to things like pressure, weight, and energy, so make sure you know how they were made. General data may not always show how things like speed, load, heat, lubrication, and moisture connect and change each other. Before approving high-volume or safety-critical parts, make sure the working conditions are clear, ask for up-to-date technical papers, samples, or certificates, and test the prototype or first item. These four steps will help you stay out of most trouble. A big test run costs less than a small one that doesn't work out.

JingHong Cotton Fabric Phenolic Sheets from J&Q

Grades, Sizes, and Specifications

Now that you know how to choose, here's what we have to offer. Both the outside and the inside of our JingHong sheets are made of cotton. We have black and brown types 3025, 3026, and CE for sale. They are 2 mm to 100 mm thick. Most sheets are 1020 mm x 2020 mm or 1220 mm x 2440 mm. We make 30,000 tonnes of steel every year. We keep all of our standard sheets in stock so that we can send them out quickly. We can make it in any size or thickness you want, as long as you give us enough time. You can pay with T/T, and the least you can order is 500 KG. Sheets can be sent by land, sea, or air. They are safe because they are packed well and put in boxes. We can send things as well as make them because we have our own shipping company.

Test Data You Can Review

Here are the minimum values from our GB/T 5130 performance index for the two main grades.

Item	Grade 3025	Grade 3026
Vertical layer bending strength	≥100 MPa	≥140 MPa
Tensile strength	≥80 MPa	≥98 MPa
Notched impact strength (parallel layer)	≥8.8 kJ/m²	≥6.8 kJ/m²

Grade 3026 Commercial Phenolic Laminates lists higher bending and tensile minimums, while grade 3025 lists a higher notched impact minimum. Parts with more bending load may suit 3026, and parts with more shock may suit 3025. The index also lists a density of 1.30 to 1.40 g/cm³ and a bonding strength of at least 5390 N. For grade 3025, the parallel-layer breakdown voltage in transformer oil at 90 ± 2°C is at least 10 kV. Water absorption limits rise with thickness: no more than 249 mg at 3 mm, 319 mg at 10 mm, 406 mg at 20 mm, and 450 mg at 25 mm.

Product Safety Control and OEM Service

Electrical and mechanical tests are done on each batch, and the sheets are checked to make sure they are good before they are packed. We test the chemical and heat resistance and the size to make sure the specs don't change. You can use our sheets to make panels for insulation, machine tool parts, clamps, jigs, templates, and protected panels. They are also great for making parts and pieces for switchgear and generators. We're happy to do OEM work. They can help you choose the right stuff and show you how to use it. You can also get colours, styles, and qualities that are made just for you. We look over your drawing and tell you what grade we think it should get before you place your order. After that, you get the grade.

Buying Commercial Phenolic Laminates with Confidence

Procurement and Supplier Evaluation

Many times, OEMs need stock sheets, rods, tubes, finished parts, and parts that are made to order. A good provider should be able to provide all of these. For every quote, make sure you know the grade, the amount, the limits, the size, the packing, the Incoterms, the shipping terms, and how long it is good for. Some things you should think about when comparing suppliers are how much they can make, how they handle samples, how they work with customers, how much experience they have exporting, and how quickly they respond. Find out how much is in stock, how long it will take to get there, how to handle replacements, and how to make a claim. Bulk programs can always ship the same amount of goods because they have written acceptance standards and agreed-upon ways to check them. If you use the same list for each supplier, it's fair to compare.

Quality Control and Technical Documentation

You can make sure the sheet meets the goals you set for the buy-in papers. You might need to ask for a technical data sheet, a certificate of conformity, an inspection report, a dimensional report, and instructions on how to handle the product depending on the project. Do not buy from a company that cannot give you RoHS or REACH declarations if you need them. This is what the test showed based on GB/T 5130. This information should be checked against the NEMA LI 1 or ASTM D709 standards for people in the US. It is important to check new items for things like thickness, smoothness, bending, surface flaws, cracks, delamination, gaps, mechanical and electrical values, moisture state, and how they were packed as soon as they arrive. See ASTM D229 for how to test stiff insulation sheets and ASTM D570 for how to test how much water they can soak up. Also, look at the hot and cold limits, the resin system, the CNC's skills, the sampling, and the product tracking.

Why Work with an Experienced Phenolic Laminate Supplier?

J&Q has made and sold insulation sheets for over 20 years. They've done business with other countries for more than 10 years. It's been a long time since we worked with trade companies in the US and other places. Our own shipping company takes care of everything for our customers, from making the goods to sending them out. They can help you with every step, from choosing the materials and making models to cutting, checking, packing, and sending. They have done this many times before. This helps the most when you have to pick between cloth and paper, when you need finished pieces, or when you need to pick your own thickness. Seek prices that are easy to understand, quotes that are always the same, wait times you can count on, helpful technical support, and clear steps for claims and review. OEMs and dealers will be happy to buy from you again after reading these points.

Conclusion

Commercial Phenolic Laminates are good for making things that don't wear down easily, keep things warm, and are easy to machine. Paper comes in many types, and some are better for insulation and light work. Cotton cloth, on the other hand, can handle heavy loads. But the effects depend on the speed, load, weather, oil, and grease. You need a clear operating profile, grade data that has been checked, a thickness tolerance, and a machining allowance in order to make the right choice. It checks the total price, not just the sheets' price. The least amounts of bending, pulling, and contact for JingHong grades 3025 and 3026 are not the same. In other words, each grade works best with a certain type of weight. There is less risk when paperwork is done, samples are tested, and incoming goods are inspected. How stable it is for repeat orders depends on how much the seller can handle, how easy it is to track, and how fast they deliver.

FAQ

What is the difference between paper and canvas phenolic?

Paper that is phenolic is made from fiber-based paper. It's easy to work with and good for padding and parts that don't need to be strong. This canvas is stronger because it is made of cotton cloth. It can be used for belts, wear pads, and wheels.

Can I machine these sheets on a CNC machine?

Do use sharp carbide tools, a strong clamp to keep the sheet in place and the sides from coming apart, and make sure the heat is under control. Also, blow out the dust.

What are the minimum order and thickness range?

You can get at least 500 KG. You can choose sheets that are 100 mm thick or 2 mm thick. Prices range from 1020 mm x 2020 mm to 1220 mm x 2440 mm. You can use T/T to pay.

What should I send to get a quote?

Send the request along with the grade, size, thickness, limits, amount, yearly demand, goals, working conditions, location, and Incoterm you want to use.

Request Your Commercial Phenolic Laminates Quote from J&Q

Looking for a Commercial Phenolic Laminates supplier that handles production, machining support, and shipping? J&Q offers JingHong sheets in grades 3025, 3026, and CE, with 30,000 tons of yearly capacity and OEM support. Send your drawings, quantities, and service conditions to info@jhd-material.com, and our team will recommend a grade and confirm availability. Visit jhd-material.com for more details.

References

1. NEMA LI 1, Industrial Laminated Thermosetting Products, 1998

2. ASTM D709, Standard Specification for Laminated Thermosetting Materials, 2017

3. ASTM D570, Standard Test Method for Water Absorption of Plastics, 2018

4. ASTM D229, Standard Test Methods for Rigid Sheet and Plate Materials Used for Electrical Insulation, 2019

5. Phenolic Resins: Chemistry, Applications, Standardization, Safety and Ecology (Springer), 2000

6. Phenolic Resins: A Century of Progress (Springer), 2010
