Applications of 3240 Epoxy Sheet in Lithium Batteries

Key Properties for Battery Safety and Performance

Electrical Insulation Capabilities

The 3240 epoxy sheet is specifically valued for its superior electrical insulation properties, which are essential for the safe and efficient operation of modern battery systems. With high dielectric strength, it can reliably withstand significant voltage differences between cells or modules without electrical breakdown. This ensures that conductive elements inside the battery pack remain properly isolated. By minimizing the risk of short circuits, the 3240 epoxy sheet not only enhances battery safety but also supports stable and efficient energy delivery over the entire lifecycle.

Mechanical Strength and Durability

The mechanical strength of 3240 epoxy sheet plays a critical role in maintaining the integrity of lithium battery packs. Its impressive tensile and compressive strengths enable the sheet to endure the stresses of manufacturing processes, vibration during transport, and mechanical impacts during use. The rigid yet durable nature of the material helps preserve cell alignment and spacing, reducing the chances of structural deformation. This ensures consistent performance, prolongs service life, and provides a protective layer that safeguards sensitive battery components under demanding conditions.

Chemical Resistance

In battery systems, exposure to electrolytes and other corrosive chemicals presents a significant challenge to material stability. The 3240 epoxy sheet addresses this issue with excellent chemical resistance, maintaining its insulation and structural integrity even when in direct contact with aggressive substances. This resilience prevents degradation, leakage, or contamination, which could otherwise compromise battery performance and safety. Its ability to resist chemical attack extends the durability of the battery assembly, ensuring that both mechanical and electrical properties remain stable in harsh operational environments.

How is it Used in Insulation Pads, Separators, and Structural Components?

Insulation Pad Applications

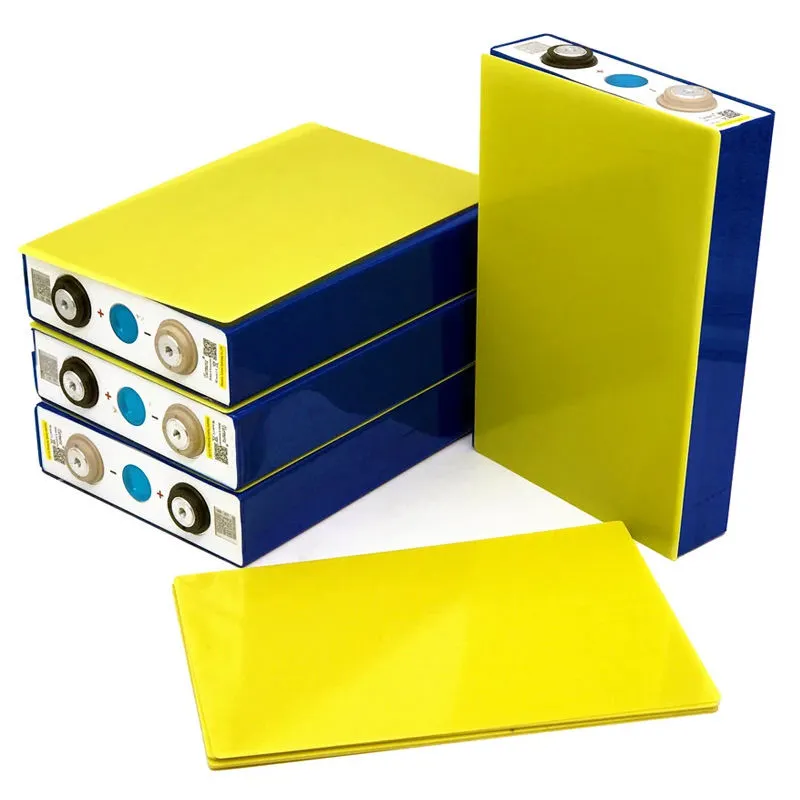

3240 epoxy sheet serves as an excellent material for creating insulation pads within lithium battery packs. These pads are strategically placed between cells and conductive elements to prevent unwanted electrical contact. The precision-cut epoxy sheets provide a reliable barrier, reducing the risk of short circuits while maintaining optimal cell spacing for efficient heat dissipation.

Separator Functionality

In addition to insulation pads, 3240 epoxy sheet finds application in battery separators. These thin, porous membranes play a critical role in preventing physical contact between the anode and cathode while allowing ion flow. The material's stability and resistance to degradation ensure consistent separator performance throughout the battery's lifecycle, contributing to enhanced safety and cycle life.

Structural Support Elements

The high strength-to-weight ratio of 3240 epoxy sheet makes it an ideal choice for structural components within battery packs. It can be machined into various shapes to create support frames, cell holders, and protective casings. These structural elements not only provide physical protection but also contribute to the overall rigidity and dimensional stability of the battery assembly.

Ensuring Thermal Management and Electrical Isolation Within Battery Packs

Heat Dissipation Enhancement

Effective thermal management is crucial for maintaining optimal battery performance and longevity. 3240 epoxy sheet, when incorporated into battery pack designs, can facilitate improved heat dissipation. Its thermal conductivity properties allow for more efficient heat transfer away from cells, helping to maintain consistent operating temperatures and prevent localized hot spots that could lead to performance degradation or safety issues.

Electrical Isolation Strategies

The high dielectric strength of 3240 epoxy sheet enables sophisticated electrical isolation strategies within battery packs. By strategically placing epoxy sheet barriers between cell groups or high-voltage components, designers can create multiple layers of protection against electrical faults. This approach not only enhances safety but also allows for more compact and efficient battery pack architectures.

Vibration and Impact Mitigation

Lithium batteries in mobile applications are often subjected to vibrations and potential impacts. 3240 epoxy sheet, when used in structural components, helps absorb and distribute these mechanical stresses. Its ability to dampen vibrations and resist impact damage contributes to the overall robustness of the battery pack, ensuring consistent performance in challenging operational environments.

Conclusion

3240 epoxy sheet stands out as an indispensable material in lithium battery manufacturing, offering a unique combination of electrical insulation, mechanical strength, and chemical resistance. Its versatile applications in insulation pads, separators, and structural components significantly enhance battery safety, performance, and longevity. By facilitating effective thermal management and electrical isolation within battery packs, 3240 epoxy sheet plays a pivotal role in advancing lithium battery technology across various industries, from portable electronics to electric vehicles and renewable energy storage systems.
