High-Frequency Circuit Design: Why Is FR4 Still the Mainstream Choice?

What Electrical Properties Make FR4 Suitable for High Frequencies?

Dielectric Constant and Its Impact on Signal Propagation

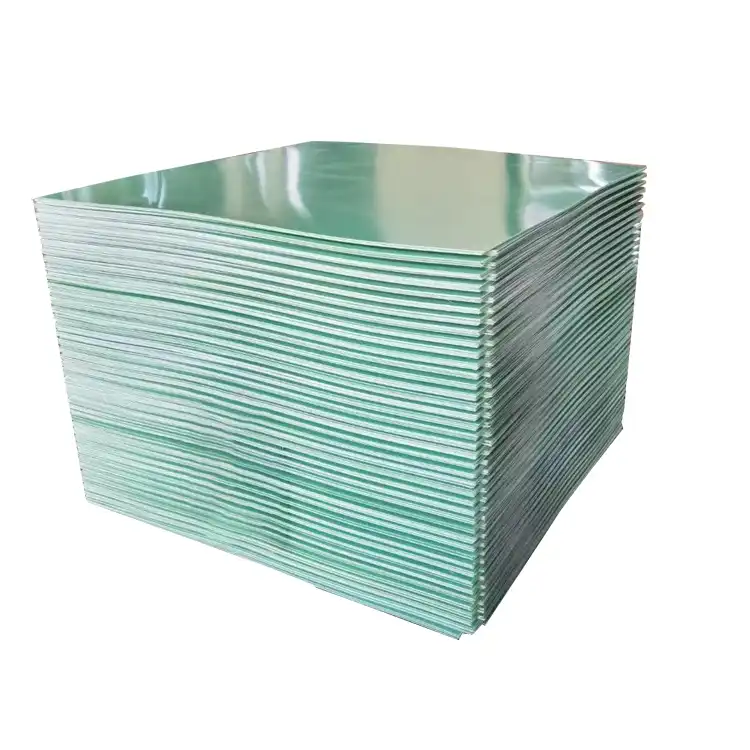

FR4 sheet, a glass-reinforced epoxy laminate material, boasts a relatively stable dielectric constant, typically ranging from 4.2 to 4.8 at 1 MHz. This stability is crucial for high-frequency applications as it ensures consistent signal propagation speeds across the board. The predictable dielectric constant allows engineers to accurately calculate trace impedances and signal delays, which is essential for maintaining signal integrity in high-speed digital and RF circuits. Moreover, the dielectric constant of FR4 remains relatively constant over a wide frequency range, making it suitable for broadband applications.

Low Dissipation Factor and Energy Efficiency

Another key electrical property that makes FR4 sheet suitable for high-frequency circuits is its low dissipation factor. Typically ranging from 0.01 to 0.02 at 1 MHz, this characteristic indicates the material's ability to minimize energy loss as signals propagate through the substrate. A low dissipation factor translates to reduced signal attenuation, which is particularly important in high-frequency designs where maintaining signal strength is crucial. This property allows FR4-based circuits to operate more efficiently, generating less heat and consuming less power, which are critical considerations in modern electronic designs.

Impedance Control and Signal Integrity

FR4's electrical properties facilitate excellent impedance control, a critical factor in high-frequency circuit design. The material's consistent dielectric constant and thickness tolerances allow for precise control of trace impedances, which is essential for maintaining signal integrity and minimizing reflections in high-speed digital and RF circuits. This level of control enables designers to create transmission lines with specific characteristic impedances, typically 50 or 75 ohms, which are standard in many high-frequency applications. The ability to maintain consistent impedance throughout the board contributes significantly to the overall performance and reliability of high-frequency circuits built on FR4 substrates.

Thermal Stability and Signal Integrity Considerations

Temperature Coefficient of Dielectric Constant

FR4's thermal stability is a crucial factor in its suitability for high-frequency applications. The material exhibits a relatively low temperature coefficient of dielectric constant, typically around 50 ppm/°C. This means that the dielectric constant of FR4 remains relatively stable over a wide range of operating temperatures, which is essential for maintaining consistent electrical performance in varying environmental conditions. This stability ensures that signal propagation characteristics do not change significantly with temperature fluctuations, contributing to the overall reliability of high-frequency circuits built on FR4 substrates.

Thermal Expansion and Its Effects on Circuit Performance

The coefficient of thermal expansion (CTE) of FR4 sheet is an important consideration in high-frequency circuit design. FR4 typically has a CTE of about 14-17 ppm/°C in the x and y directions, and around 50-70 ppm/°C in the z direction. While these values are higher than some specialized high-frequency materials, they are still manageable for many applications. Designers must account for this thermal expansion when creating circuits that operate across wide temperature ranges, as it can affect the dimensions of traces and vias, potentially impacting impedance control and signal integrity. However, the widespread use of FR4 has led to the development of design techniques and compensation methods that effectively mitigate these thermal expansion effects in many high-frequency applications.

Heat Dissipation and Thermal Management

Although FR4 is not known for its exceptional thermal conductivity, its heat dissipation properties are generally sufficient for many high-frequency applications. The material's thermal conductivity is typically around 0.25 W/m·K, which, while lower than some specialized substrates, is adequate for many designs when proper thermal management techniques are employed. Engineers often incorporate copper planes, thermal vias, and other heat-spreading techniques to enhance heat dissipation in FR4-based high-frequency circuits. Additionally, the widespread use of FR4 has led to the development of advanced thermal management solutions specifically tailored to this material, further extending its applicability in high-frequency designs that generate significant heat.

Industry Adoption and Standardization of FR4

Manufacturing Processes and Economies of Scale

The widespread adoption of FR4 in the electronics industry has led to highly optimized and efficient manufacturing processes. These established procedures contribute significantly to the material's cost-effectiveness and consistent quality. FR4 sheet production benefits from economies of scale, with large-volume manufacturing reducing per-unit costs. This cost advantage extends to the PCB fabrication process, where FR4's well-understood properties allow for streamlined production workflows. The material's compatibility with standard PCB manufacturing techniques, such as drilling, etching, and plating, further enhances its appeal for high-frequency applications. This manufacturing efficiency not only keeps costs down but also ensures a reliable supply chain, which is crucial for sustaining the production of high-frequency electronic devices.

Industry Standards and Certifications

FR4's long-standing presence in the electronics industry has resulted in comprehensive standardization and certification processes. Organizations such as IPC (Association Connecting Electronics Industries) have developed detailed specifications for FR4 materials, ensuring consistency across different manufacturers. These standards cover various aspects, including electrical, mechanical, and thermal properties, as well as environmental compliance. The adherence to these standards facilitates easier design and manufacturing processes for high-frequency circuits, as engineers can rely on consistent material properties across different batches and suppliers. Furthermore, the extensive certification processes for FR4 materials provide assurance of quality and performance, which is particularly important in high-reliability applications such as aerospace and telecommunications.

Compatibility with Existing Design Tools and Methodologies

The pervasive use of FR4 in high-frequency circuit design has led to its integration into numerous design tools and methodologies. CAD software packages often include predefined FR4 material properties, simplifying the design process for engineers. Simulation tools for electromagnetic analysis and signal integrity have been fine-tuned to accurately model FR4's behavior at high frequencies. This widespread tool support enables designers to predict circuit performance with high accuracy, reducing the need for multiple design iterations. Additionally, the vast body of knowledge and best practices accumulated over years of FR4 usage provides designers with valuable resources for optimizing high-frequency circuit designs. This ecosystem of tools, methodologies, and knowledge contributes significantly to FR4's continued popularity in high-frequency applications, even as new materials emerge.

Conclusion

FR4 sheet continues to be the mainstream choice for high-frequency circuit design due to its balanced combination of electrical properties, thermal stability, and industry-wide acceptance. Its stable dielectric constant, low dissipation factor, and good impedance control capabilities make it suitable for a wide range of high-frequency applications. While FR4 may have limitations in extreme high-frequency or high-power scenarios, its cost-effectiveness, manufacturing efficiency, and compatibility with existing design tools and methodologies ensure its ongoing relevance. As the electronics industry evolves, FR4 remains a reliable and versatile option for many high-frequency circuit designs, striking a balance between performance, cost, and practicality.

FAQs

What is the maximum frequency range for FR4 in circuit design?

FR4 is generally suitable for frequencies up to 5-10 GHz, depending on the specific application and design requirements.

How does FR4 compare to high-frequency laminates like Rogers materials?

While Rogers materials offer superior performance at very high frequencies, FR4 provides a more cost-effective solution for many applications up to several GHz.

Can FR4 be used in multilayer PCBs for high-frequency applications?

Yes, FR4 is commonly used in multilayer PCBs for high-frequency designs, with proper stackup design and impedance control techniques.

Experience the Advantages of FR4 Sheet for High-Frequency Circuits with J&Q

At J&Q, we specialize in providing high-quality FR4 sheets tailored for high-frequency circuit applications. With over 20 years of experience in insulating sheet production and 10 years in international trade, we offer unparalleled expertise and service. Our in-house logistics company ensures seamless delivery worldwide. For more information on our FR4 sheets and how they can enhance your high-frequency circuit designs, contact us at info@jhd-material.com. Trust J&Q as your reliable FR4 sheet supplier, manufacturer, and factory for all your high-frequency PCB needs.

References

Johnson, H. W., & Graham, M. (2003). High-speed digital design: a handbook of black magic. Prentice Hall PTR.

Coombs, C. F. (2008). Printed circuits handbook. McGraw-Hill Education.

IPC-4101: Specification for Base Materials for Rigid and Multilayer Printed Boards. (2018). Association Connecting Electronics Industries.

Ritchey, L. W., & Zasio, J. J. (2003). Right the first time: a practical handbook on high-speed PCB and system design. Speeding Edge.

Hall, S. H., & Heck, H. L. (2009). Advanced signal integrity for high-speed digital designs. John Wiley & Sons.

Bogatin, E. (2010). Signal and power integrity--simplified. Prentice Hall.
