Comparing FR4 and 3240 Epoxy Sheets: Key Differences

What Are the Material Composition Differences Between FR4 and 3240 Sheets

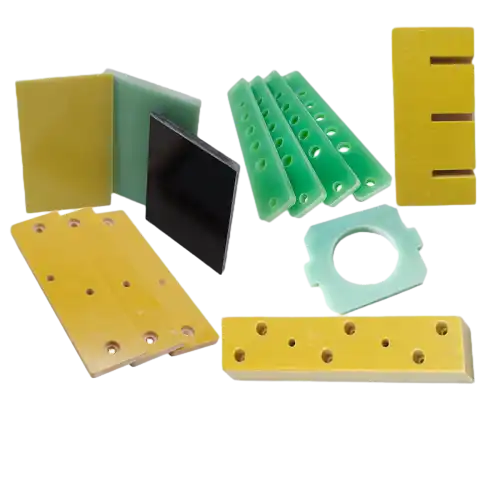

FR4 Sheet Composition

FR4 sheets are fundamentally composed of a composite material where a woven fiberglass cloth is impregnated and bonded with an epoxy resin, forming a robust laminate. This specific combination is pivotal; the continuous fiberglass reinforcement provides exceptional structural integrity, dimensional stability, and tensile strength, preventing the material from cracking or warping under stress. Simultaneously, the thermosetting epoxy resin matrix encapsulates the glass fibers, thereby imparting crucial properties such as excellent electrical insulation, high resistance to moisture absorption, and inherent flame retardancy, which is often certified to meet UL94 V-0 standards. This synergy results in a durable, versatile, and cost-effective material that is the industry standard for printed circuit boards (PCBs) and various electrical insulating applications, balancing mechanical and electrical performance superbly.

3240 Epoxy Sheet Composition

In contrast, 3240 epoxy sheets are constructed from a specific, high-performance epoxy resin system that is reinforced with a continuous woven glass fabric. The key differentiator lies in the formulation of the epoxy resin, which is engineered to withstand significantly higher operating temperatures compared to standard FR4 epoxy. This high-temperature resin system, when cured under specific conditions, forms a dense and rigid matrix that firmly binds the glass fabric. The woven glass reinforcement contributes high mechanical strength, impact resistance, and excellent dielectric properties. Consequently, this specific composition grants 3240 sheets superior thermal endurance, allowing them to perform reliably at elevated temperatures where standard FR4 might soften, along with outstanding mechanical rigidity and electrical insulation, making them suitable for heavy-duty electrical and mechanical applications.

Comparative Analysis

The primary distinction between FR4 and 3240 epoxy sheets resides in their specialized epoxy formulations and the performance characteristics these formulations yield. While both utilize a woven glass fabric for reinforcement, FR4 typically employs a flame-retardant brominated epoxy resin optimized for general-purpose electrical insulation and PCB fabrication. On the other hand, 3240 sheets use a high-temperature, heat-resistant epoxy variant designed for thermal stability. This fundamental difference in resin chemistry directly dictates their thermal performance; 3240 offers a higher heat distortion temperature and continuous operating temperature rating. Consequently, FR4 is the go-to material for standard electronics, while 3240 is preferred for applications involving high thermal stress, such as in motor slot insulation, transformers, and high-temperature industrial environments.

Performance Comparison: Thermal, Electrical, and Mechanical Properties

Thermal Performance

FR4 sheets generally possess a lower thermal endurance compared to 3240 epoxy sheets. A key differentiator is their maximum continuous operating temperature; FR4 is typically rated for temperatures up to approximately 130°C before its mechanical and electrical properties begin to degrade. In contrast, 3240 epoxy sheets demonstrate superior performance, reliably operating in environments where temperatures exceed 200°C. This significant disparity is primarily due to the different resin systems used in their manufacture. Consequently, 3240 material is the preferred choice for high-temperature applications, such as in heavy electrical equipment, motor insulation, and high-power applications, where thermal stability is a critical design parameter, ensuring long-term reliability and safety.

Electrical Properties

FR4 sheets are highly regarded for their excellent electrical insulation properties, which are fundamental to their dominant role in printed circuit board (PCB) manufacturing. They exhibit high dielectric strength, which prevents electrical breakdown under high voltages, and a low dissipation factor, meaning minimal energy loss as heat at high frequencies. While 3240 epoxy sheets also offer good electrical insulating characteristics, they are not typically selected for applications where electrical performance is the sole or primary concern. Instead, FR4's balanced electrical properties make it the industry standard for most electronic circuits, providing reliable isolation between conductive copper traces and ensuring signal integrity across a wide range of applications.

Mechanical Strength

Both FR4 and 3240 epoxy sheets provide excellent mechanical strength, including good rigidity and durability. However, 3240 epoxy sheets generally outperform FR4 in specific mechanical properties, particularly in flexural (bending) and tensile (pulling) strength. This performance advantage becomes especially pronounced at elevated temperatures, where FR4 may begin to soften and lose some structural integrity. The enhanced mechanical stability of 3240 under thermal stress makes it more suitable for demanding applications such as structural supports in electrical transformers, bus bars, and other insulating components that must maintain their dimensional stability and strength while operating in high-temperature environments.

Choosing Between FR4 and 3240 Epoxy Sheets for Industrial Applications

Application-Specific Considerations

Selecting between FR4 and 3240 epoxy sheets depends on the functional demands of the application. FR4 is ideal for printed circuit boards and standard electrical insulation, offering good mechanical strength at moderate temperatures. In contrast, 3240 epoxy sheets excel under high-temperature conditions and heavy mechanical stress, providing superior dimensional stability, tensile strength, and dielectric performance for demanding industrial environments. Understanding the operational conditions, including heat exposure, load, and electrical requirements, is essential to choose the material that ensures long-term reliability and optimal performance.

Cost and Availability Factors

FR4 epoxy sheets are widely available and generally more cost-effective, making them suitable for large-scale or standard electrical applications. 3240 epoxy sheets are more specialized, with higher unit costs, but they deliver enhanced mechanical, thermal, and dielectric performance. In applications exposed to high temperatures, mechanical loads, or harsh environments, the long-term durability of 3240 sheets can offset the initial cost. Evaluating supply chain reliability and lead times is also important, as 3240 sheets may have limited availability compared to the broadly stocked FR4 material.

Environmental and Regulatory Compliance

Both FR4 and 3240 epoxy sheets can be manufactured to meet environmental and safety standards, including RoHS and REACH compliance. FR4 has inherent flame-retardant properties, often making it the preferred choice for fire-sensitive applications. Meanwhile, 3240 epoxy sheets can be produced to meet high-temperature and industrial-grade regulatory requirements. Verifying certifications, material grades, and compliance reports ensures that the selected sheet meets both safety and legal standards, minimizing risks in industrial applications while supporting sustainable and responsible manufacturing practices.

Conclusion

In the realm of industrial materials, FR4 sheets and 3240 epoxy sheets each carve out their unique niches. FR4 stands out for its excellent electrical properties and flame resistance, making it indispensable in the electronics industry. Meanwhile, 3240 epoxy sheets excel in high-temperature environments and applications demanding superior mechanical strength. The choice between these materials hinges on the specific requirements of your project, including thermal, electrical, and mechanical needs, as well as cost considerations and regulatory compliance. By understanding these key differences, engineers and product designers can make informed decisions that optimize performance and efficiency in their industrial applications.

FAQs

1. What are the main applications for FR4 sheets?

FR4 sheets are primarily used in the manufacturing of printed circuit boards (PCBs), electrical insulators, and various electronic components due to their excellent electrical properties and flame resistance.

2. Can 3240 epoxy sheets be used in PCB manufacturing?

While 3240 epoxy sheets have good electrical properties, they are not typically used for PCB manufacturing. FR4 remains the standard material for PCBs due to its specific electrical characteristics and cost-effectiveness.

3. How do FR4 and 3240 epoxy sheets compare in terms of machinability?

Both materials can be machined, but FR4 is generally easier to work with due to its widespread use in the electronics industry. 3240 epoxy sheets may require specialized techniques due to their higher mechanical strength.
