FR4 Epoxy Sheet vs Ceramics: A Cost-Effective Comparison

How Do FR4 Sheets and Ceramics Compare in Thermal Management?

Thermal Conductivity Differences

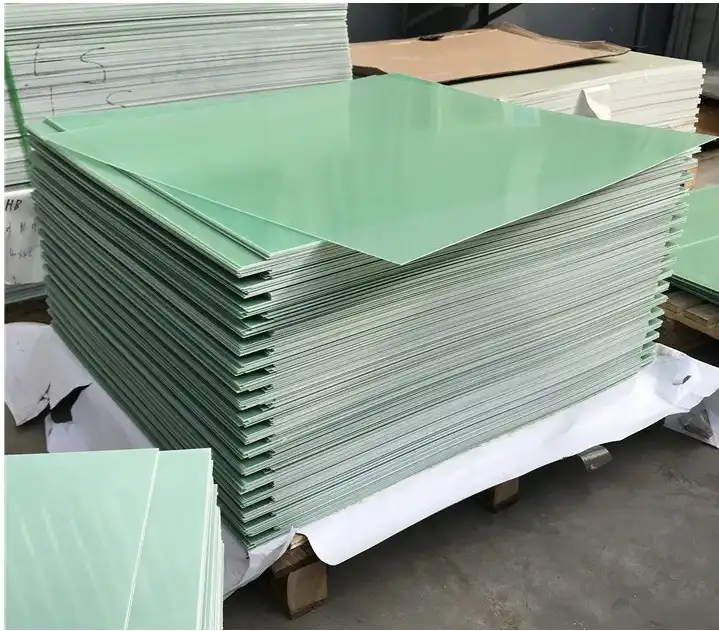

FR4 epoxy sheets and ceramics exhibit distinct thermal conductivity properties. While ceramics generally boast higher thermal conductivity, FR4 sheets offer adequate heat dissipation for many applications. The thermal conductivity of FR4 typically ranges from 0.25 to 0.4 W/mK, which suffices for numerous electronic and electrical use cases. Ceramics, depending on the specific type, can have thermal conductivities ranging from 2 to 400 W/mK, making them superior for high-heat scenarios.

Heat Dissipation Efficiency

Despite lower thermal conductivity, FR4 epoxy sheets can still provide efficient heat dissipation in many situations. Their ability to be easily machined and shaped allows for the integration of heat sinks and other cooling mechanisms. This versatility often compensates for the lower intrinsic thermal conductivity, making FR4 a practical choice for thermal management in various electronic applications.

Temperature Resistance Comparison

Ceramics generally outperform FR4 in terms of temperature resistance. Most FR4 grades can withstand continuous operating temperatures up to 130°C, with some high-performance variants reaching 170°C. Ceramics, on the other hand, can endure much higher temperatures, often exceeding 1000°C. However, for many industrial and consumer electronics applications, the temperature resistance of FR4 is more than sufficient.

Material Properties: Insulation, Rigidity, and Weight

Electrical Insulation Capabilities

FR4 epoxy sheets are highly valued for their exceptional electrical insulation properties, which are essential in preventing current leakage and maintaining circuit integrity. With dielectric strength typically between 20 and 85 kV/mm, FR4 ensures safe and reliable operation in a wide range of electronic and electrical applications. While ceramics also perform well in this regard, their higher cost and fragility make FR4 a more practical solution when high thermal resistance is not the primary requirement. This balance of performance and affordability enhances FR4’s appeal.

Mechanical Strength and Rigidity

FR4 epoxy sheets exhibit impressive mechanical performance, combining high strength and rigidity with relatively low weight. The woven glass fabric reinforcement contributes to excellent dimensional stability, minimizing distortion under mechanical or thermal stress. FR4’s resistance to warping and cracking makes it suitable for structural or load-bearing roles in electronics. Compared to ceramics, which can be stronger in compression but more brittle overall, FR4 provides a more resilient alternative in applications where both toughness and mechanical endurance are needed.

Weight Considerations

One of FR4’s distinct advantages over ceramic alternatives lies in its lower density, typically around 1.85 g/cm³. This makes FR4 significantly lighter than technical ceramics, which often range from 2.7 to over 5.6 g/cm³. In fields where reducing weight is essential—such as aerospace, robotics, and handheld electronics—FR4 helps lower the total mass of components without sacrificing strength or reliability. This favorable strength-to-weight ratio makes FR4 a preferred material when balancing mechanical performance and portability in high-demand environments.

Cost Analysis Across Industrial Application Scenarios

Manufacturing and Processing Costs

The manufacturing process for FR4 epoxy sheets is generally more straightforward and cost-effective compared to ceramics. FR4 can be easily cut, drilled, and shaped using standard machining techniques, while ceramics often require specialized and more expensive processing methods. This difference in manufacturing complexity translates to lower production costs for FR4-based components.

Lifecycle Cost Comparison

When considering the total lifecycle cost, FR4 epoxy sheets often prove more economical than ceramics. While ceramics may offer longer lifespan in extreme conditions, the initial cost savings and ease of replacement make FR4 a more attractive option for many applications. The ability to quickly and affordably replace FR4 components contributes to lower overall maintenance and operational costs in various industrial scenarios.

Application-Specific Cost Benefits

In numerous industrial applications, the cost benefits of FR4 epoxy sheets become particularly apparent. For instance, in the production of printed circuit boards (PCBs), FR4 remains the industry standard due to its balance of performance and cost. In aerospace applications, the weight savings offered by FR4 can lead to significant fuel economy benefits, offsetting any potential durability advantages of ceramics. Similarly, in consumer electronics, the cost-effectiveness of FR4 allows for more competitive pricing without compromising on essential performance characteristics.

Conclusion

While ceramics offer superior performance in extreme conditions, FR4 epoxy sheets emerge as the more cost-effective and versatile choice for a wide range of applications. Their balanced combination of electrical insulation, thermal management, mechanical strength, and weight advantages make them an ideal material for many industrial and consumer products. The significantly lower manufacturing and lifecycle costs of FR4 further cement its position as a preferred material in industries ranging from electronics to aerospace. For businesses seeking to optimize their material choices, FR4 epoxy sheets offer a compelling blend of performance and economy.
