Phenolic Resin and Bakelite in Modern Insulation

Phenolic resin and Bakelite are the most important materials in current industrial insulation technology because they provide great electrical isolation and thermal stability in a wide range of demanding situations. As a thermoset phenolic laminate, the Bakelite sheet gives engineers a stable dielectric strength of more than 12 kV/mm while keeping its shape at very high and very low temperatures. This new and important material is still used in high-voltage systems, electrical switchgear, and generator parts where regular plastics don't meet strict safety and performance standards.

Understanding Phenolic Resin and Bakelite: Foundation of Industrial Insulation

What is Phenolic Resin and How Bakelite Revolutionized Insulation Materials?

When Leo Baekeland created phenolic resin in 1907, it was the first manufactured plastic in the world. It completely changed the electrical insulation business. When phenol and formaldehyde react, they make this thermosetting polymer. It has a cross-linked molecular structure that stays stable under heat and electrical stress.

It is impossible to overstate how important Bakelite was for changing the way industrial insulation was made. Before it was made, builders used natural materials like mica, shellac, and rubber to keep electricity from flowing through them. When exposed to heat and wetness, these organic materials broke down quickly, which caused a lot of equipment to break down. Because bakelite is synthetic, it doesn't have these weaknesses and works the same way in all kinds of situations.

Modern phenolic laminates have changed from Baekeland's original recipe, but they still have the chemical stability that made the material so useful. Modern formulations use advanced fiber reinforcements and specialized additives to improve qualities like resistance to flames and mechanical strength.

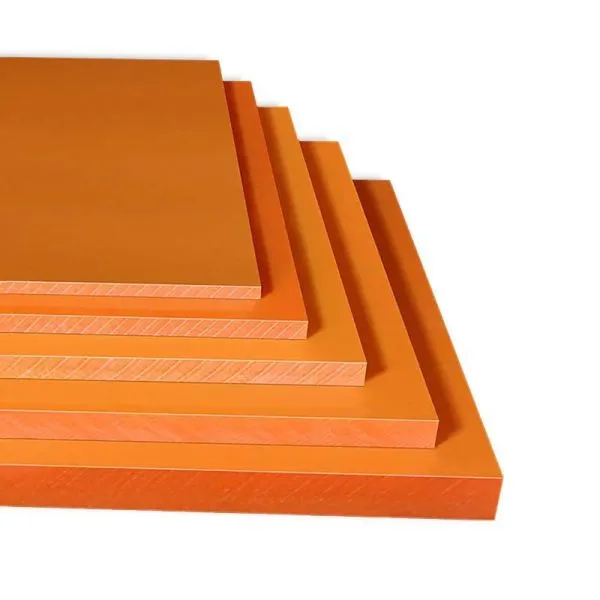

Chemical Composition and Manufacturing Process of Bakelite Sheets

When phenolic paper laminates are made, the curing factors and resin chemistry have to be carefully controlled. A phenolic resin solution is put on paper sheets, and the cellulose fibers soak up the liquid polymer. The layers that were coated are then pressed together by heat and pressure, usually at temperatures between 140°C and 160°C and pressures between 7 and 14 MPa.

Polymerization of the phenolic resin happens during the curing process. This creates a three-dimensional network that holds the cellulose fibers together to form a strong composite structure. This thermoset process can't be undone, so once the product is hardened, it can't be melted or shaped again.

The paper substrate provides mechanical support and dimensional stability, and the phenolic matrix adds chemical protection and electrical insulation. Manufacturers can change the end product's properties to fit different uses by using different types of paper and resin.

Key Properties That Make Bakelite Essential for Modern Applications

Phenolic paper laminates have special qualities that make them useful for solving important technical problems in mechanical and electrical systems. The dielectric strength is usually between 12 and 16 kV/mm, and it provides safe electrical isolation in high-voltage areas where arc-over protection is needed.

The low rate of moisture absorption - usually less than 2% after 24 hours of immersion - makes sure that the electrical properties stay stable in damp circumstances. This quality is especially useful for marine uses and electrical equipment that is used outside, where regular insulating materials would break down quickly.

The tensile strength of the material is over 100 MPa, and its flexural strength is between 80 and 120 MPa. This means that it can hold up under heavy loads in structures. The thermal expansion rate stays low, so the size of the material doesn't change much when the temperature changes.

Thermal Resistance and Temperature Performance Specifications

Standard grades can work continuously at temperatures up to 150°C, and special formulas can work at temperatures up to 180°C for tough jobs. Around 170 to 200°C is the glass transition temperature. This is the point at which the material starts to soften but doesn't melt because it is thermoset.

At 0.2 to 0.3 W/m·K, thermal conductivity stays low, giving thermal insulation as well as electrical isolation. This two-in-one feature comes in handy in places where controlling heat loss is important, like motor insulation systems and generator parts.

The material stays mechanically sound across its temperature range, and its strength traits don't change much up to the highest service temperature. This thermal stability makes sure that it will work reliably for a long time in situations where the temperature changes.

Core Performance Characteristics of Bakelite Sheets in Industrial Applications

Properties of electrical insulation and an analysis of dielectric strength

The electrical performance of phenolic laminates comes from the fact that both the resin core and the cellulose fiber reinforcement are naturally insulating. Volume resistivity is usually higher than 10^12 ohm-cm, which makes it a great way to separate sensitive parts in electrical systems.

At normal frequencies, the dielectric constant of Bakelite sheet ranges from 4.5 to 6.5, and the performance stays pretty stable across the normal working frequency range. This makes sure that the electricity will behave in a reliable way in a wide range of situations, from power frequency transformers to radio frequency circuits.

Electrical switchgear applications have strict safety standards that must be met by arc resistance capabilities. The material doesn't turn into carbon when exposed to a spark, so the insulation stays strong even after a fault. In circuit breaker uses, where the ability to stop an arc directly affects safety, this property is very important.

Chemical Resistance and Environmental Durability

The chemistry of phenolic resins makes them naturally resistant to many industrial chemicals, oils, and fluids that are common in electrical equipment. Weak acids, alkaline liquids, and hydrocarbons can't break down the cross-linked polymer structure.

Environmental age traits show that things are very stable when they are exposed to the elements outside. Over long periods of time, UV radiation, changing temperatures, and being exposed to moisture don't change the electrical or mechanical properties much.

The material doesn't allow fungi or insects to grow, which is important for tools that will be used in tropical or humid areas. This biological protection makes sure that the product works the same way in harsh environments where organic materials would break down quickly.

Mechanical Strength and Machining Guidelines for Processing

Machining properties make it possible to make complex parts precisely using standard industrial tools. When cut with sharp carbide tools, the material cuts cleanly, making smooth areas that can be used in important situations.

For turning activities, the best cutting speeds are between 100 and 200 surface feet per minute. Feed rates should be changed based on the shape of the part and the tolerances that need to be met. Using coolant helps keep the life of the tools and the quality of the surface finish during long machining processes.

To keep delamination from happening during drilling, feed rates and tool shape need to be carefully thought out. Twist drills with shallow helix angles and sharp cutting edges make holes that are clean and have little fiber pullout where the holes leave.

Safety Standards and Compliance with International Regulations

In regulated businesses, reliable performance is ensured by following international safety standards. UL recognition includes different grades for different uses, giving design engineers checked performance information for safety-important uses.

IEC standards talk about how flammable something is, and many types get V-0 or V-1 ratings under UL 94 testing procedures. With these flame resistance values, the material can be used in things where fire safety is very important.

The REACH compliance documentation talks about the rules that apply to chemicals in Europe. This makes sure that environmental responsibility is upheld in all global supply lines. Following the rules makes foreign trade easier and encourages environmentally friendly ways of making things.

Comparative Analysis: Bakelite Sheets vs Alternative Insulation Materials

Bakelite vs Fiberglass Sheets: Performance and Cost Comparison

It is true that fiberglass-reinforced plastics are stronger mechanically, but they tend to soak up more water than phenolic paper laminates. While the glass fiber support has great tensile strength, it can make machining harder because it wears down cutting tools quickly.

Because they are cheaper, phenolic materials are often chosen for uses that don't need to be very strong mechanically. Paper-based laminates are usually easier to make because the raw materials are cheaper and the equipment is simpler than for glass fiber composites.

When it comes to dielectric loss and stability over a range of temperatures, electrical qualities tend to favor phenolic materials. At higher frequencies, glass fiber laminates may have higher dielectric constants and bigger loss factors.

Bakelite vs Epoxy Resin Sheets: Application-Specific Advantages

It's true that epoxy glue systems stick better and shrink less when they cure, but phenolic materials are more stable at high temperatures over time. Most of the time, phenolic resins have higher cross-link densities than epoxy systems. This means that they work better at high temperatures.

Chemical resistance ratings for these groups of materials are very different from one another. Epoxy systems usually work better in acidic situations, while phenolic resins do better in alkaline ones. This difference affects the choice of material based on the needs for chemical exposure.

Processing properties make epoxy systems better for making complicated molded parts, while phenolic laminates work best for tasks that need precise cutting of flat sheet stock. What is the best material for a certain part geometry? It depends on how it is made.

High-Grade vs Standard Bakelite: Quality Standards and Selection Criteria

Premium-grade phenolic laminates have better qualities because they use better resin formulations and controlled fiber orientation. When compared to commercial grades, these materials usually have better surface finish quality and tighter thickness tolerances.

Specifications for electrical grade materials usually call for smaller ionic content and controlled moisture levels while they are being made. These stricter requirements make sure that the dielectric qualities stay the same and lower the chance of electrical failures in important situations.

When it comes to mechanical grade variations of Bakelite sheet, physical stability and machining properties are more important than electrical properties. Different paper weights and resin ratios are often used in these formulas to get the best mechanical performance for structural uses.

When to Choose Bakelite Over Other Phenolic Materials?

When compared to paper-based materials, cotton fabric-reinforced phenolic laminates are stronger mechanically but lose some of their electrical qualities. Which one to use varies on whether the application needs are mostly mechanical or electrical.

Specialty phenolic products solve problems in certain applications by making them more resistant to chemicals or better at conducting heat. The prices for these specific materials are very high, but they work better in difficult situations.

When doing a cost-effectiveness analysis, you need to look at both the original costs of the materials and how well they work in the long run. Phenolic paper laminates often provide the optimal balance of performance and cost for general electrical insulation applications.

Strategic Selection Guide for Industrial Procurement Teams

Defining Your Application Requirements and Performance Metrics

A thorough analysis of the operating conditions and performance standards is the first step in choosing the right materials. Electrical specifications include voltage ratings, dielectric strength requirements, and frequency response characteristics that have a direct effect on the factors used to choose the material.

To make sure the material works well, environmental factors like temperature range, humidity exposure, and chemical contact must be measured. The operating temperature is an important factor in the decision process because it has a direct effect on the service life and safety margins.

When there is mechanical pressure, it is important to carefully look at how stress is distributed and how much fatigue is needed. Specifications for static loads, dynamic loads, and impact resistance affect both the choice of material grade and the design factors for the component.

Thickness Options and Grade Classifications for Different Industries

Standard thicknesses range from 1.5 mm to 50 mm to meet the needs of a wide range of applications. Common thicknesses include 3 mm, 6 mm, 12 mm, and 25 mm. For specific uses that need certain electrical clearance distances, custom thickness specifications are offered.

Based on how well the properties work, grade classifications usually name electrical, mechanical, or general-purpose versions. When it comes to grades, electrical grades focus on insulating strength and low loss, while mechanical grades focus on strength and stability in dimensions.

For industry-specific certifications to meet regulatory standards, you may have to choose a certain grade. Materials that are certified and have full traceability documents are often needed in transportation, aerospace, and medical devices.

Quality Certification Standards and Supplier Verification Process

With ISO 9001 certification, you can be sure that the quality control methods and manufacturing processes are always the same. For uses that need long-term dependability and the same material qualities across production lots, this certification becomes very important.

Each shipment should come with a material test certificate that lists the electrical, mechanical, and thermal qualities for that particular production batch. These certificates make it possible for new inspections to be checked and give quality assurance programs a way to track things.

Audits of suppliers check that they can make things, have good quality control methods, and offer technical help. Direct visits to the facility let you check out the production tools, testing capabilities, and staff knowledge that are relevant to your application needs.

Cost-Benefit Analysis Framework for Long-Term Investment

The total cost of ownership of Bakelite sheet includes the cost of the materials, the cost of handling them, and the cost of maintaining them over time. Higher-quality Bakelite sheet materials may be worth the extra cost because they last longer and need less upkeep.

Performance margins should take into account how much the property will lose value over the working life. Based on long-term aging studies and field experience data, conservative design methods say that derating factors should be used.

When evaluating alternatives, it is important to think about the costs of moving, the qualifications needed, and the risks in the supply chain. When you have a relationship with a seller, they often offer value that goes beyond the price.

Market Solutions and Supplier Considerations for B2B Procurement

Evaluating Manufacturer Capabilities and Production Standards

Finding places to get raw materials, process control systems, and quality assurance methods are all part of evaluating a manufacturer's ability to make things. Companies that have been around for a while usually stick with the same resin sources and use statistical process control to keep batch-to-batch differences to a minimum.

Planning the supply chain and managing inventory are affected by production ability and lead time. Knowing when suppliers make things and how much they can produce helps you plan your purchases better and lower your risk.

Application engineering help, material testing services, and the ability to look into failures are all examples of technical support tools. These services are helpful when making new products and fixing problems with how they work in the field.

Supply Chain Reliability and Global Distribution Networks

Logistics prices and delivery times are affected by geographical distribution, especially for programs that buy things from other countries. Regional stocking locations can reduce lead times and transportation expenses for routine orders.

Qualifying a backup supplier makes sure that the supply doesn't stop if the main supplier goes down. To make sure that secondary sources and products work together, materials need to be qualified and processes need to be validated.

Just-in-time supply systems and vendor-managed inventory programs are two types of inventory management services. These programs can cut down on the need for working capital while still making sure that materials are available on time for production plans.

Custom Cutting Services and Technical Support Requirements

Precision cutting, drilling, and machining to customer specs are examples of value-added processing services. With their specialized tools and knowledge, these services can lower the costs of handling parts internally and raise the quality of the parts.

Material property databases, application guides, and design suggestions are all types of technical documentation help. A lot of technical tools make it easier to improve designs and come up with specifications.

Sample programs let you look at and try materials before committing to large amounts for production. Lead times and the availability of samples affect when products are developed and when materials are qualified.

Bulk Ordering Strategies and Inventory Management Best Practices

More often than not, volume pricing models offer big price cuts for bigger orders. By knowing where prices start to drop, you can make the best decisions about how much to order so that you pay the least overall.

Controlling the temperature and humidity during storage is necessary to keep the qualities of the materials stable over long periods of time. When things are stored correctly, they don't absorb water or change size in ways that could affect how they are machined.

Inventory turnover optimization weighs the benefits of lower carrying costs against the costs of higher volume prices. Economic order number calculations should take into account the cost of storage, the chance of items becoming obsolete, and the need for working capital.

Implementation Excellence: Maximizing Performance and ROI

Proper Installation Techniques and Handling Procedures

Material handling procedures prevent damage during transportation and storage operations. Phenolic laminates require protection from impact damage and edge chipping that could compromise electrical insulation integrity.

Installation techniques must account for thermal expansion and mechanical loading conditions. Proper fastener selection and torque specifications prevent stress concentrations that could lead to cracking or delamination.

Environmental protection during installation includes moisture control and contamination prevention. Surface preparation and cleaning procedures ensure optimal bonding and electrical performance in the final assembly.

Maintenance Protocols for Extended Service Life

Periodic inspection schedules should include visual examination for cracks, discoloration, or surface degradation. Early detection of material degradation allows preventive replacement before electrical failures occur.

Cleaning procedures maintain surface cleanliness and electrical properties throughout the service life. Appropriate cleaning solvents and methods prevent chemical damage while removing accumulated contaminants.

Performance monitoring of Bakelite sheet includes electrical testing and thermal imaging to detect developing problems before catastrophic failures. Preventive maintenance programs significantly extend equipment service life and improve safety.

Performance Monitoring and Quality Assurance Methods

In-service testing protocols verify continued electrical performance and identify degradation trends. Insulation resistance measurements and dielectric testing provide quantitative assessment of material condition.

Documentation systems track material performance history and maintenance activities. This information supports reliability analysis and helps optimize maintenance intervals and replacement strategies.

Failure analysis procedures identify root causes of material failures and support continuous improvement efforts. Understanding failure mechanisms enables better material selection and design optimization for future applications.

Troubleshooting Common Issues and Preventive Measures

Common failure modes include moisture absorption, thermal degradation, and mechanical cracking. Understanding these mechanisms enables development of preventive measures and early warning systems.

Environmental factors such as contamination, vibration, and thermal cycling contribute to material degradation. Proper system design and environmental controls minimize these adverse influences.

Design modifications may address recurring problems through material upgrades, geometric changes, or environmental protection improvements. Continuous improvement processes help optimize long-term reliability and performance.

Conclusion

Phenolic resin and Bakelite materials continue to serve as essential components in modern electrical insulation systems, providing reliable performance across diverse industrial applications. The unique combination of electrical, thermal, and mechanical properties makes these materials particularly valuable for demanding environments where conventional plastics cannot meet performance requirements. Strategic material selection, proper installation techniques, and comprehensive maintenance programs ensure optimal performance and return on investment for electrical systems utilizing phenolic laminate components.

FAQ

What temperature range can bakelite sheets withstand in continuous operation?

High-quality bakelite sheets typically maintain their structural integrity and insulation properties in continuous operation at temperatures up to 150°C (302°F), with short-term exposure capability up to 200°C (392°F).

How do I determine the right thickness of bakelite sheet for my electrical insulation application?

Thickness selection depends on your voltage requirements, mechanical stress, and safety margins. Low-voltage applications under 1kV commonly use 3-6mm thickness, while high-voltage applications may require 10-25mm or custom specifications.

What are the minimum order quantities when sourcing bakelite sheets from industrial suppliers?

Most established suppliers offer flexible MOQs starting from 100-500 kg for standard grades, while custom specifications typically require 1-2 ton minimum orders. Sample quantities are usually available for testing and qualification.

Can bakelite sheets be machined to custom dimensions, and what tolerances are achievable?

Bakelite sheets can be precisely machined using standard industrial equipment. Typical achievable tolerances are ±0.1mm for dimensions and ±0.05mm for thickness, with specialized suppliers offering even tighter tolerances for critical applications.
