Understanding Standard Sizes and Thicknesses for FR4 Epoxy Glass Sheets

Navigating Common Panel Sizes, Thickness Tolerances, and Sheet Formats

Standard Panel Dimensions

FR4 epoxy glass sheets are typically available in several standard panel sizes. The most common dimensions include 18" x 24" (457mm x 610mm), 24" x 36" (610mm x 914mm), and 36" x 48" (914mm x 1219mm). These sizes are widely used in the industry and offer a good balance between manageability and material utilization. Larger panels such as 48" x 96" (1219mm x 2438mm) are also available for projects requiring more extensive coverage or for cutting into multiple smaller pieces.

Thickness Options and Tolerances

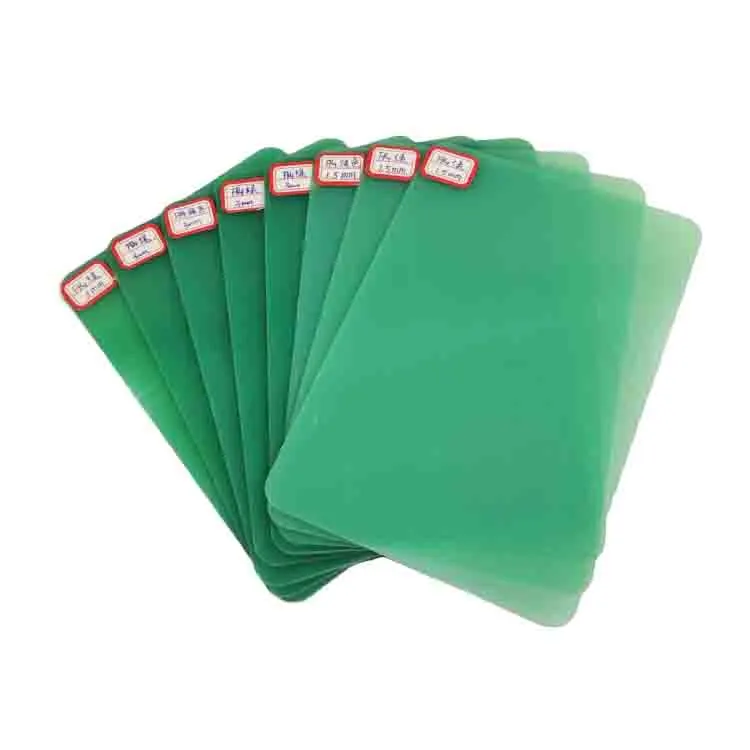

The thickness of FR4 sheets is a critical factor in determining their electrical and mechanical properties. Common thicknesses range from 0.005" (0.127mm) to 0.125" (3.175mm), with popular options including 0.031" (0.787mm), 0.062" (1.575mm), and 0.093" (2.362mm). It's important to note that thickness tolerances can vary depending on the manufacturer and the specific grade of FR4 material. Typical tolerances are around ±10% of the nominal thickness, though tighter tolerances may be available for specialized applications.

Sheet Formats and Customization

FR4 epoxy glass sheets are often supplied in rectangular panels, but other formats are available to suit different manufacturing processes. These include pre-cut circles for specific applications, narrow strips for edge reinforcement, and even custom shapes tailored to unique project requirements. Many suppliers offer cutting services to provide sheets in non-standard sizes, allowing for greater flexibility in material selection and reducing waste in production processes.

How to Choose Between Standard Stock and Custom-Cut Dimensions for Your Project?

Assessing Project Requirements

When deciding between standard stock sizes and custom-cut dimensions, it's essential to carefully evaluate your project's specific needs. Consider factors such as the final product dimensions, manufacturing processes, and any space constraints in your production environment. Standard stock sizes often offer cost advantages due to their widespread availability and economies of scale in production. However, custom-cut dimensions can provide a more precise fit for your application, potentially reducing material waste and simplifying assembly processes.

Cost Considerations

The choice between standard and custom sizes of FR4 epoxy glass sheets also has financial implications. While standard stock sizes are generally more economical, the total cost of your project may be influenced by factors such as material waste, additional processing steps, and inventory management. Custom-cut sheets might have a higher upfront cost but could lead to savings in the long run by optimizing material usage and streamlining production workflows. It's advisable to perform a cost-benefit analysis that takes into account both immediate expenses and long-term operational efficiencies.

Lead Times and Availability

Another crucial factor in choosing between standard and custom dimensions is the impact on project timelines. Standard stock sizes are typically readily available and can be shipped quickly, making them ideal for time-sensitive projects or when maintaining lean inventories. Custom-cut sheets, while offering greater precision, may require longer lead times due to the additional processing involved. Balancing these considerations with your project schedule and production capacity is key to making an informed decision.

The Relationship Between Thickness and Key Electrical/Mechanical Properties

Dielectric Strength and Breakdown Voltage

The thickness of FR4 epoxy glass sheets plays a significant role in determining their dielectric strength and breakdown voltage. Generally, thicker sheets exhibit higher dielectric strength, meaning they can withstand stronger electric fields before breakdown occurs. This relationship is not strictly linear, as other factors such as material composition and environmental conditions also influence these properties. When selecting FR4 thickness for high-voltage applications, it's crucial to consider both the operating voltage and any safety margins required by industry standards or regulatory requirements.

Mechanical Rigidity and Flexural Strength

The mechanical properties of FR4 sheets are closely tied to their thickness. Thicker sheets offer greater rigidity and resistance to bending, making them suitable for applications where structural integrity is paramount. The flexural strength, which measures the material's ability to resist deformation under load, increases with thickness. This relationship is particularly important in applications such as PCB substrates, where maintaining planarity is critical for component mounting and overall device reliability. However, it's important to balance the desire for mechanical strength with weight considerations, especially in portable or aerospace applications.

Thermal Management and Dimensional Stability

Thickness also affects the thermal characteristics and dimensional stability of FR4 epoxy glass sheets. Thicker materials generally offer better thermal insulation and can help manage heat dissipation in electronic assemblies. However, they may also be more susceptible to internal stresses and warping due to temperature fluctuations. Thinner sheets, while potentially less thermally insulative, can offer improved dimensional stability in challenging environments. When designing for applications with significant thermal cycling or extreme temperature ranges, careful consideration of FR4 thickness in conjunction with other thermal management strategies is essential.

Conclusion

Understanding the standard sizes and thicknesses of FR4 epoxy glass sheets is crucial for optimizing material selection in electronic and electrical projects. By carefully considering panel dimensions, thickness options, and their impact on electrical and mechanical properties, engineers and manufacturers can make informed decisions that balance performance, cost, and manufacturability. Whether opting for standard stock sizes or custom-cut dimensions, the key lies in aligning material specifications with project requirements and production constraints. As FR4 technology continues to evolve, staying informed about the latest advancements in material properties and available formats will remain essential for professionals in the electronics industry.
