Why Epoxy Laminate Sheets are Trusted in High-Voltage Applications?

Electrical Insulation Properties and Dielectric Strength

Exceptional Voltage Withstand Capability

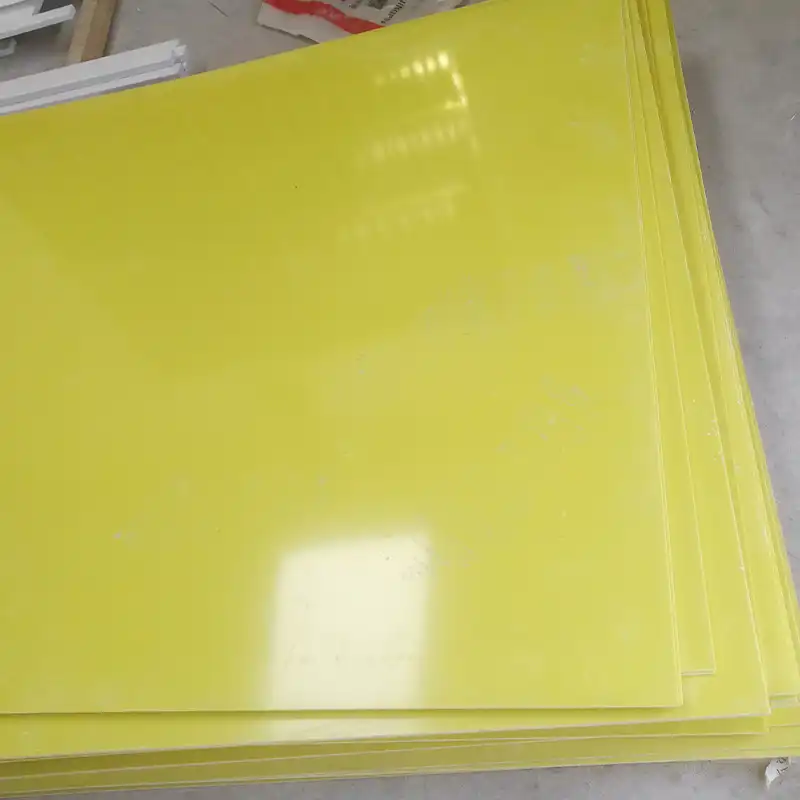

Epoxy laminate sheets exhibit remarkable voltage withstand capability, a critical factor in high-voltage applications. This property stems from the sheet's unique molecular structure, which creates a formidable barrier against electrical breakdown. The tightly cross-linked epoxy matrix, reinforced with glass fibers, forms a dense network that impedes the movement of electrons, effectively preventing current flow even under intense electrical fields. This exceptional insulation performance allows epoxy laminate sheets to maintain their integrity in environments where other materials might fail, making them invaluable in power distribution systems and high-voltage transformers.

Low Dielectric Loss

Another significant advantage of epoxy laminate sheets is their low dielectric loss. This characteristic refers to the minimal energy dissipation that occurs when an alternating electric field is applied to the material. The low dielectric loss of epoxy laminates translates to reduced heat generation and improved efficiency in electrical systems. This property is particularly beneficial in high-frequency applications, where energy losses can significantly impact overall system performance. By minimizing these losses, epoxy laminate sheets contribute to the design of more efficient and reliable high-voltage equipment.

Resistance to Partial Discharge

Epoxy laminate sheets demonstrate excellent resistance to partial discharge, a phenomenon that can lead to gradual degradation of insulating materials in high-voltage systems. Partial discharges are localized electrical breakdowns that occur in small voids or imperfections within the insulation material. The dense, void-free structure of epoxy laminates, achieved through careful manufacturing processes, significantly reduces the occurrence of these discharges. This resistance to partial discharge enhances the long-term reliability of high-voltage equipment, extending its operational lifespan and reducing maintenance requirements.

Heat Resistance under High-Voltage Stress

Thermal Stability at Elevated Temperatures

Epoxy laminate sheets exhibit remarkable thermal stability, maintaining their structural integrity and electrical properties even at elevated temperatures. This thermal resilience is attributed to the high glass transition temperature (Tg) of the epoxy resin system used in their manufacture. The ability to withstand high temperatures without significant degradation is crucial in high-voltage applications, where heat generation is often unavoidable. Epoxy laminates can typically operate continuously at temperatures up to 130°C or higher, depending on the specific grade, ensuring reliable performance in demanding thermal environments.

Low Thermal Expansion Coefficient

The low thermal expansion coefficient of epoxy laminate sheets is a vital characteristic that contributes to their success in high-voltage applications. This property ensures dimensional stability across a wide range of temperatures, preventing warping or distortion that could compromise electrical clearances or mechanical fit. The stability is particularly important in large-scale electrical equipment, where even small changes in dimensions could lead to misalignment or increased stress on components. By maintaining their shape and size under thermal stress, epoxy laminates help preserve the integrity of high-voltage systems, enhancing overall reliability and safety.

Efficient Heat Dissipation

While primarily valued for their insulating properties, epoxy laminate sheets also play a role in heat management within high-voltage systems. The glass fiber reinforcement in these laminates provides pathways for heat conduction, helping to dissipate thermal energy more effectively than some other insulating materials. This heat dissipation capability is crucial in preventing localized hot spots that could lead to premature aging or failure of the insulation. By facilitating more uniform temperature distribution, epoxy laminates contribute to the overall thermal management of high-voltage equipment, supporting longer operational lifespans and improved reliability.

Compliance with Electrical Safety Standards

Adherence to International Electrical Standards

Epoxy laminate sheets are manufactured to meet or exceed a wide array of international electrical safety standards. These standards, set by organizations such as the International Electrotechnical Commission (IEC) and the Institute of Electrical and Electronics Engineers (IEEE), establish rigorous requirements for insulating materials used in high-voltage applications. Compliance with these standards ensures that epoxy laminates possess the necessary electrical, mechanical, and thermal properties to perform reliably and safely in demanding environments. This adherence to global standards facilitates the use of epoxy laminates in diverse geographical markets and applications, providing engineers with a universally recognized and trusted material for their high-voltage designs.

Flame Retardancy and Fire Safety

Many epoxy laminate sheets are engineered with inherent flame-retardant properties, a critical safety feature in high-voltage applications. These flame-retardant formulations typically achieve high ratings in standardized flammability tests, such as the UL 94 vertical burn test. The ability to self-extinguish and resist flame propagation significantly enhances the safety profile of electrical equipment, reducing the risk of fire in the event of electrical faults or overheating. This characteristic is particularly valuable in enclosed electrical cabinets, switchgear, and other applications where fire containment is crucial for overall system safety.

Long-Term Performance and Reliability Testing

To ensure their suitability for high-voltage applications, epoxy laminate sheets undergo extensive long-term performance and reliability testing. These tests simulate accelerated aging conditions, exposing the materials to combinations of electrical stress, elevated temperatures, and humidity over extended periods. Such rigorous testing protocols help predict the long-term behavior of epoxy laminates in real-world applications, providing valuable data on their expected lifespan and performance degradation over time. This commitment to thorough testing and validation underscores the reliability of epoxy laminates and instills confidence in their use for critical high-voltage insulation tasks.

Conclusion

Epoxy laminate sheets have earned their trusted status in high-voltage applications through a combination of superior electrical insulation properties, exceptional heat resistance, and unwavering compliance with safety standards. Their ability to maintain performance under extreme conditions, coupled with their versatility and reliability, makes them an indispensable material in the electrical industry. As power systems continue to evolve and demand ever-higher voltage ratings, epoxy laminates are poised to remain at the forefront of insulation technology, providing the foundation for safe and efficient high-voltage equipment across diverse applications.
