Fr4 Glass Laminates - High-Performance Electronic Insulation Material

Product Descriptions from the Supplier

extraordinary execution for your electronic applications. Made from premium 7628 electronic cloth combined with high-grade epoxy tar, these covers convey extraordinary electrical properties and mechanical quality. JingHong brand Fr4 Glass Laminates meet industry guidelines and give the solidness you require for requesting electronic ventures. Whether you're working on circuit sheets or mechanical hardware, our materials guarantee reliable quality and performance.

Description

Fr4 glass epoxy covers speak to the industry standard for electronic separator materials. Our composite sheets combine woven glass texture with epoxy gum to make a flexible fabric idealize for printed circuit sheets, electrical boards, and mechanical applications.

The normal light green color makes distinguishing proof simple amid fabricating forms. Each sheet experiences strict quality control to guarantee steady electrical and mechanical properties throughout.

Product Availability

Specification	Details
Brand	JingHong
Materials	7628 Electronic Cloth + Epoxy Resin
Color	Light Green
Thickness Range	0.3mm - 100mm
Production Capacity	30,000 tons per year
Minimum Order Quantity	500KG
Standard Sizes Available	1020mm × 1220mm
	1220mm × 2440mm
	1020mm × 2020mm
Custom Sizes Available	1030mm × 2030mm
	1030mm × 1030mm
	1030mm × 2070mm

Key Features

• Superior Electrical Separator: Great dielectric properties for electronic applications
• High Mechanical Quality: Pliable quality of 282MPa guarantees durability
• Temperature Resistance: Keeps up properties over wide temperature ranges
• Dimensional Soundness: Negligible distorting and fabulous flatness
• Chemical Resistance: Withstands common mechanical chemicals and solvents
• Easy Machining: Cuts, drills, and shapes effectively with standard tools

Standards

Our items comply with numerous universal standards:

• UL94V1: Fire retardant classification
• UL94V0: Upgraded fire retardant properties
• NEMA Review: Meets North American electrical standards
• GB/T 3854-2005: Barcol hardness testing standard (Result: 76)

Technical Features: Product Safety Control

Quality Assurance Process:

• Incoming material inspection
• In-process quality monitoring
• Pre-shipment dimensional verification
• Electrical property testing
• Mechanical strength validation

Safety Features:

• Flame retardant properties prevent fire spread
• Non-toxic materials safe for electronic applications
• Consistent thickness tolerance across all products
• Regular third-party testing verification

Product Application

Electronics Industry:

• Printed circuit boards (PCB)
• Electronic enclosures
• Insulation barriers
• Switch panels

Industrial Applications:

• Electrical panels
• Motor insulation
• Generator components
• Transformer parts

Aerospace & Defense:

• Avionics components
• Communication equipment
• Radar systems
• Military electronics

Automotive:

• Electronic control units
• Dashboard components
• Sensor housings
• Battery management systems

OEM Service

We give comprehensive OEM administrations custom-made to your particular requirements:

• Custom Measuring: Any measurement inside our fabricating capabilities
• Special Grades: Altered details for special applications
• Surface Medications: Extra coatings or wraps up available
• Private Labeling: Your brand stamping options
• Technical Bolster: Designing help for fabric selection
• Rapid Prototyping: Speedy turnaround for test production

Our experienced team works closely with you from design to delivery, ensuring your Fr4 Glass Laminates meet exact specifications.

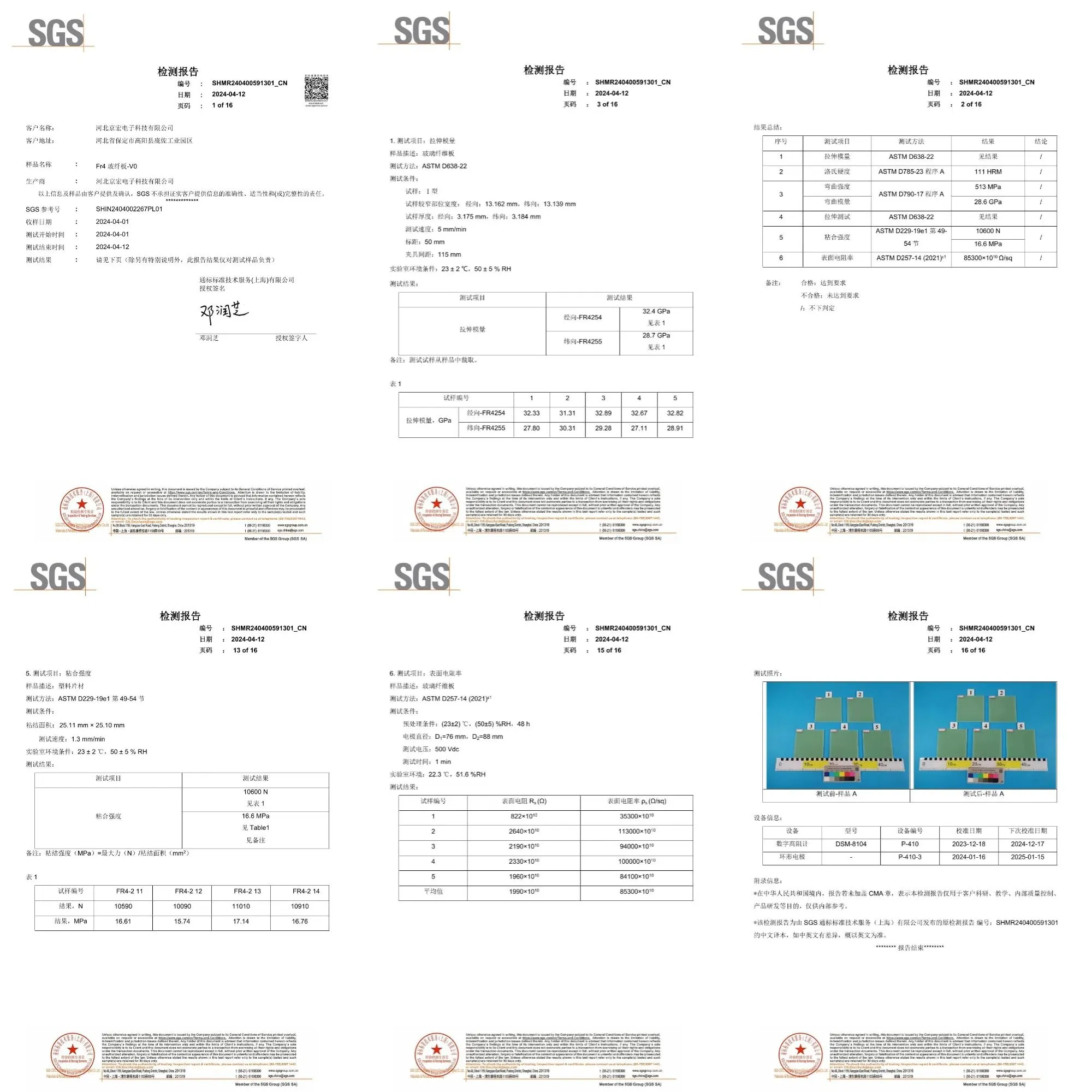

Certification

FAQ

Q: What tolerance can you achieve?

A: Different thicknesses have different tolerance ranges. We inspect all products before shipment to ensure specifications are met.

Q: What's the typical lead time?

A: Standard sizes ship within 1-2 weeks. Custom orders require 2-3 weeks depending on specifications.

Q: Can you provide samples?

A: Yes, we offer samples for testing and evaluation. Contact us for sample requests.

Q: What payment terms do you accept?

A: We accept T/T (Telegraphic Transfer) with flexible payment arrangements for qualified customers.

Q: How do you package the materials?

A: Regular protective packaging with pallet protection for safe transportation via ocean, land, or air freight.

Contact Us

Ready to source high-quality Fr4 Glass Laminates for your next project? Our technical team is here to help you select the right materials and specifications.

Get in touch today:

• Email: info@jhd-material.com
• We respond to all inquiries within 24 hours
• Technical support available for material selection
• Custom quotes provided quickly

Trust J&Q Unused Composite Fabric Bunch Co., Ltd for all your electronic separator fabric needs. We're committed to conveying quality items that surpass your desires.
