Fr4 Insulation Glass Epoxy Sheet

Fr4 Insulation Glass Epoxy Sheet - Premium Electrical Insulation Solution

Product Description from Supplier

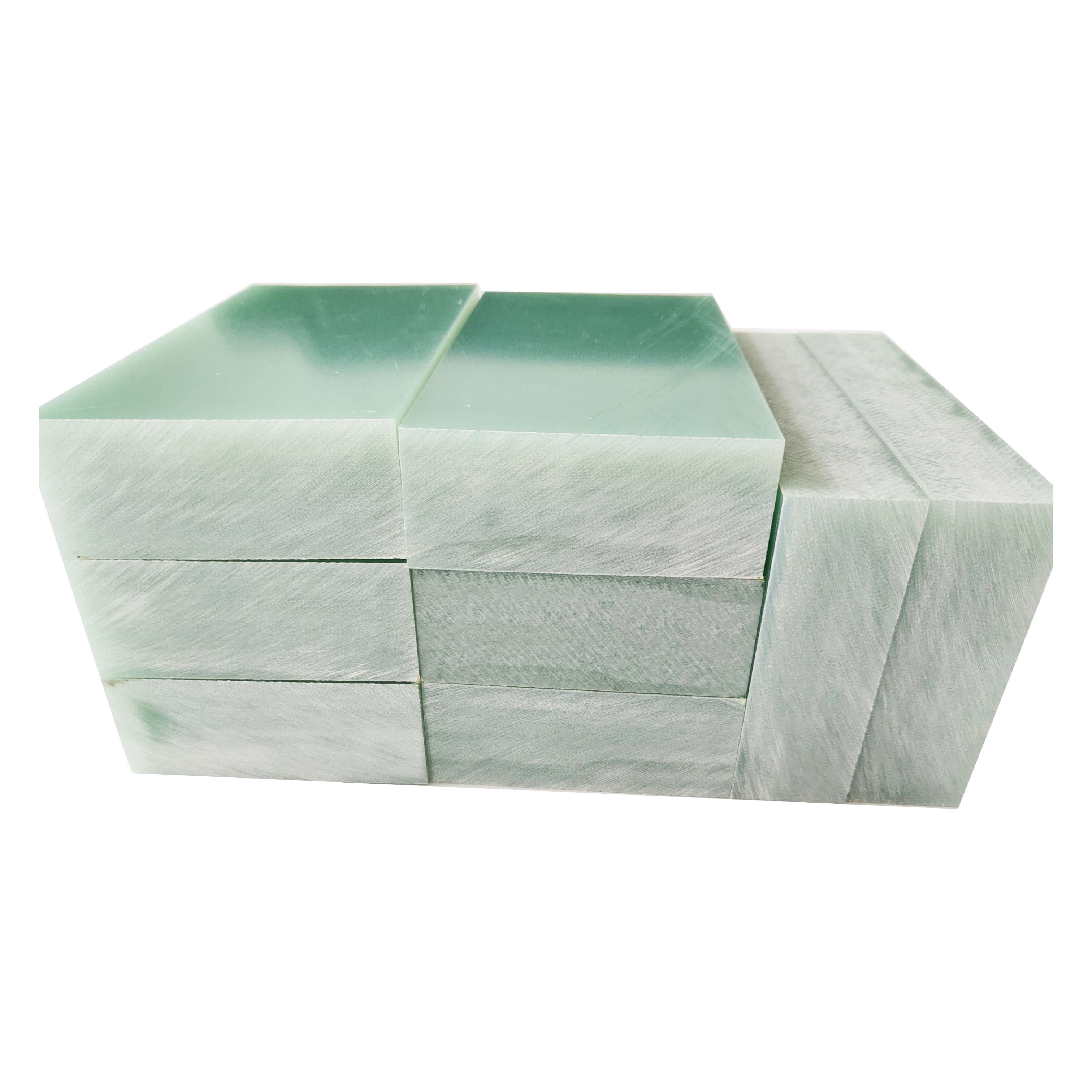

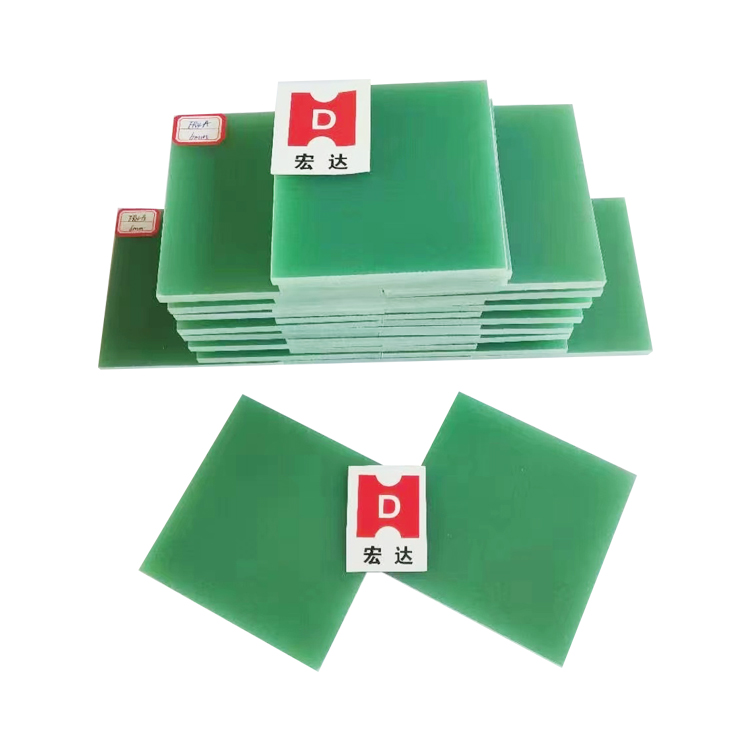

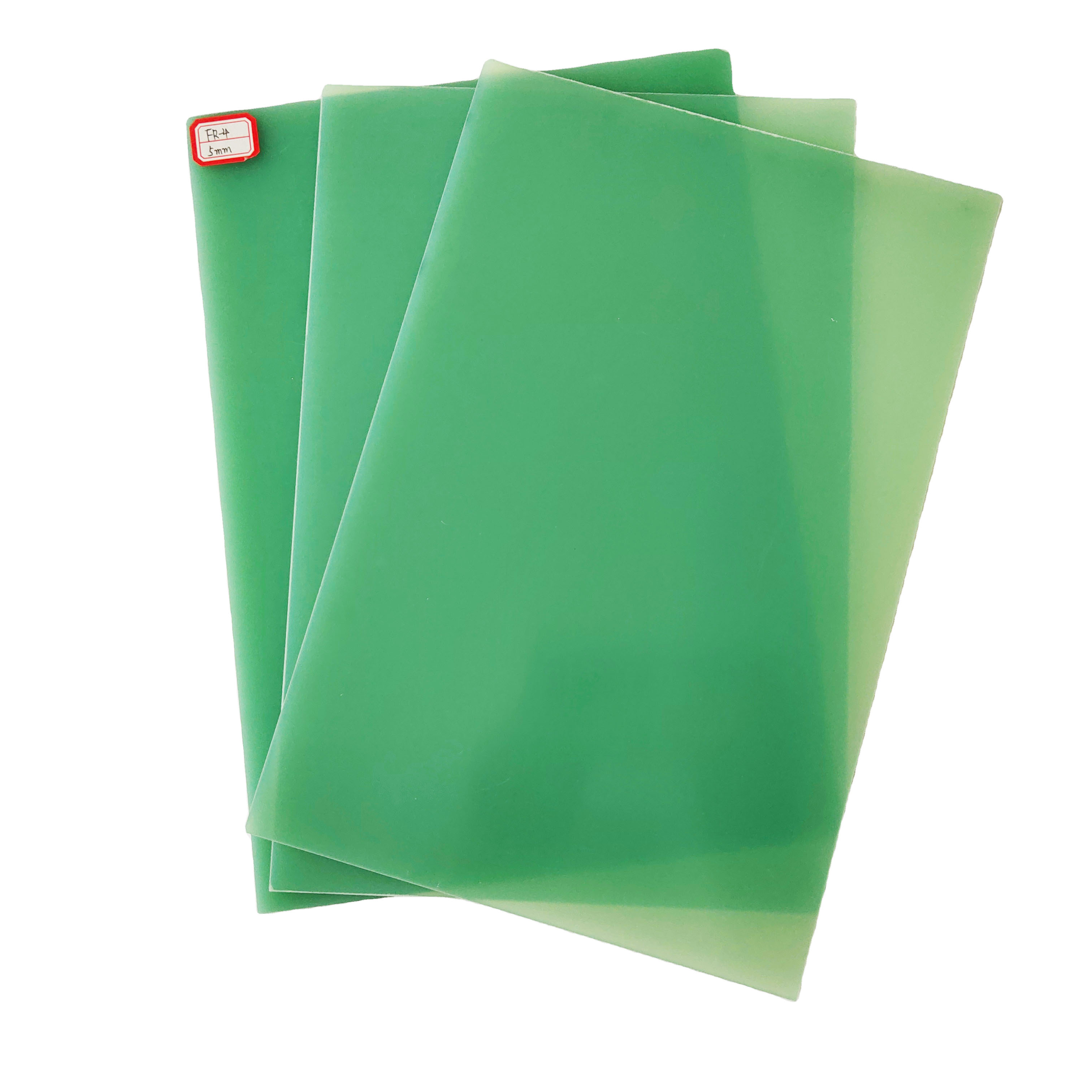

Our Fr4 Insulation Glass Epoxy Sheet conveys remarkable execution for your electronic applications. Made with premium 7628 electronic cloth and high-grade epoxy tar, this item offers prevalent separator properties and mechanical quality. The light green colored sheets give fabulous electrical cover whereas keeping up dimensional solidness over different temperatures. Whether you're working on circuit sheets, electrical boards, or mechanical hardware, our item guarantees reliable execution and long-lasting solidness for your projects.

Product Availability

Specification	Details
Brand	JingHong
Materials	7628 Electronic Cloth + Epoxy Resin
Color	Natural Light Green

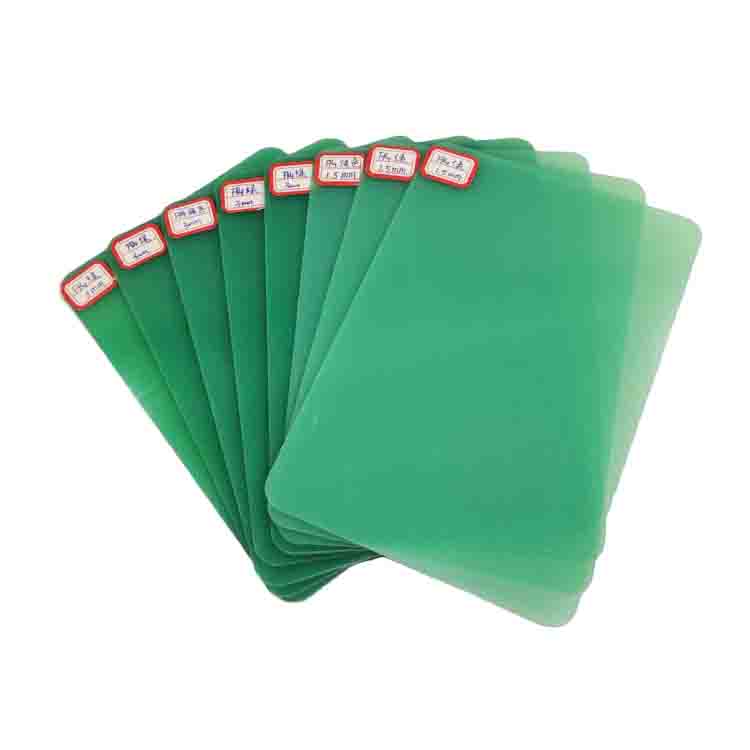

Thickness Range	0.3mm to 100mm
Minimum Order Quantity (MOQ)	500KG
Annual Production Capacity	30,000 Tons
Standard Sizes Available	1020mm × 1220mm,1220mm × 2440mm,1020mm × 2020mm
Custom Sizes	1030mm × 2030mm,1030mm × 1030mm,1030mm × 2070mm

Key Features

Our glass epoxy sheets stand out with these surprising characteristics:

• Superior Cover Properties: Tall dielectric quality secures your electrical components
• Excellent Chemical Resistance: Withstands acids, soluble bases, solvents, and form exposure
• Outstanding Mechanical Quality: Keeps up basic keenness beneath stress
• Temperature Soundness: Performs reliably over wide temperature ranges
• Moisture Resistance: Keeps up separator properties indeed after water immersion
• Easy Machining: Cuts, drills, and shapes effectively for custom applications

Standards

Our items meet thorough universal standards:

• UL94V0: Most noteworthy fire retardancy rating
• UL94V1: Fabulous fire resistance properties
• NEMA Benchmarks: Complies with electrical industry requirements

These certifications guarantee you get materials that meet worldwide security and execution standards.

Technical Features: Product Safety Control

Insulation Performance

• Insulation Resistance (after water drenching): ≥5.0×10⁸Ω
• High Dielectric Quality: Avoids electrical breakdown
• Low Water Retention: Keeps up execution in sticky conditions

Chemical Stability

Your Fr4 Insulation Glass Epoxy Sheet demonstrates excellent resistance to:

• Alkaline solutions
• Acidic compounds
• Various solvents
• Mold and fungal growth

This chemical soundness guarantees long-term unwavering quality in requesting environments.

Fire Safety

Our flame-retardant detailing gives peace of intellect for electrical applications. The UL94V0 rating implies the fabric self-extinguishes rapidly when start sources are removed.

Product Applications

These versatile sheets serve numerous industries:

Electronics Industry:

• Printed circuit board substrates
• Electrical panel backing
• Transformer insulation
• Switch gear components

Industrial Applications:

• Motor slot insulation
• Generator components
• Electrical enclosures
• Test fixtures

Automotive Sector:

• Electronic control units
• Battery pack insulation
• Sensor housings
• Wiring harnesses

OEM Service

We get it that each venture has special necessities. Our experienced group works closely with you to give customized arrangements. Whether you require particular measurements, extraordinary machining, or adjusted properties, we adjust our fabricating handle to meet your correct specifications.

Our adaptable generation capabilities permit us to handle both little custom orders and large-scale generation runs efficiently.

Transportation & Packaging

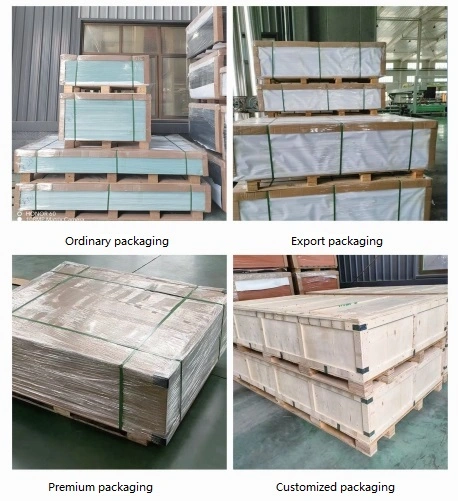

Packaging: Proficient bed security guarantees secure delivery

Transportation Options:

• Ocean cargo for huge orders
• Land transport for territorial delivery
• Air cargo for pressing requirements

Payment Terms: T/T (Telegraphic Transfer)

FAQ

Q: Can these sheets withstand chemical exposure?

A: Absolutely. Our materials resist acids, alkalis, solvents, and biological agents effectively.

Q: What machining operations are possible?

A: You can easily cut, drill, mill, and punch these sheets using standard tools.

Q: How do you ensure consistent quality?

A: We maintain strict quality control throughout production, testing every batch for electrical and mechanical properties.

Q: Can you provide material certificates?

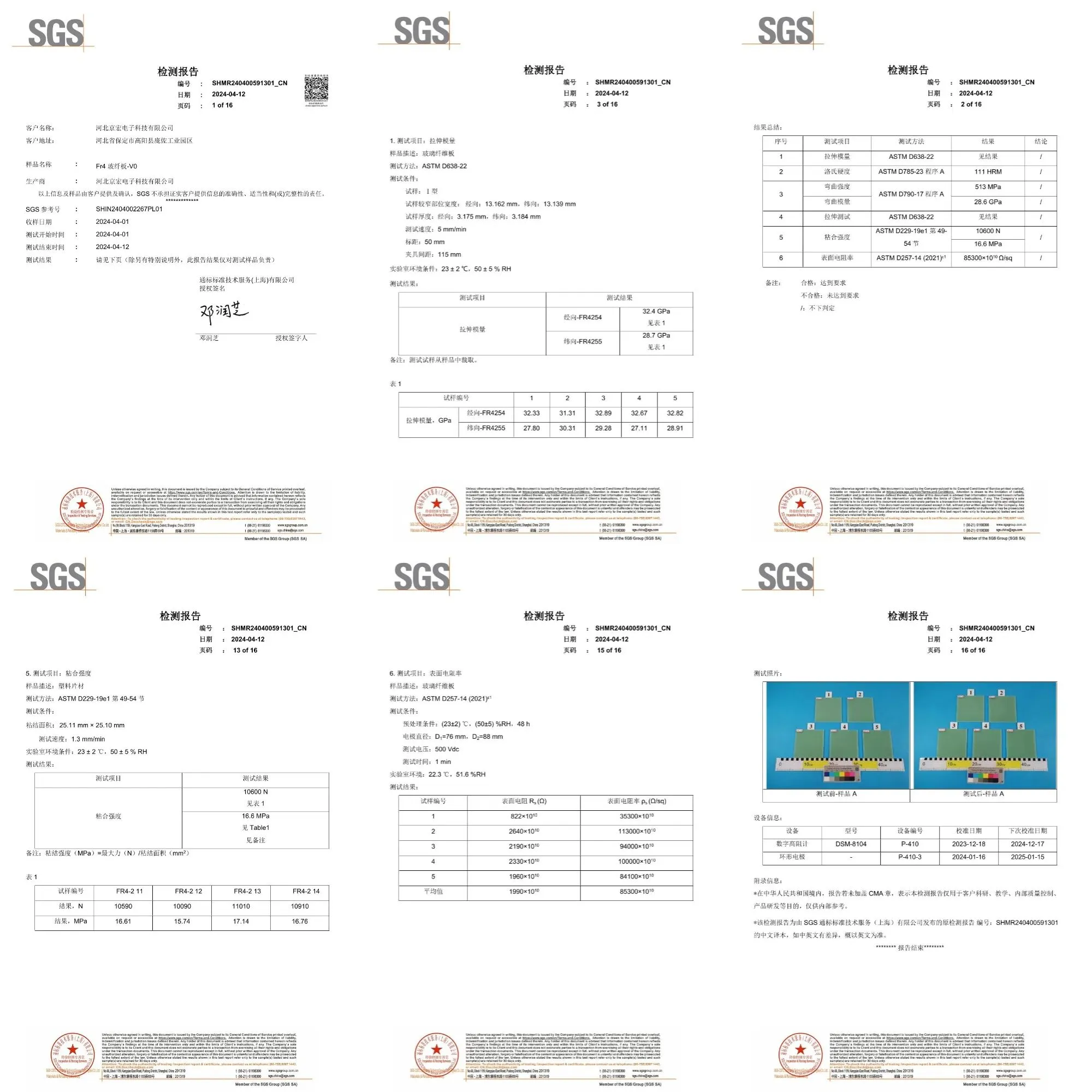

A: Yes, we supply detailed material certificates with every shipment, including test results and compliance documentation.

Q: What's the typical lead time?

A: Standard sizes ship within 7-14 days. Custom orders typically require 2-3 weeks depending on specifications.

Contact Us

Ready to enhance your electrical projects with premium Fr4 Insulation Glass Epoxy Sheet? Our technical team is here to help you select the right materials for your specific applications.

Email: info@jhd-material.com

Contact us nowadays for specialized determinations, custom cites, or tests. We're committed to giving you with dependable separator arrangements that surpass your desires.
