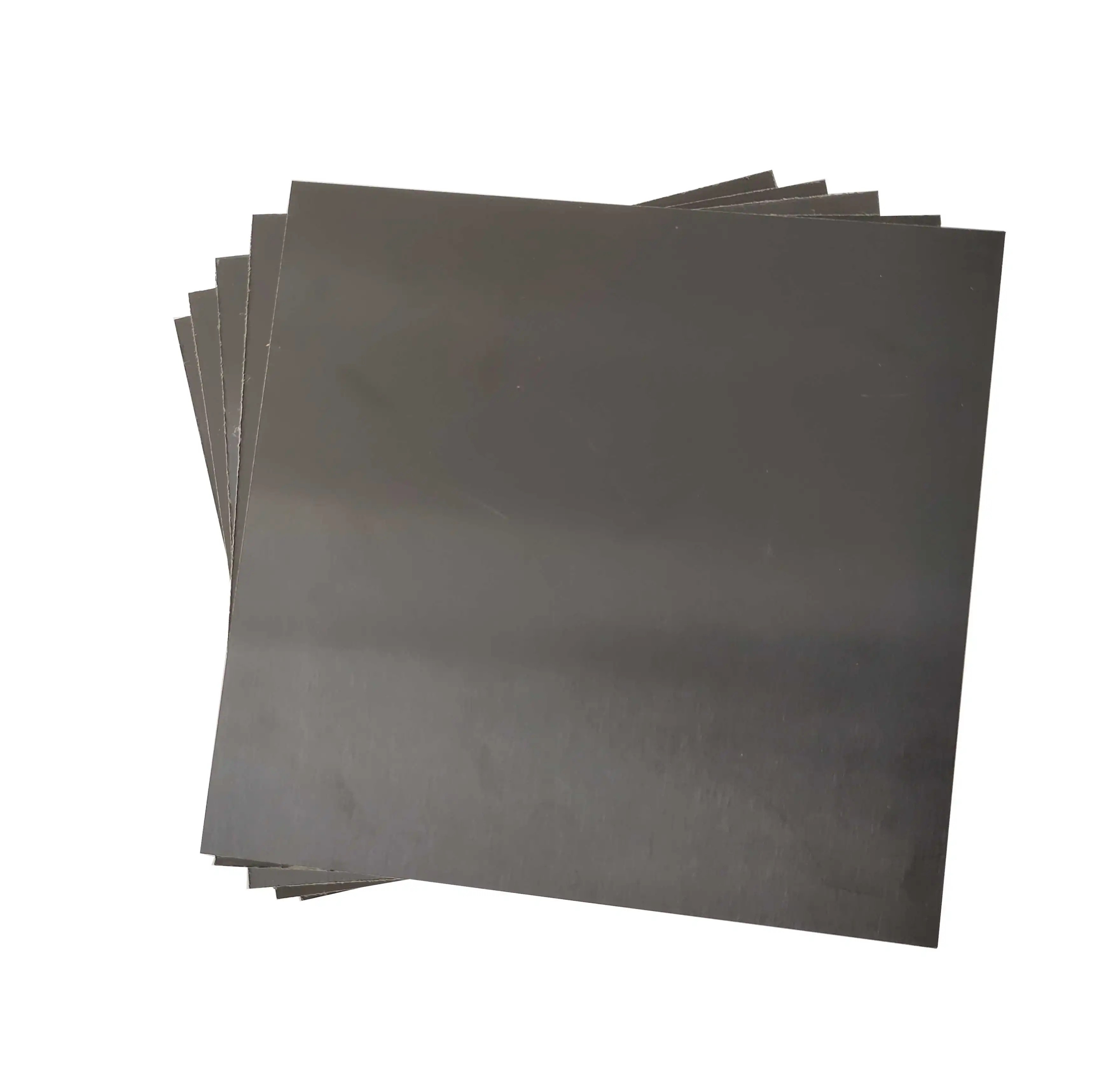

How to Select Phenolic Paper Laminates for CNC Machined Parts

To select phenolic paper laminates for CNC-machined parts, start with the job the part must do. Define the voltage, load, temperature, and moisture it will face. Then match the grade, such as NEMA X, XX, or XXX, to those conditions. Check thickness tolerance, density, and water absorption, and confirm whether you will machine a sheet, rod, or tube. Compare phenolic paper laminates with phenolic cotton, FR4, and 3240 epoxy boards before you decide. Finally, test a sample part and request batch records. This order lowers scrap, protects insulation performance, and makes your quotation request clear.

At J&Q, we have produced and sold insulating sheets for more than 20 years. In this guide, I walk through the choices that engineers and buyers face, from grade and thickness to supplier checks.

Start with Application Requirements and How the Material Is Made

Define the Part's Job and Environment

To begin, figure out what the function is. A bushing is under different types of stress when it is near oil, shaking, or humidity than when it is inside a dry control box. Keep track of the temperature, wetness, chemicals, limits, hole layout, and surface finish. Write them all down. Most types of phenolic paper laminates can handle heat up to 120°C, and some grades can handle up to 130°C for short periods of time. For a part that gets hotter, the material needs to be different. You can use this stuff inside, in a sealed space, or in oil. UV light and tracks are bad for phenolic resin, so it can't be used outside. For companies that make tools, gear, transformers, and electrical equipment, this list is a good place to start.

Know How Resin and Paper Shape Machining

People who make things soak kraft paper or bleached wood pulp paper in phenolic resin, then stack the sheets and heat and press them together to make them hard. This makes a solid that doesn't melt again even when it gets very hot. The density is usually around 1.30 to 1.45 g/cm³. If you use the wrong kind of resin or make sure the layers aren't even, the sheet might not drill, mill, or hold an edge well. Parts that don't have enough resin can chip or come apart when you cut them. You can direct the traits because it is made up of layers. In this case, the dielectric value and strength change both inside and outside of the layers. That will help you figure out how to put the pieces on the sheet.

Confirm Documentation Before Approval

Take care of the paperwork right away to stay in line. You can pick out the UL data, RoHS and REACH statements, inspection records, and material certificates that you need for your project. Before a material can be added to an approved list, engineering and procurement teams often need these files for work in electronics, power, and appliances. Send the drawing and the request so the supplier can tell you what it can do for the grade you choose. Pick whether you need finished parts, rods, tubes, flat sheets, or blocks that you can cut to size. The wait time, the amount of trash, and the price per part all change.

Match Grade and Properties to Machining and Service

Choose Between NEMA X, XX, and XXX

NEMA LI-1 sets the grades for standard paper. Grade X is better for structural parts because it is stronger mechanically, but it doesn't resist electricity as well. Grade XX is the best grade for most things. Grade XXX has the most resin, which makes it the best at keeping water and electricity away. PF CP is the classification used in IEC 60893 for materials that are the same. The difference is very clear when water is added. At 0.062 inches thick, Grade X is close to 4% and Grade XXX is less than 1.3%. It is important to think about Grade XXX when making terminal boards and switchgear parts that will be used in damp places. For simple gaps in dry shelves, Grade X or XX might be enough.

Read the Electrical and Thermal Data

Most of the time, tests done across the laminations in a short amount of time show a dielectric strength of 500 to 700 V/mil for phenolic paper laminates. Follow the steps in ASTM D149 to do the test. Ask your provider what method and direction they used, as well as whether the test was done in air or oil. It's also possible for humidity to change how insulation works. How the part is shaped and how far it creeps are just as important as the number on the data sheet. This material doesn't really stand up to arcs and tracks, so it's good for many switchgear parts but not for heavy-duty use. Make sure you look at different epoxy-glass laminates first if the temperature or voltage in your design is higher.

Plan the CNC Process

Phenolic paper laminates are simple to work with and don't damage tools as quickly as composites made of glass fibers. You can drill, mill, turn, route, slot, and countersink if your tools are sharp and your feed rates are steady. Heavy feeds, bad support, and dull cutters are some of the things that can cause heat damage. Getting rid of chips well makes the cut cooler. To keep the sheet from breaking when cutting it, heat it to between 80°C and 120°C, depending on how thick it is. This helps soften the resin a bit. You can try out a small batch to see how they work before you make a lot of them.

Compare Phenolic Paper Laminates with Other Insulation Sheets

Phenolic Paper vs. Phenolic Cotton

Phenolic cotton, which is usually sold in canvas or linen grades, is much stronger and tougher when it comes to being hit. It is used to make shock-absorbing gears, wear parts, and spacers. Some grades of paper are better at conducting electricity and have a smoother surface. Paper is often enough for parts that don't carry much weight and only keep things warm. It is better to use cotton if you need to hit it a lot or make it hold a lot of weight. Look at both the load case and the drawing before making your choice. Our team can help you decide between the two.

Phenolic Paper vs. FR4 and 3240 Epoxy Board

Most of the time, FR4 and 3240 epoxy glass boards work better in terms of their electrical, thermal, and physical properties. These are the right ones for supporting PCBs, making fixtures that can handle heat, and making motor or switchgear parts that need to be strong. Things that are given in trade cost more, break down faster, and leave less room for dust to escape during cutting. Phenolic paper laminates fill the gap between thin insulation paper and glass-epoxy laminates. That means it can be used for parts that don't need to be very strong, parts that work with low voltage, and parts that connect electronics to the home. Epoxy glass is better than flexible paper grade when the design needs to be stressed by high voltage or kept hot for a long time above the Class E range.

Compare Total Procurement Cost

The budget only has one line for the price of the sheet. Keep track of the time you spend cutting, on tool wear, on scrap, on inspections, on getting licenses, on packing, and on shipping. When you use a cheap sheet that breaks when you drill, the real cost of each part goes up. It could be more expensive per sheet, but a stronger material might last longer and not break down as often. To make it easy to compare prices, ask all of the sellers for the same picture, grade, and range. Small price differences aren't always important when making a lot of something, like motor clamps and device insulation frames. What is more important is steady batch quality and delivery time.

Choose Thickness, Size, and Supply Format

Set Thickness and Tolerance

Select the thickness based on the weight, stiffness, distance of the insulation, cut depth, and space for finishing. Real thickness is not always the useful thickness because pressing changes the thickness. For precise work like PCB backing material, tolerances of about ±0.05 mm are normal. Please check the accuracy, smoothness, alignment, and warpage of the parts before you buy them. If you need to surface grind or sand a part, leave extra stock. If you don't store thin sheets in the right way, they might twist. Instead, lay them flat and keep them dry. Let the sheets rest in the shop for a short time before cutting them to let the temperature and level of wetness settle.

Sheets vs. Cut-to-Size Blanks

Standard sheets of phenolic paper laminates are good for prototypes and jobs where you need to mix and match. When something is made more than once, cut-to-size blanks are helpful because they cut down on waste and speed up the process. They can help you choose a sheet size that works for your layout if you tell them the sizes, limits, number, and how you plan to stack the sheets. Talk to them about both the MOQ and the package at the same time. Setting a blank size can help you plan and get checks for monthly programs that use power or appliances. Seeing prices side by side is also simpler this way.

Rods and Tubes for Round Parts

For bushings, sleeves, rings, and round spacers, rods and tubes are a better place to start. There is waste and extra time when cutting a flat sheet into a round shape. A tube close to the final width on the outside and inside gets rid of a lot of that junk. Before you sign off on the plan, ask the seller what sizes of diameters and wall thicknesses they have. This will help the shop know how much material to cut off. Write the machining margin on the plan. This small step keeps you from having to do extra work and not having enough stock.

Verify Your Selection and Choose a Supplier

Build a Requirement Sheet and Test Samples

Please make a list of everything you need on one sheet. Drawings, 3D files, grades, sizes, tolerances, working temperature, voltage, environment, yearly demand, inspection needs, and certifications are all part of this. Then come the machine models or first pieces. Before making a lot of them, they test the quality of the edges, the accuracy of the sizes, the insulation, and how well the pieces fit together. What you should ask for are test reports, certificates of conformity, records of thickness, and the name of the batch. Different tests, like ASTM D149 for dielectric breakdown and ASTM D570 for water absorption, are useful. So are bending strength with a delamination check and thickness measurement. If there are cracks or spots on the surface, it means the curing wasn't done right.

Avoid Common Mistakes

A lot of the same mistakes keep happening in different tasks. Some people buy something because it has the word "phenolic" in it, they use an electrical grade for heavy mechanical loads, or they don't care about chemicals or humidity. On the shop floor, cracks, burrs, delamination, burning, and scrap are all caused by heavy feeds, dull tools, too little stock, and weak support. It can be hard to understand color, too. Light and oxygen can change phenolic resin from a light brown color to a dark brown or black color. This change is only for looks; it doesn't actually slow things down. For very important safety parts, you should keep an eye on the approval process, which includes prototypes, tests in different environments, and incoming inspection.

Evaluate the Supplier and Decision Factors

You can choose from different grades, and a good supplier makes sure that each batch is the same. They also make sure that technical questions are easy to understand. Check that the raw materials are checked, that you have control over pressing and curing, that the thickness is measured, that there is a final review, and that you can keep track of the product. You should ask about the wait time, export packaging, Incoterms, customs documents, and pallet size when you place an order to export. At J&Q, we bring 20+ years of insulating sheet production and sales, more than 10 years in foreign trade, and our own logistics company, so one team can support material supply and shipping. After that, just use a grid. First, electrical parts need to know how they respond to being wet and how well they insulate. Parts that move need to be strong in both ways. Stock sheets are best for prototypes, and blanks that are the right size are best for repeat programs.

Conclusion

Before you can pick phenolic paper laminates for CNC-machined parts, you need to know about the load, voltage, temperature, and moisture. NEMA's Grades X, XX, and XXX divide duty into three groups: structural, general electrical, and harsh environment. The grades fit well based on tests for dielectric strength, water absorption, and density. Phenolic paper laminates sit between thin insulation paper and FR4 or 3240 epoxy board. Phenolic cotton can handle hits better. The price of the sheet, the thickness limit, the supply format, and the cutting allowance can all change the amount of trash and the cost. Risk is smaller before mass production because of tests like ASTM D149 and D570, sample parts, and records of each run. The best choice for the part is one that is a good mix of cost, performance, and how easy it is to machine.

FAQ

What is the difference between NEMA Grades X, XX, and XXX?

Grade X is good for making parts that need to be strong. Grade XX is the best grade for most things. Since Grade XXX has the most resin, it is the best at stopping water and conducting electricity.

Can phenolic paper laminates be used outdoors?

Most of the time, no. UV light makes chalking happen, and weather outside can make tracks. This material is made to be used inside, in a closed-off area, or in oil.

Do I need to heat the sheet before punching?

Yes, most of the time. You can punch thin sheets while they are still cold, but depending on how thick the sheet is, it is easier to work with after heating it to 80°C to 120°C. Do this to get edges that are smoother and less likely to crack.

Why does the laminate darken over time?

Phenolic resin goes from being light brown to dark brown or black when exposed to light and oxygen. This is just a change for looks; it should not have any effect on how well the mechanical or electrical parts work.

Request Phenolic Paper Laminates Quotes from J&Q for CNC Machined Parts

What kind of phenolic paper laminates do you need for your CNC-made parts? J&Q can help you find them. Send an email to info@jhd-material.com with your drawing, the grade, the quantity, the limits, and the address of where the parts are going. We have been selling phenolic paper laminates for over 20 years. We also know a lot about insulating sheets, international trade, and running our own shipping company, so we can handle everything for you. You can find out more at jhd-material.com.

References

1. NEMA LI 1: Industrial Laminated Thermosetting Products, 1998

2. IEC 60893-1: Insulating Materials – Industrial Rigid Laminated Sheets Based on Thermosetting Resins for Electrical Purposes – Part 1: Definitions, Designations and General Requirements, 2004

3. ASTM D149: Standard Test Method for Dielectric Breakdown Voltage and Dielectric Strength of Solid Electrical Insulating Materials at Commercial Power Frequencies, 2020

4. ASTM D570: Standard Test Method for Water Absorption of Plastics, 2018

5. Handbook of Thermoset Plastics, 2013

6. Machining Technology for Composite Materials, 2012
