Why Phenolic Cotton Clothes Are the Secret Weapon Behind High-Performance Electrical Gaskets

The choice of material is what makes the difference between success and failure when designing electrical gaskets for important industry uses. Phenolic cotton cloth board is the real star of this show because it has a unique mix of electrical insulation, mechanical toughness, and temperature stability. Unlike paper-based options, cotton cloth laminates are resistant to impact and maintain their shape, which keeps systems from breaking down too soon. This composite material is made by injecting phenolic resin into woven cotton cloth under controlled heat and pressure. It solves the problem of brittleness that engineers often face in high-stress situations while still having great dielectric strength.

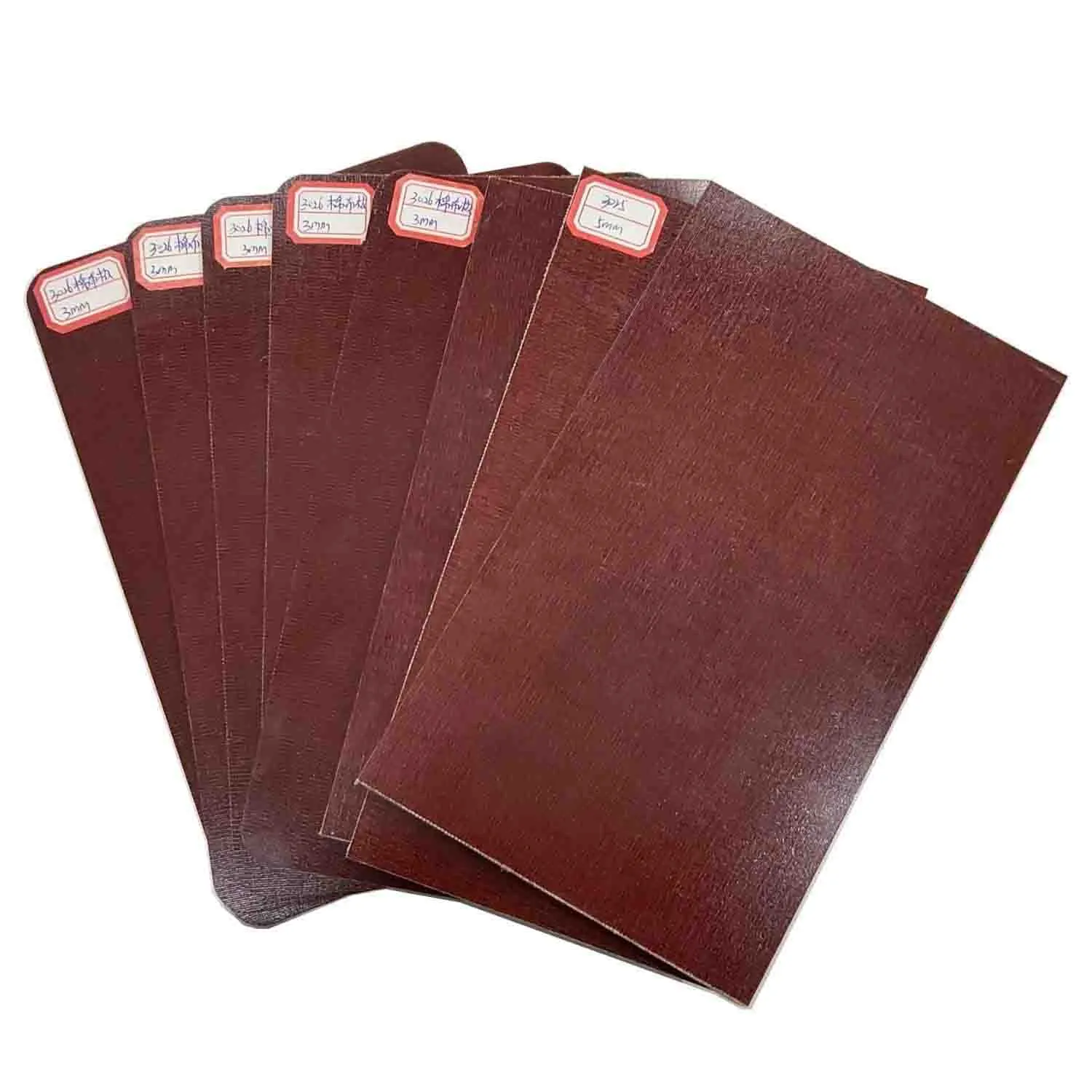

Understanding Phenolic Cotton Cloth Boards: Composition, Properties, and Key Benefits

This material comes from a precise manufacturing process that turns regular cotton cloth into an insulator that can be used in factories. Manufacturers stack cotton cloth on top of each other and soak it in phenolic resin. They then heat and pressurise the whole thing to temperatures above 150°C and pressures of several megapascals. During this thermosetting process, molecules cross-link, which holds the resin to the fabric structure forever.

The Manufacturing Science Behind Superior Performance

Tensile strength is something that cotton fibres just can't match. When the phenolic resin hardens around these fibres, it makes a laminate with better mechanical qualities than solutions made of just one material. The woven structure spreads stress over several areas, which stops cracks from spreading, which usually happens in brittle materials. This is why companies that make electrical equipment always choose certain types of cotton cloth for uses that involve vibration, thermal cycling, or mechanical impact.

Material Grades and International Standards

Specifications for the industrial world recognise different grades that are made to meet specific performance needs. The IEC classification system has four levels: PFCC201, PFCC202, PFCC203, and PFCC204. Each level has a different mix of electrical, mechanical, and heat properties. These materials are labelled by NEMA as Grade C (coarse weave) and CE (fine weave). This lets buying teams match the properties of the materials to the needs of the applications. Understanding these names keeps you from making expensive mistakes in the definition stages of component design.

Core Material Advantages

Cotton cloth laminates are essential for tough jobs because of the following features:

• Mechanical Resilience: Its crosswise tensile strength is about 40% higher than that of regular phenolic papers, which means it can be used in load-bearing shielding applications. This strength retention stays the same from -40°C to 120°C, so it can be used in places where seasonal changes or working heat cycles put stress on the material.
• Stability of the dielectric: The voltage breakdown resistance is usually between 15 and 20 kV/mm, which is enough for most low to medium voltage uses. The material keeps its insulating properties even when it comes into contact with water, oils, or common industrial solvents. This lowers the number of field failures caused by external contamination.
• Machinability: Unlike ceramics or glass-reinforced composites, cotton cloth laminates can be machined in a way that is predictable. CNC milling, drilling, and laser cutting all make clean edges that don't delamination. This lowers the amount of scrap during gasket manufacturing and the cost of the part as a whole.

As a whole, these characteristics of phenolic cotton cloth board fix problems that electrical engineers have had for decades. The material can handle vibrations, runs quietly in friction uses with little lubrication, and can handle chemicals that break down other materials. Certification under UL recognition (E310670) and compliance with ROHS and REACH rules make sure that the product is accepted by regulators in all global markets.

We explain why phenolic cotton cloth boards are great for making high-performance electrical gaskets.

Unknown to most people, electrical gaskets protect against arc flaws, thermal runaway, and insulation breakdown. Many possible materials can't be used because these parts have to provide electrical separation, thermal management, and mechanical sealing all at the same time.

Thermal Management in Confined Spaces

Transformers, switchgear boxes, and motor housings all produce a lot of heat that breaks down materials faster. Cotton cloth laminates have a low thermal conductivity that is low enough to successfully insulate and high enough to keep hot spots from damaging nearby parts. The heat resistance of the material lets it work continuously at temperatures up to 120°C without losing its shape or properties. This means that maintenance intervals are longer and unexpected downtime is less likely to happen.

Electrical Insulation That Withstands Real-World Stress

Measuring dielectric strength in a lab only gives you one piece of information; for confidence in the field, you need more. Even if oils, dust, or moisture condensation get on the surface of cotton cloth phenolic boards, they still keep their insulating qualities. The performance steadiness comes from the hydrophobic resin matrix in the material, which doesn't soak up contaminants but instead sheds them. This resistance to contamination is very helpful for power distribution equipment that works in industry settings.

Mechanical Stability Under Continuous Vibration

When machinery or mobile equipment is turning, the vibrations put a lot of stress on the gaskets. Under these conditions, paper-based phenolics wear down and break, making electrical paths through the cracked insulation. The fiber-like structure of cotton cloth laminates absorbs vibrational energy through internal damping, which keeps the structure's stability over long service lives. When automotive part suppliers switched from paper to cotton cloth grades for gaskets used in electric car battery packs, the gaskets lasted more than 200% longer.

Comparative Performance Evidence

OEM data from companies that make industrial machinery shows trends that are very telling. The average time between failures for switchgear assemblies with cotton cloth gaskets was about 60% longer than for similar units with paper-based insulators. The better quality comes from better physical stability—cotton cloth laminates keep thickness tolerances within ±0.05mm across temperature cycles, which stops the problems with compression set that happen with softer materials.

Comparative Analysis: Selecting the Best Phenolic Board for Electrical Insulation Needs

When choosing a material like phenolic cotton cloth board, you need to know how to balance performance, cost, and compatibility with other production processes. In the electrical gasket market, there are a lot of different insulation materials, and each one has its own benefits.

Phenolic Paper Boards Versus Cotton Cloth Laminates

Phenolics made from paper are less expensive per kilogram and have a good enough dielectric strength for static uses. But because they are mechanically fragile, they can't be used in places where there is a lot of impact, shaking, or temperature change. When compared to paper grades, cotton cloth options have about three times the impact strength and twice the bending strength. This toughness makes the extra cost of the material worth it in situations where replacing a gasket means shutting down machines or putting people's safety at risk.

Fiberglass-Reinforced Composites

FR4 epoxy boards are standard in PCB uses because they have great electrical properties and can handle heat well. Because they are brittle and rough to machine, gaskets are hard to make, especially for designs that need tight tolerance punching or complicated forms. It is easier to predict how cotton cloth laminates will machine, the tools wear out less quickly, and the edge profiles are cleaner. These practical benefits lower production costs even though the materials are about the same price.

Thickness and Customization Options

Standard sheet widths range from 0.5 mm to 50 mm, so they can be used for a wide range of design needs. Thin sheets are good for uses that need to take up little room, while thicker materials are better for applications that need more strength and heat dissipation. Engineers can make designs better with custom thickness making that doesn't hurt performance or overestimate material volume. This adaptability helps with lean production by getting rid of the need for extra bonding steps or wasteful materials.

Procurement Guide: Sourcing High-Quality Phenolic Cotton Cloth Boards for Your Business

To get a reliable source of materials, you need to look at suppliers in more than one way, not just their unit price. Long-term procurement success depends on consistent quality, on-time delivery, and on technical assistance.

Quality Certification Verification

Suppliers with a good reputation use ISO 9001 quality control systems and give material certifications that show they meet industry standards. For each production lot, ask for test reports that prove the dielectric strength, tensile properties, and flame resistance. Materials that don't have the right approval paperwork add risks to the supply chain that are greater than any cost savings.

Lead Time and Logistics Considerations

Standard materials usually ship in two weeks, but custom specifications may take four to six weeks, based on the size of the order and the thickness needs. Integrated logistics support from suppliers makes foreign purchasing easier by taking care of customs paperwork, combining goods and setting up delivery times. When you're supplying various manufacturing sites or running a just-in-time inventory system, this coordination is especially helpful.

Customization Capabilities

Suppliers who offer engineering collaboration for phenolic cotton cloth board are helpful for applications that need particular sizes, surface treatments, or property improvements. Using CNC machining services, applying sticky backing, or precision die-cutting can turn raw sheets into parts that are ready to be installed. This cuts down on the number of steps needed to process the sheets internally and speeds up production. Check to see if possible suppliers offer technical support during the design process. This kind of help can often keep you from making mistakes that cost a lot of money.

Price Structure Transparency

The prices of materials change depending on the price of cotton fibre, the supply of phenolic resin, and the cost of energy, which affects the curing process. Transparent sellers explain how prices are calculated and let customers know ahead of time about changes that are caused by the market. Costs usually go down by 10–20% when you commit to buying more, which is why consolidating suppliers can be good for businesses that buy a lot.

How to Maximize the Value of Your Phenolic Cotton Cloth Board Purchase?

The original investment is only the beginning of the total cost of ownership, which includes handling, installation, and maintenance.

Storage and Handling Best Practices

Keep sheets stored horizontally in climate-controlled areas with a relative humidity of 40 to 60 percent. Too much moisture absorption can briefly change the dielectric properties, and too little moisture can make something more brittle. Keep the protective interleaving in place while the sheets are being stored and moved to keep the surfaces safe from damage and contamination. These steps protect the qualities of the material until it is installed.

Machining Optimization

Carbide tools work best on cotton cloth laminates when they are cut at low speeds. Too fast of feed rates create heat that softens resin, which leads to rough edges and wrong measurements. Using coolant when drilling stops heat from building up and makes tools last longer. Sharing these rules with fabrication teams lowers the amount of scrap and raises the quality of all the parts.

Installation Considerations

For the best sealing, gasket tension should cause the material to bend 10-15% without putting too much stress on the laminate structure. When there is too much tension, stress builds up and can cause cracks, especially where fasteners are located. Follow the torque recommendations given by the equipment's maker, and use thickness readings to confirm compression while the parts are being put together.

Leveraging Technical Support

Suppliers who offer engineering help can help fix problems in the field and make the best material choices for new uses. This help is very useful when changing plans to work with different voltages, temperatures, or environments. Building ties with suppliers that care about their customers' success gives you a competitive edge that goes beyond just lower costs.

Conclusion

Phenolic cotton cloth boards solve the long-standing problem of how to insulate against electricity without lowering their longevity. Because they have a special mix of dielectric strength, temperature stability, and impact resistance, they can't be replaced in situations where a broken part could cause safety issues or expensive downtime. Knowing the different types of materials, how to buy them, and the best ways to install them helps engineering teams make confident specifications and helps purchasing groups find the best materials. The benefits of cotton cloth laminates for reliability are becoming more valuable as electrical systems move toward higher power densities and tougher working conditions. The success of equipment in the coming years will depend on the choices made today about what materials to use.

FAQ

How are cotton cloth phenolic boards different from ones made of paper?

Different types of cotton cloth have knitted fabric reinforcements instead of paper layers, which makes them much stronger and less likely to tear. When paper laminates are put under mechanical stress or thermal cycling, cracks often spread. The cloth structure stops these cracks from spreading. This means that it will last longer in situations where it will be vibrating, bending, or changing sizes due to changes in temperature.

Can these materials handle being around acids and oils?

Cotton cloth phenolic laminates don't lose their properties when they come in contact with most mineral oils, hydraulic fluids, and typical industrial solvents. When the phenolic resin matrix hardens, it makes a surface that doesn't absorb water and instead sheds it. Chemical compatibility depends on concentration, temperature, and exposure time. For application-specific advice, look at material data sheets or contact the supplier's expert support.

What thickness tolerances can makers be sure of?

For sheets less than 10 mm thick, standard production keeps thickness limits of ±0.2 mm. Precision grinding allows for even tighter control. When applications need very precise measurements, custom specs can reach ±0.05mm tolerances. When there are multiple parts to a gasket stack or when precise compression traits are needed, thickness consistency has a direct effect on the quality of the assembly.

Partner with J&Q for Premium Phenolic Cotton Cloth Board Solutions

J&Q has been making electrical insulation materials for more than twenty years and offers both high-quality production and full technical support. We have all the major NEMA and IEC types of phenolic cotton cloth board in stock, and all of it is UL certified and fully compliant with ROHS. We offer integrated logistics services that make foreign shipping easier, cutting down on lead times and making it easier for your procurement team to coordinate. Whether you need standard sheets or custom-machined seal parts, our engineering staff works with you throughout the whole design process to make sure that the best materials are chosen and the best ways to make them are used. Email our team at info@jhd-material.com to talk about your particular needs and get samples of the material to test. We have been a phenolic cotton cloth board supplier for a long time, and we serve the electrical, automotive, and industrial machinery industries. We can give your important projects the consistency and dependability they need.
