Epoxy filament-wound insulation tubes are a big step forward in high-performance electrical insulation technology because they have both great dielectric strength and great mechanical longevity. Precision-wound fiberglass strands filled with high-quality epoxy resin systems are used to make these advanced tubular insulators. The result is cylinder-shaped structures that work well in harsh industrial settings. The epoxy filament-wound insulation tube design offers the best thermal stability, chemical resistance, and structural integrity for electrical power systems, industrial machinery, and specialized manufacturing sectors that need reliable insulation performance in harsh conditions.

Understanding Epoxy Filament-Wound Insulation Tubes Technology

In modern industrial settings, insulation materials need to be able to work in conditions that are getting harsher while still doing their job. Engineers and procurement professionals can make better choices for their specific needs when they understand the basic technology behind these specialized tubes.

What Are Epoxy Filament-Wound Insulation Tubes?

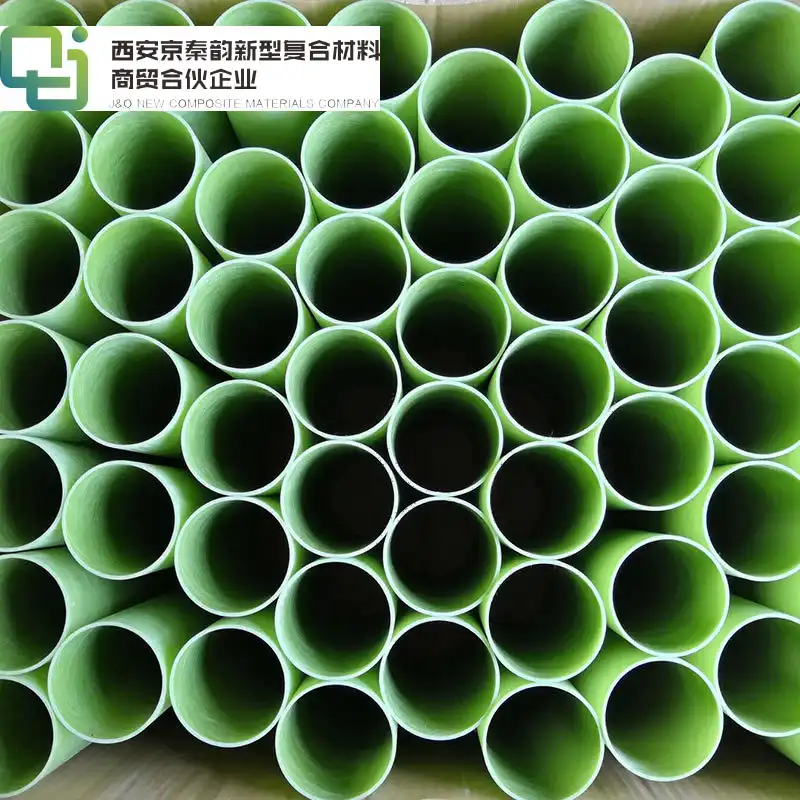

When continuous fiberglass filaments are wrapped around a rotating mandrel while epoxy resin is being applied, a special method is used to make epoxy filament-wound insulation tubes. These are cylinder-shaped composite structures. This way of building makes seamless tube insulators with walls that are all the same thickness and great stability in terms of size. The products that were made have great electrical insulation qualities and amazing mechanical strength, which makes them perfect for uses where regular insulation materials don't work well enough.

These tubes are very different from other insulation goods that are molded or extruded because they have a continuous filament structure that makes them more structurally stable. The epoxy matrix fully bonds with the glass fibers, making a uniform material that doesn't delaminate and keeps its properties even when temperature changes and it's put under stress.

Core Manufacturing Process and Filament Winding Technology

One of the most accurate ways to make high-performance composite tubes is through the filament wrapping process. Continuous glass fiber rovings are put through a resin bath that contains carefully made epoxy systems while they are being made. The fully saturated filaments are then wound onto a precise mandrel while being kept under controlled stress. Computer-controlled machinery makes sure that the fibers are placed consistently and overlap in the right ways.

Controlling the temperature and humidity during the winding process is very important for getting the right amounts of fibers to resin and keeping air from getting trapped. The wound tubes go through a carefully controlled curing cycle in special ovens. The temperature profiles are carefully handled to make sure that the epoxy matrix is completely cross-linked. This process usually takes a few hours and makes tubes whose features stay the same no matter how thick their walls are.

Material Composition and Epoxy Resin Systems

High-quality epoxy filament-wound tubes are made with advanced resin formulas that are made to be used as electrical insulation. Flame retardant chemicals, thermal stabilizers, and UV inhibitors are often added to these epoxy systems to make them work better in tough conditions. The glass fiber reinforcement is made up of long filaments of E-glass that have great electrical and mechanical qualities.

Most of the time, between 25% and 35% of the weight is epoxy glue, and the rest is glass fiber reinforcement. This ratio strikes the best mix between the mechanical and electrical properties. Specialized additives like silica nanoparticles or ceramic fillers may be used in high-end formulations to improve heat conductivity or arc protection.

How Epoxy Filament Winding Technology Works?

The filament winding technology is based on exact geometric rules. The mechanical features of the tube are determined by the fiber angles and winding patterns. Computer-controlled winding tools can change the direction of the fibers from hoop winding, which only winds around the core, to helical patterns, which provide strength in both directions. Most of the time, alternate helical and hoop layers are used to get the best pressure resistance and axial load capabilities.

Monitoring of fiber tension, resin substance, and placement accuracy in real time is a feature of advanced winding systems. This makes sure that the quality is always the same and lets changes be made right away during production. The internal diameter tolerances and surface quality of the finished tubes are directly affected by the shape of the mandrel and how the surface is finished.

Superior Performance Characteristics and Technical Specifications

Because they are made in a special way and use modern materials, epoxy filament-wound insulation tubes have great performance qualities. These qualities make them essential for high-stakes industrial uses where failure is not a choice.

Exceptional Electrical Insulation Properties and Dielectric Strength

Epoxy filament-wound tubes are great at keeping electricity from flowing because their dielectric strengths are usually higher than 20 kV/mm when they are dry. The continuous glass fiber structure gets rid of weak spots that could cause an electrical breakdown, and the fully cured epoxy matrix gives the material great resistance at both the volume and surface levels. These tubes keep their electrical properties even when the temperature changes a lot, and they can handle multiple voltage surges without breaking down.

In high-frequency uses, energy loss is kept to a minimum by the low dielectric constant and loss factor of good epoxy systems. Because of this, these tubes are very useful in power electronics and radio frequency (RF) uses where saving electricity is very important. The even construction makes sure that the electrical qualities are the same all the way through the tube wall, so there are no hot spots that could cause it to fail early.

Outstanding Thermal Resistance and Temperature Rating Performance

Epoxy filament-wound insulation tubes of the highest quality can work constantly at temperatures up to 155°C (Class F insulation) and can handle short-term changes to 180°C. High-performance epoxy systems have a glass transition temperature higher than 160°C. This makes sure that the mechanical properties and stability of the shape stay the same across the entire working temperature range. Thermal cycling tests show that the properties stay mostly the same after thousands of cycles, showing that the stability is very high.

The low rate of thermal expansion (about 20 ppm/°C) keeps the size changes to a minimum when the temperature changes. In places like transformers, motors, and power systems, where heat stress can make regular materials crack or delaminate, this thermal stability is very important.

Mechanical Strength and Pressure Rating Capabilities

The continuous filament structure gives it great mechanical properties, with axial strengths of 300 MPa or higher and hoop strengths of more than 400 MPa. These tubes can handle forces inside of them of up to 20 MPa without losing their shape. The high modulus of elasticity makes sure that the material doesn't change shape much when it's loaded, which is very important in precision uses.

Impact resistance and fatigue efficiency are much better than those of regular insulation materials. The continuous fiber structure evenly spreads weight, stopping cracks from spreading and keeping the structure's integrity even after it has been damaged mechanically. These strong qualities mean that they will last longer and need less upkeep in industrial settings.

Chemical Resistance and Environmental Durability

Epoxy filament-wound tubes are very resistant to most industrial chemicals, such as oils, solvents, and cleaning products that are often used in electronics. The fully cross-linked epoxy material doesn't let water in, so the electrical properties stay the same even in places with a lot of moisture. UV stabilizers in high-end recipes keep them from breaking down when they are exposed to sunlight outside.

According to IEC guidelines, environmental testing shows that properties don't change much after being exposed to salt spray, thermal shock, and conditions that speed up aging. Because they don't react with chemicals, these tubes can be used in tough industrial settings where other materials would break down quickly.

Industry Standards and Certifications Compliance

Epoxy filament-wound insulation tubes of good quality meet or go beyond the requirements of major international standards like IEC 60893, ASTM D229. They are also recognized by UL. These certifications make sure that the quality and performance are always the same and meet the high standards of electrical equipment makers. RoHS compliance ensures safety for the atmosphere and acceptance by regulators in global markets.

Facilities that make high-quality tubes follow ISO 9001 quality management systems that include strict process controls and statistical quality tracking. This methodical technique makes sure that every tube meets certain performance standards and gives the information needed for important uses.

Comprehensive Application Solutions Across Industries

Epoxy filament-wound insulation tubes are important parts in many industries because they are flexible and offer great performance. For engineers, knowing about these uses helps them choose the best tube specs for their needs.

Electrical Power Generation and Transmission Systems

Epoxy filament-wound tubes are used in power plants to insulate generator slots, support bushings, and stop arcs in high-voltage switches. These tubes are great for keeping important electrical parts safe from voltage changes and temperature stresses because they have great dielectric strength and thermal performance. Their dimensional steadiness means that they will work reliably for decades.

These tubes are used by transformer makers to insulate coils and support windings, places where strength and electrical separation are needed at the same time. Engineers can make designs that work best for certain voltage classes and mechanical needs by changing the wall's thickness and width.

Industrial Motor and Transformer Applications

These tubes are used by electric motor makers as slot guards, phase separators, and end winding supports in high-performance motors. The thermal class F grade lets the device work at higher power densities while still keeping safety margins. The smooth inside surface makes it easier to enter wires during production and keeps insulation from getting damaged during assembly.

Epoxy tubes are used as a barrier between the windings and the grounding sections in power and distribution transformers. It works well with oil and doesn't get damaged by heat, so it can be used in oil-filled transformers where other materials might break down over time.

Oil and Gas Industry Insulation Requirements

For both offshore and onshore drilling, you need insulation materials that can stand up to harsh weather and still keep your electricity safe. In harsh naval and industrial settings, epoxy filament-wound tubes protect control systems, pumps, and electrical distribution equipment reliably. Because they don't react with chemicals from oil and saltwater, they are perfect for these tough jobs.

These tubes are used in downhole electrical tools to protect cables and insulate parts where temperatures and pressures are too high for normal materials to work. In important safety systems, the continuous fiber structure protects against mechanical damage while keeping electrical signals separate.

Aerospace and Defense Critical Applications

Materials that work consistently in harsh conditions are needed for military and aerospace uses. In radar systems, communication gear, and power distribution systems, epoxy filament-wound tubes have to meet strict weight, strength, and electrical performance standards. Because they are not magnetic, they don't mess up sensitive electrical systems.

In space, these tubes are used in scientific equipment and satellite power systems that need to be reliable and last a long time. Good epoxy systems can work in vacuums and are resistant to radiation, so they can keep working in space settings.

Custom Solutions for Specialized Industrial Needs

Because manufacturing is flexible, tubes with specific qualities can be made for specific uses. Changing the ingredients in epoxy can make it more resistant to flames, better at conducting heat, or have certain electrical properties. Custom fiber orientations make the mechanical properties work best under certain load situations.

Specialized surface processes can help them stick to encapsulants better or give them certain electrical properties. With these customization options, engineers can come up with the best solutions for tough situations where standard goods can't meet the performance needs.

Key Selection Criteria for Procurement Professionals

To successfully buy epoxy filament-wound insulation tubes, you need to know the important factors that affect their performance and cost-effectiveness. These selection factors help make sure that the best materials are used for each job.

Critical Technical Specifications to Evaluate

The most important things to look at when judging a tube's efficiency are its dielectric strength, thermal class, and mechanical properties. Engineers have to make sure that the electrical features meet safety standards by using the right safety factors for the voltage class. The thermal performance needs to be able to handle both regular and high temperatures, with some room for unexpected situations.

When tubes have to connect to other parts in a precise way, dimensional limits become very important. The uniformity of wall thickness is a key quality sign because it affects both electrical and mechanical performance. For long-lasting performance, it's important to make sure that the chemicals don't react badly with oils, cleaning solvents, and other service fluids.

Quality Assurance and Testing Requirements

Incoming inspection procedures, statistical process control, and regular testing to applicable standards should all be part of complete quality assurance systems. Vendors should give proof that their goods meet the necessary electrical and mechanical property standards. For important uses, traceability paperwork lets you track materials back to the lots of raw materials they came from.

Independent confirmation of performance claims comes from testing by third parties in accredited labs. Auditing supplier facilities on a regular basis makes sure that the quality control and manufacturing methods are always the same. When something goes wrong and could hurt people or the economy, these quality measures become even more important.

Supplier Qualification and Manufacturing Capabilities

When evaluating a supplier, you should look at their technical skills, manufacturing equipment, and quality control methods. Modern computer-controlled filament winding equipment is more consistent and accurate in terms of size than older manual methods. Certification in a quality management system, like ISO 9001, shows that you are dedicated to maintaining quality in a planned way.

Suppliers can help with application building and problem-solving by offering technical support. This help comes in handy when making new apps or fixing problems with how they work. Suppliers that are financially stable make sure that their products are always available and getting help throughout their lifecycles.

Customization Options and Engineering Support

Manufacturing flexibility lets resin formulas, fiber content, and winding patterns be changed to make tubes work better in certain situations. Engineering support helps turn application needs into the best specs and dimensions for materials. Through this technical teamwork, chances to improve performance or cut costs can be found.

With prototyping, you can try out custom ideas before committing to large quantities of production. Delivering prototypes quickly speeds up development projects and cuts down on the time it takes for new goods to reach the market. When it comes to new uses that need specific material properties, these skills become even more useful.

Supply Chain Reliability and Global Distribution

Reliable delivery performance keeps production plans on track and keeps inventory costs as low as possible. Having more than one place to make things gives global businesses more supply security and lower shipping costs. Inventory management services can lower the amount of operating capital that is needed while still making sure that materials are available.

International businesses get help from local distribution networks that offer technical support. This local presence is important for situations where technology problems need to be fixed quickly or where deliveries need to be made right away. Flexibility in the supply chain makes it easier to handle changes in product lifecycles and changes in demand.

Conclusion

Epoxy filament-wound insulation tubes represent the pinnacle of high-performance electrical insulation technology, delivering unmatched combination of electrical, thermal, and mechanical properties for demanding industrial applications. Their superior dielectric strength, thermal stability, and structural integrity make them essential components for electrical power systems, industrial machinery, and specialized equipment where conventional materials cannot meet performance requirements. The continuous advancement in manufacturing technology and material science continues to expand their application potential across diverse industries. With over 20 years of manufacturing expertise, J&Q has established itself as a trusted supplier of premium epoxy filament-wound insulation tubes, providing customized solutions that meet the most stringent quality and performance standards for global industrial applications.

FAQ

What temperature range can epoxy filament-wound insulation tubes withstand?

Premium epoxy filament-wound insulation tubes typically operate continuously at temperatures up to 155°C (Class F insulation) and can handle short-term excursions to 180°C. The glass transition temperature of high-performance epoxy systems exceeds 160°C, ensuring dimensional stability and mechanical properties are maintained throughout the operating range. Thermal cycling tests demonstrate excellent stability with minimal property degradation after thousands of cycles.

How do I determine the correct wall thickness and dimensions for my specific application?

Wall thickness selection depends on the required dielectric strength, mechanical loads, and operating environment. Our engineering team analyzes your voltage requirements, pressure ratings, and mechanical stresses to recommend optimal dimensions. We consider safety factors, applicable standards, and long-term reliability requirements to ensure proper performance throughout the expected service life.

What is the typical lead time for custom epoxy filament-wound insulation tubes?

Standard configurations typically ship within 2-3 weeks, while custom specifications require 4-6 weeks depending on complexity and quantity. Our manufacturing flexibility allows rapid prototyping for development projects, with sample parts available within one week for evaluation purposes. Large production orders may require additional time depending on capacity and complexity.

Can these tubes be manufactured to meet specific industry certifications (UL, IEC, etc.)?

Yes, our epoxy filament-wound tubes meet requirements of major international standards including IEC 60893, ASTM D229, and UL recognition programs. We maintain comprehensive certification documentation and can provide specialized testing to meet specific customer requirements. Our quality management systems ensure consistent compliance with applicable standards.
